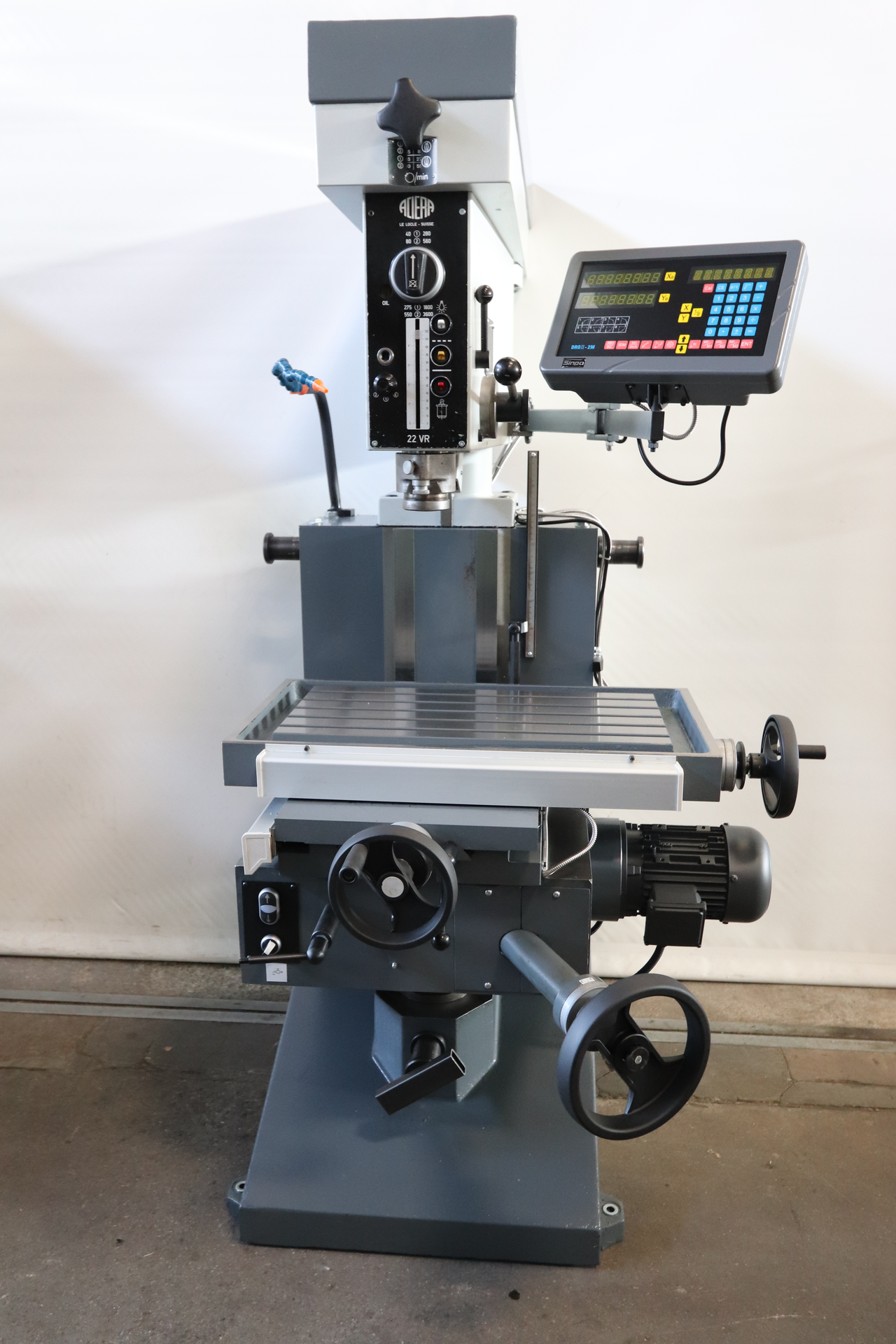

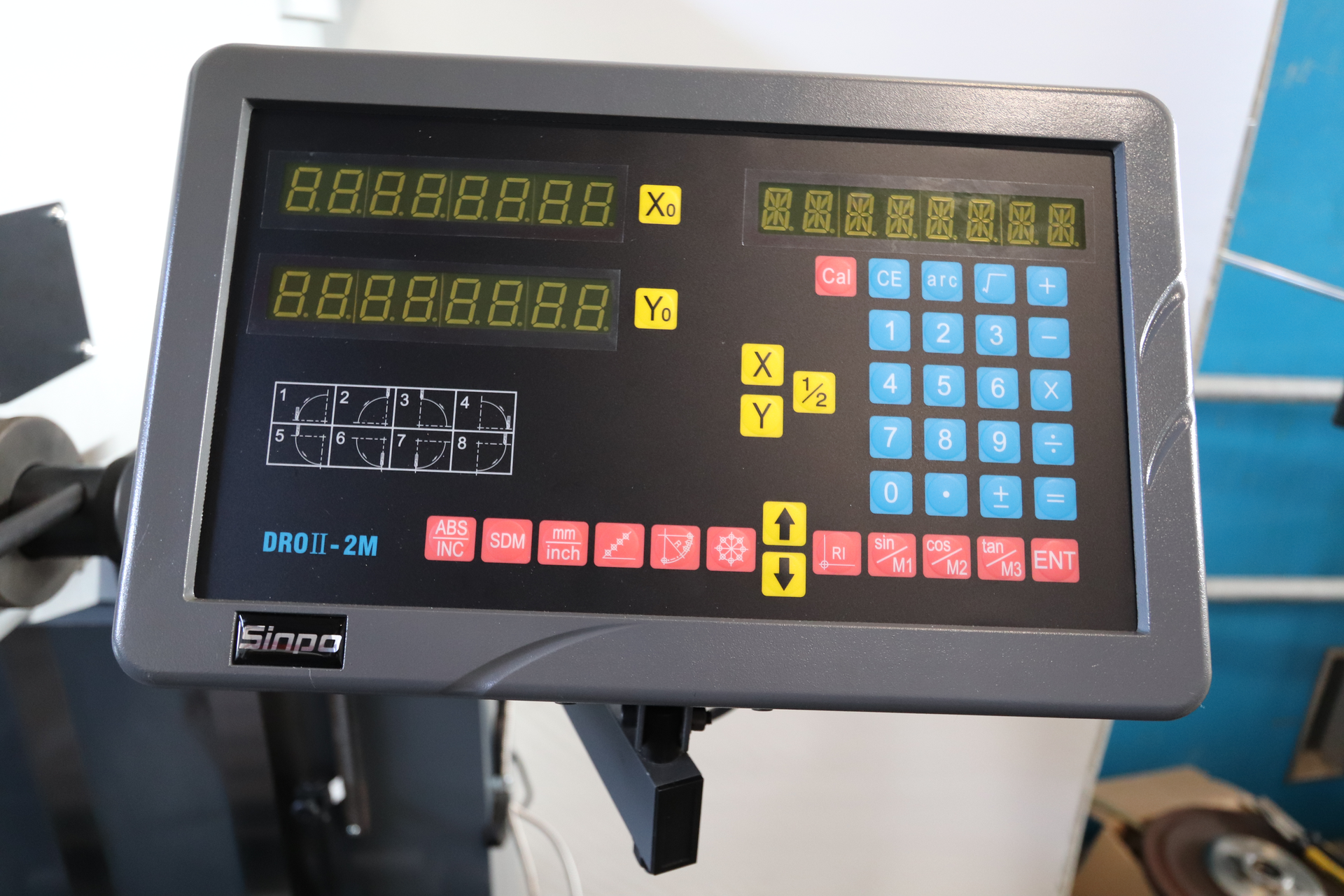

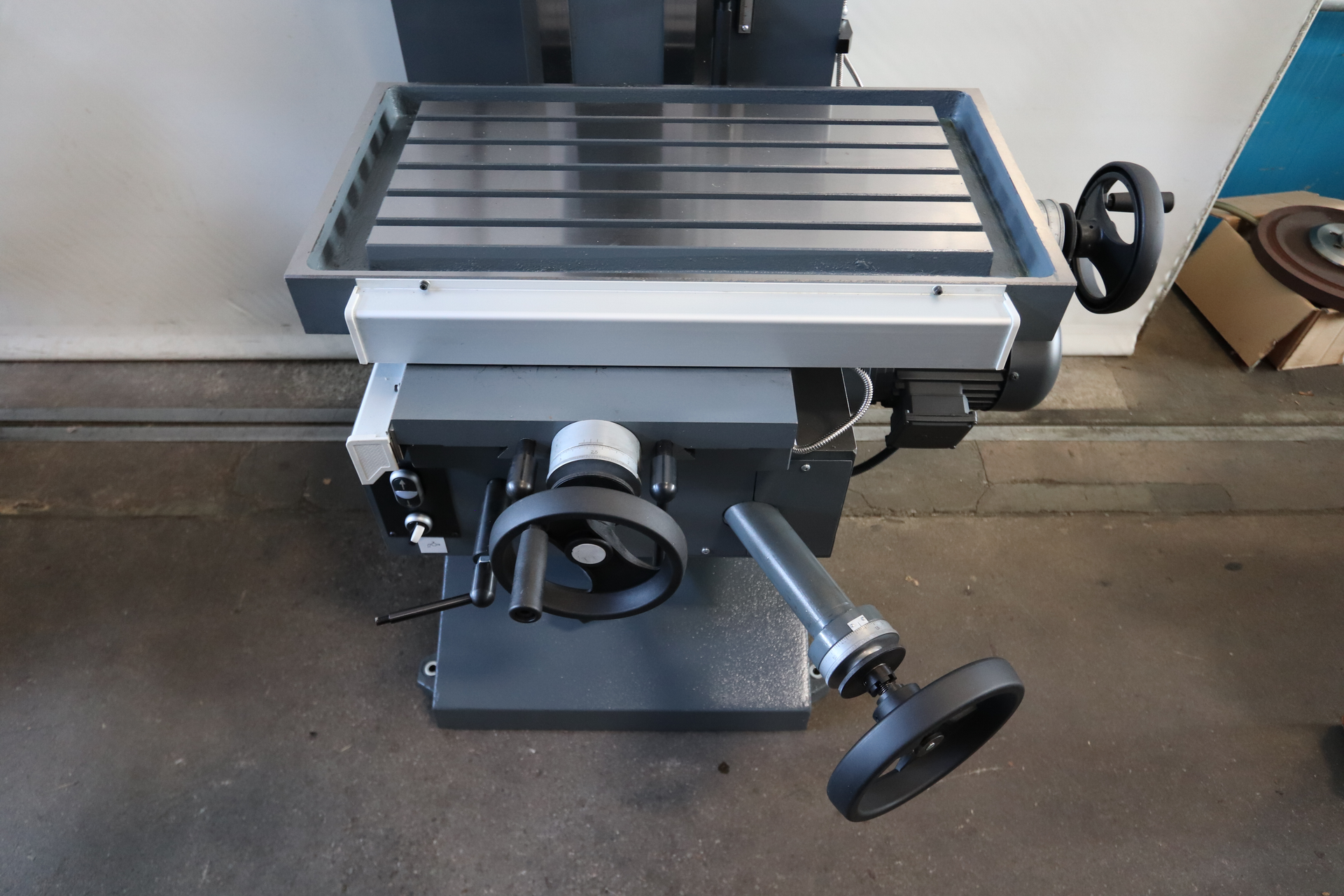

Table length: 700 mm. Table width: 370 mm. Length: 900 mm. Width: 1000 mm. Drill capacity in steel: 22 mm. Drill capacity in cast-iron: 24 mm. Taper in spindle: MT: 3. Depth of throat: 300 mm. Drill depth (spindle stroke): 120 mm. Spindle head adjustment: 300 mm. Longitudinal travel (X-axis): 330 mm. Transversal travel (y-axis): 210 mm. Vertical travel (z axis): 350 mm. from: 40 t/min. up to: 3600 t/min. Voltage 50 Hz 3x: 380 Volt. Spindle motor: 1.0 / 1.5 CV. Machine's weight about: 990 kg. Height: 1800 mm. Digital readout number of axis:: 2. Quick change device: A-30.
X Table travel: 4.000 mm
Y Headstock vertical travel: 3.000 mm
Z, Column in spindle direction: 2.000 mm
W, spindle stroke: 700 mm
Spindle diameter: 130 mm
Spindle diameter: ISO 50
Spindle speed: 4 - 3.000 rpm
Spindle motor, 2 steps, ZF: 41/56 kW
Rota...
