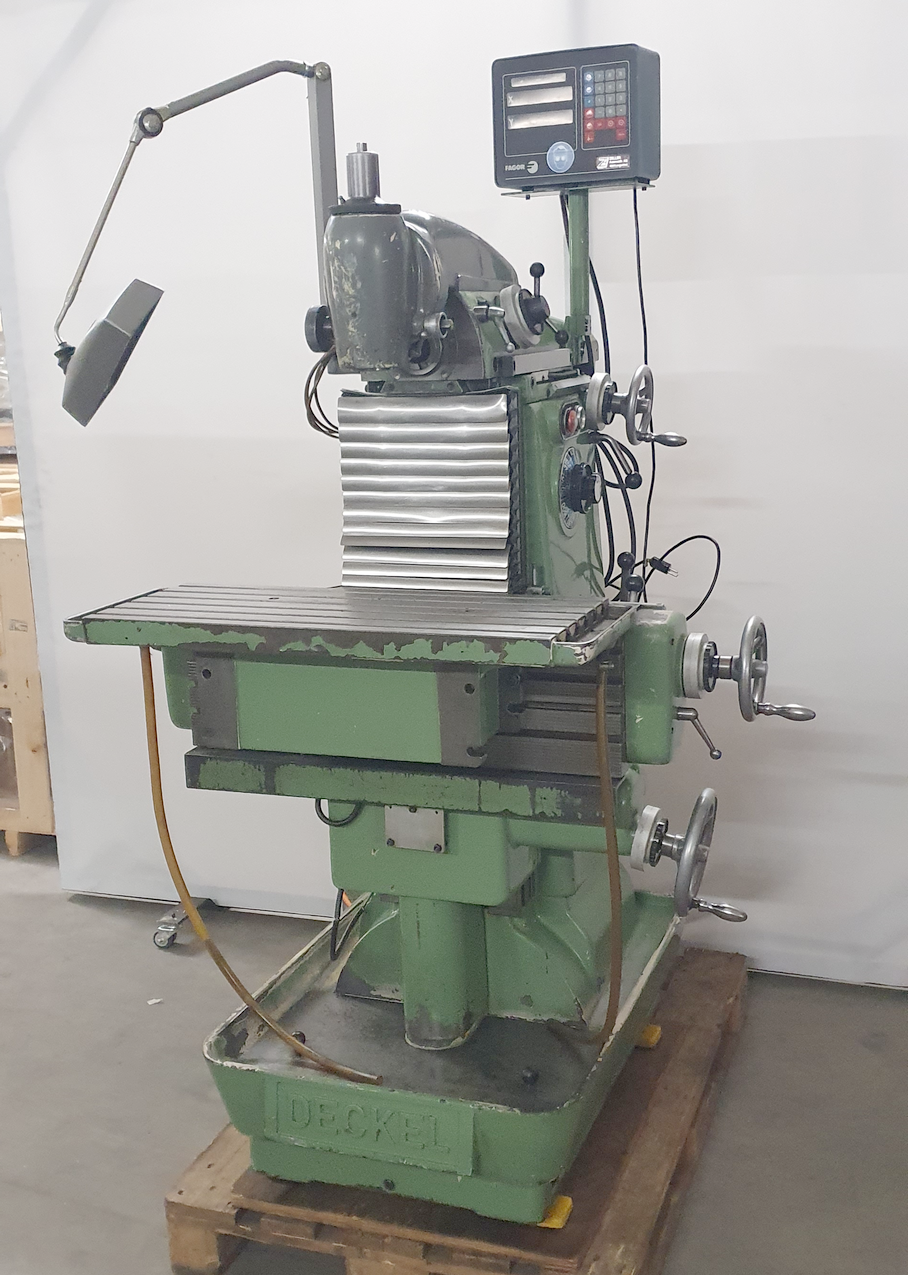

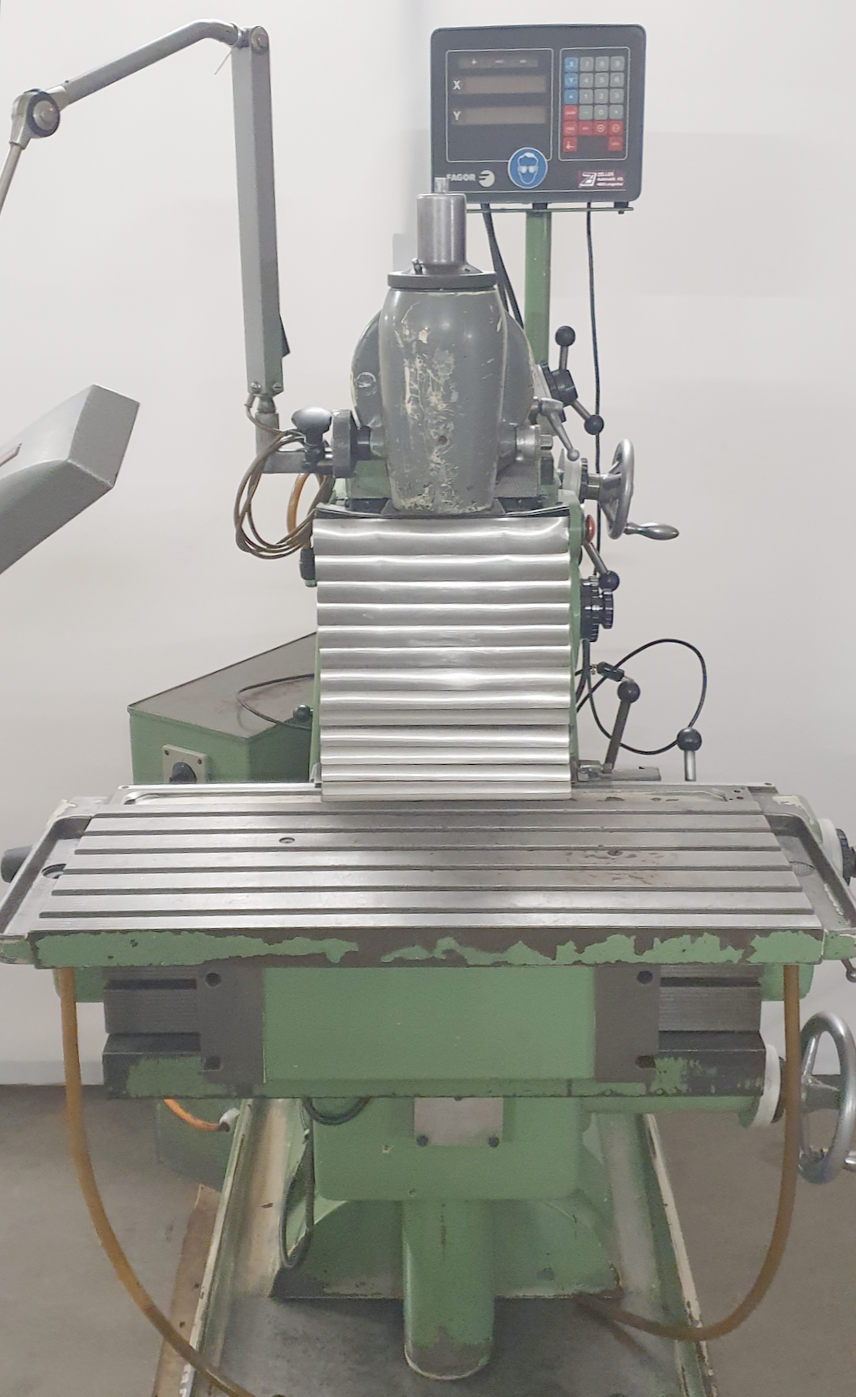

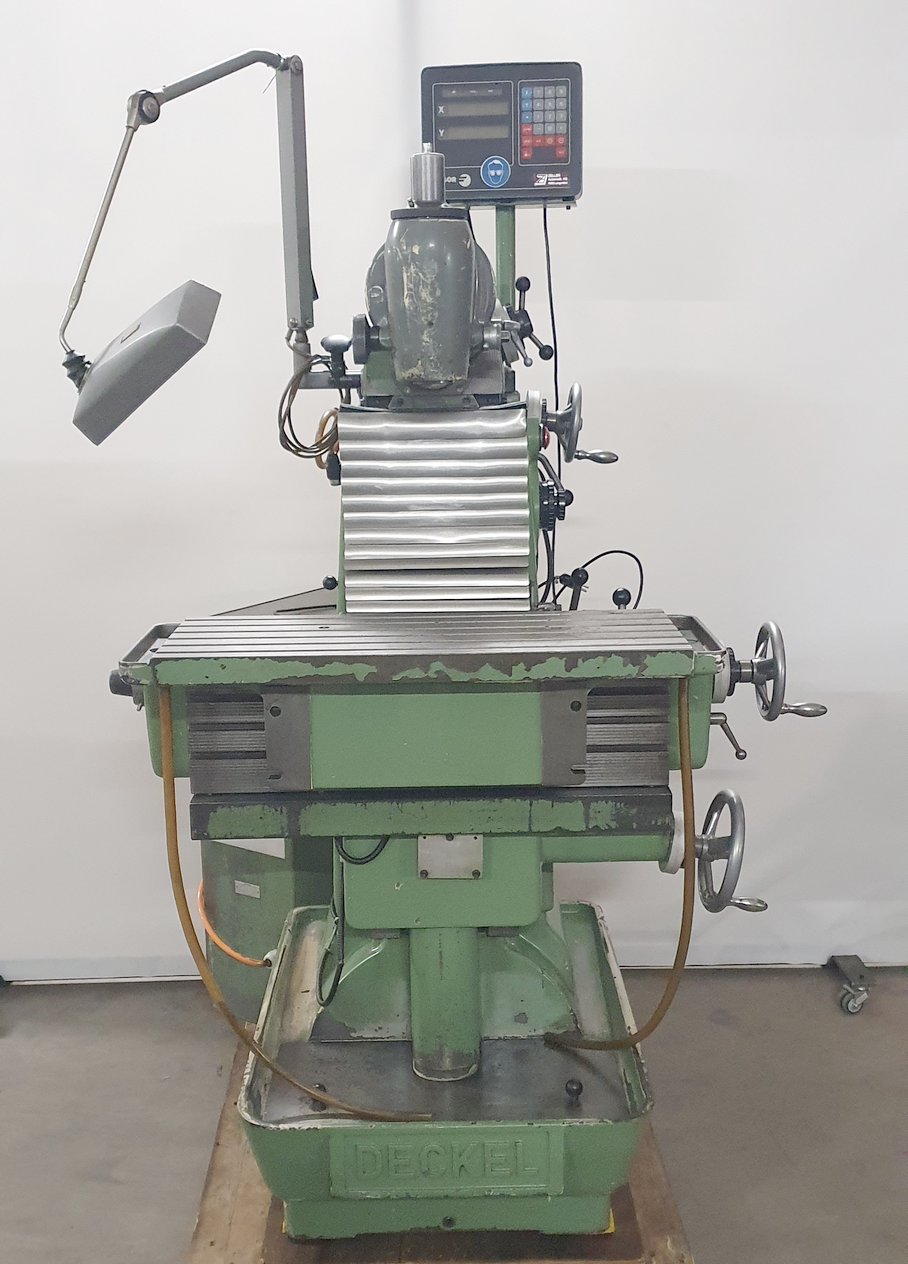

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DECKEL
  • Model:
  • 021746 - DECKEL FP 2
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 700 mm.
Table width: 285 mm.
Longitudinal travel (X-axis): 400 mm.
Transversal travel (y axis): 200 mm.
Vertical travel (z axis): 400 mm.
from: 40 t/min.
up to: 400 mm/min.
Taper in spindle: 40 ISO.
Feeds steps:: 18.
longitudinal from: 8.0 mm/min.
transversal from: 8.0 mm/min.
vertical from: 8.0 mm/min.
longitudinal: 1.2 m/min.
transversal: 1.2 m/min.
vertical: 1.2 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 3.0 CV.
Machine's weight about: 1000 kg.
Length: 1400 mm.
Width: 1600 mm.
Height: 1650 mm.

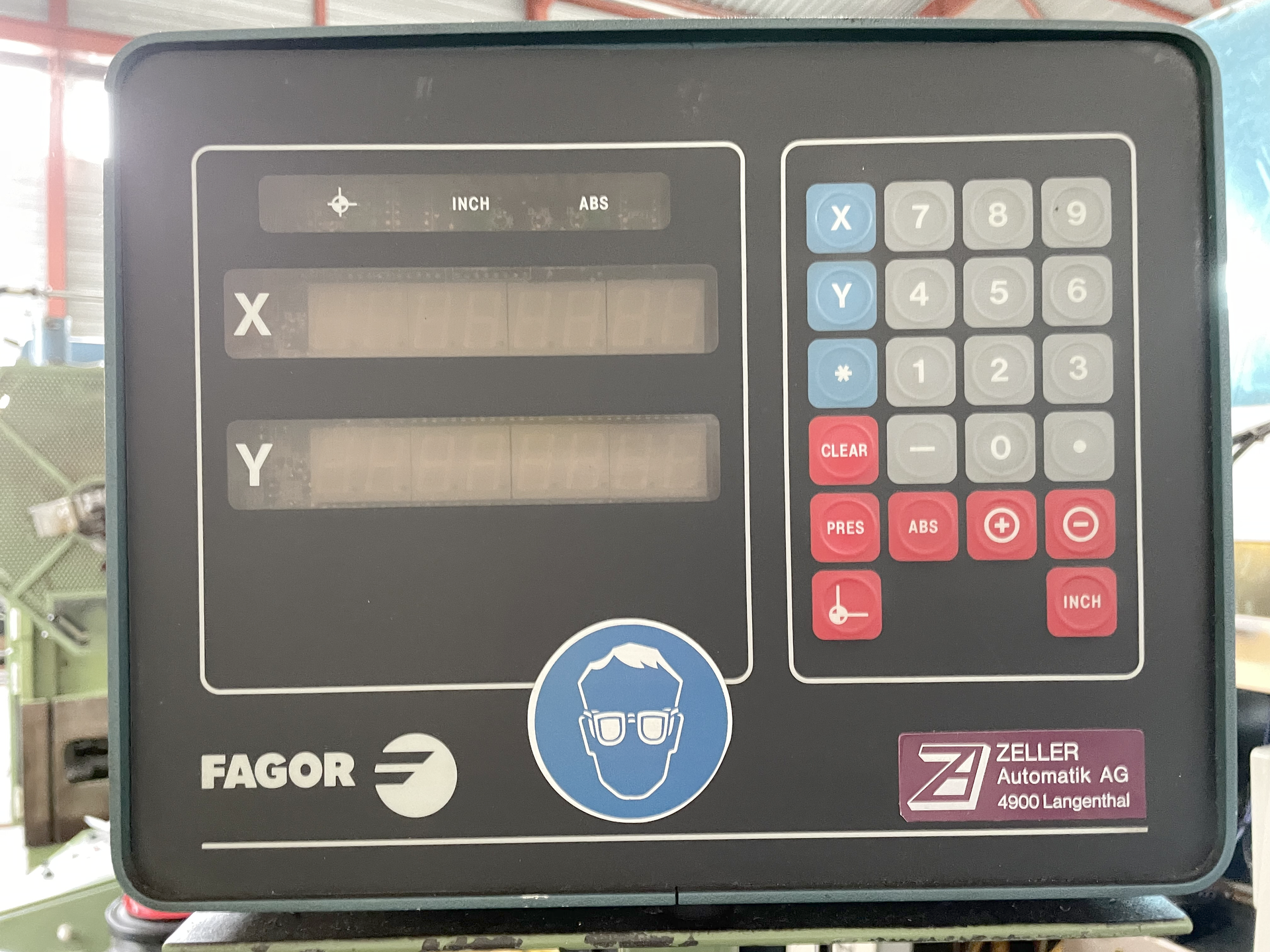

Digital readout number of axis:: 2.
