MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DECKEL
  • Model:

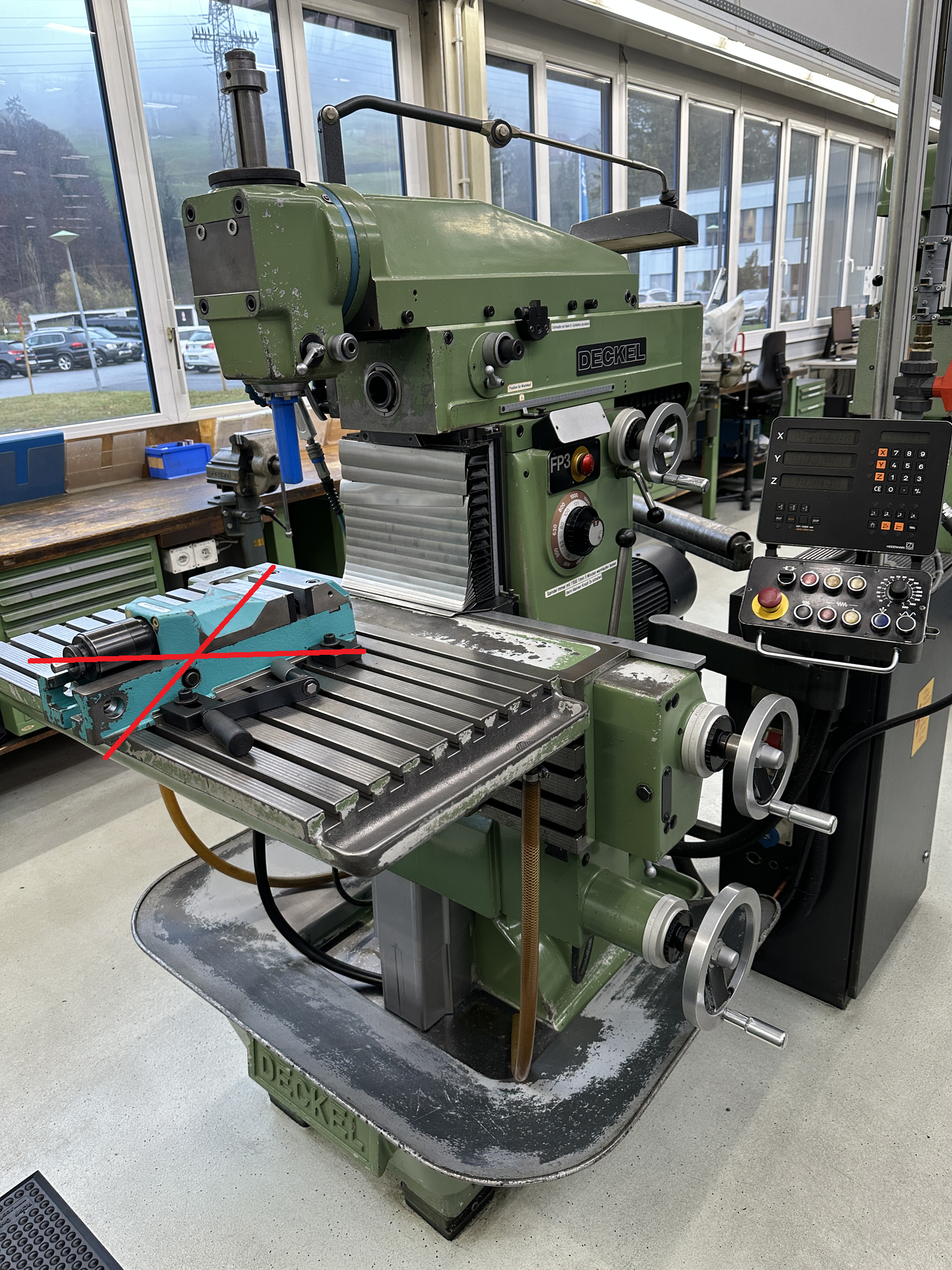

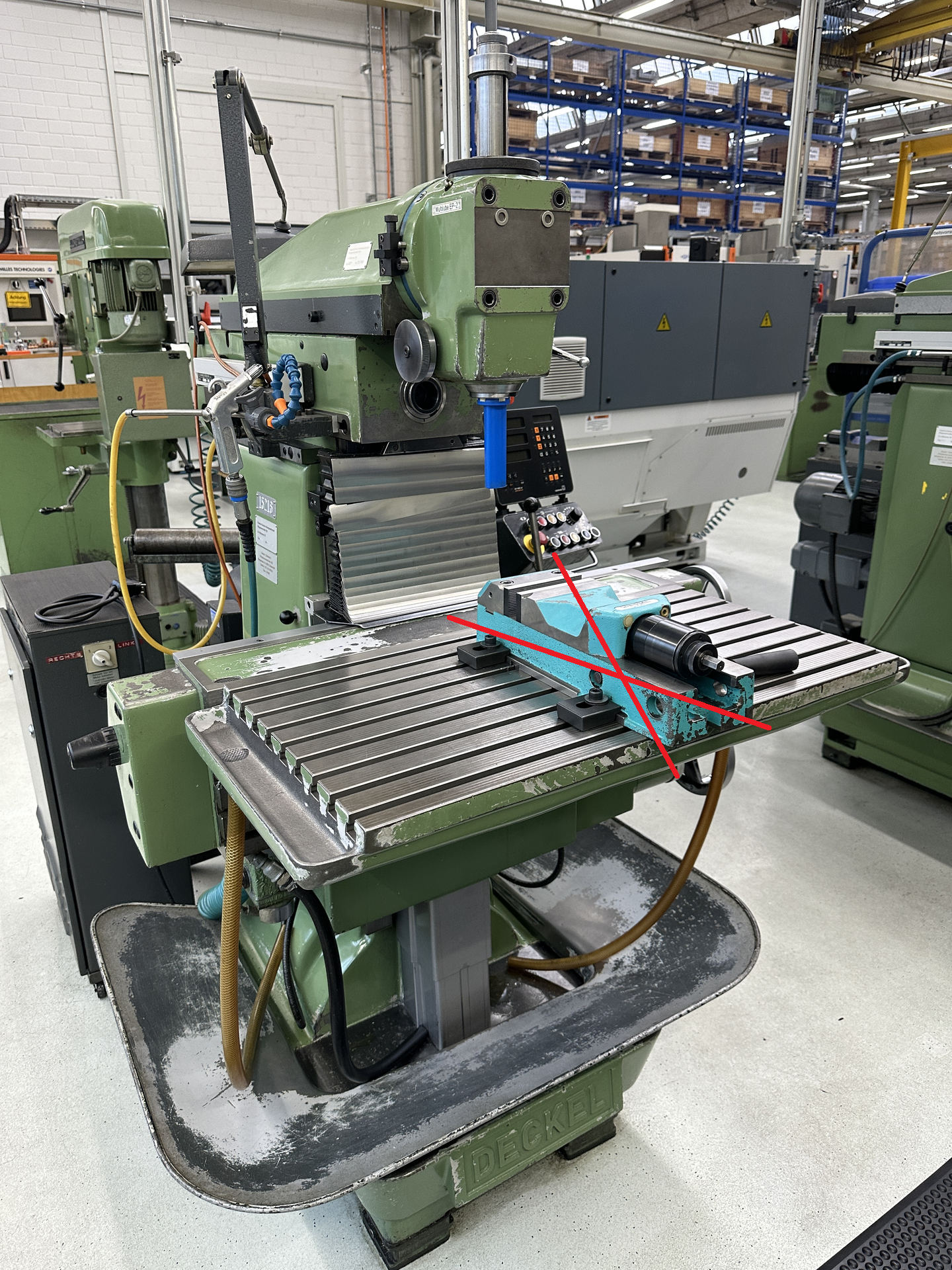

  • 022292 - DECKEL FP 3
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 800 mm.
Table width: 420 mm.
Number of T-channels: 9.
T-channel width: 12 mm.
Distance of the T-slots: 45 mm.
Longitudinal travel (X-axis): 500 mm.
Transversal travel (y axis): 300 mm.
Vertical travel (z axis): 380 mm.
Distance from vertical spindle to table: 470 mm.
Table load max.: 400 kg.
number (steps): 21.
from: 25 t/min.
up to: 2500 t/min.

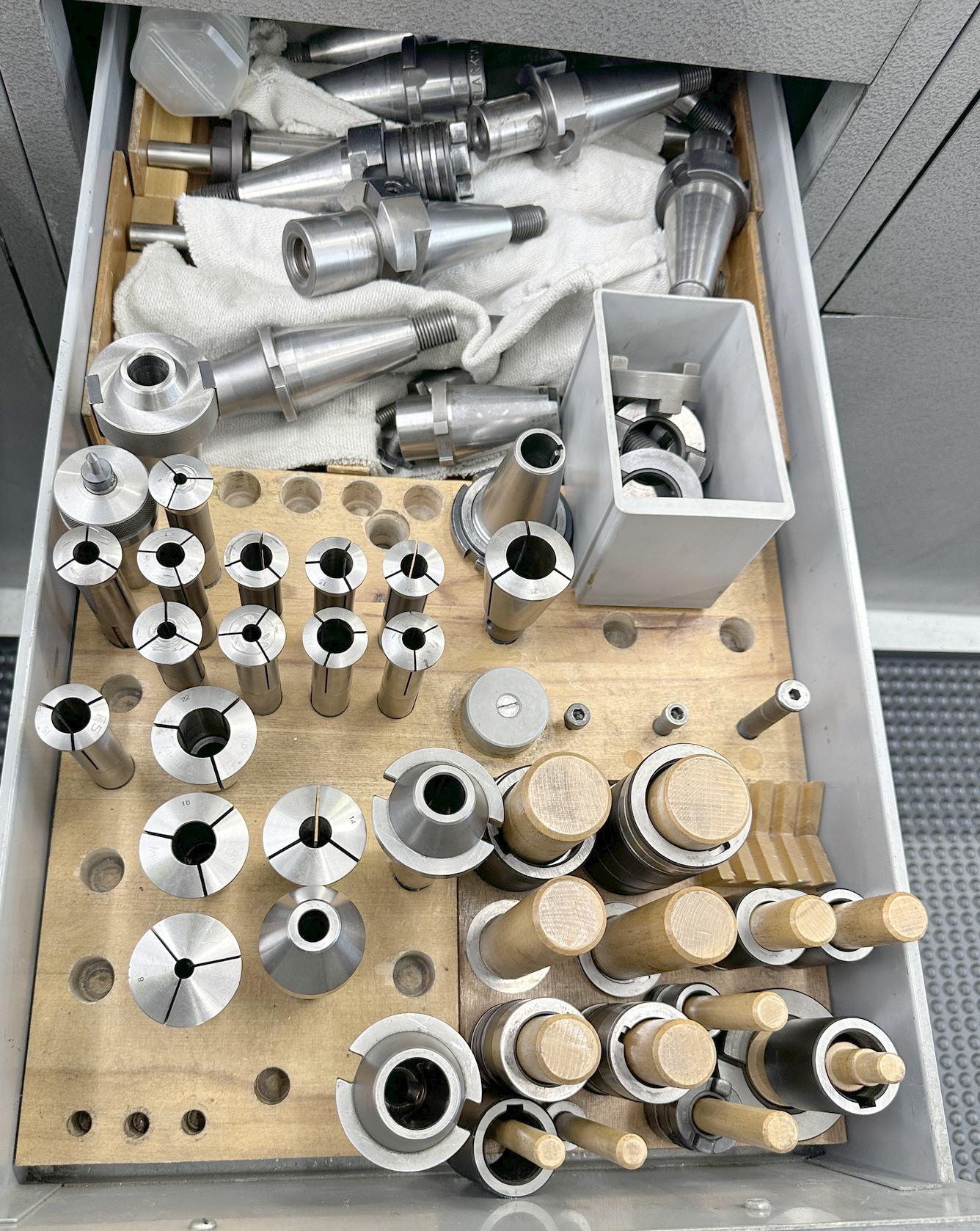

Taper in spindle CN: 40.

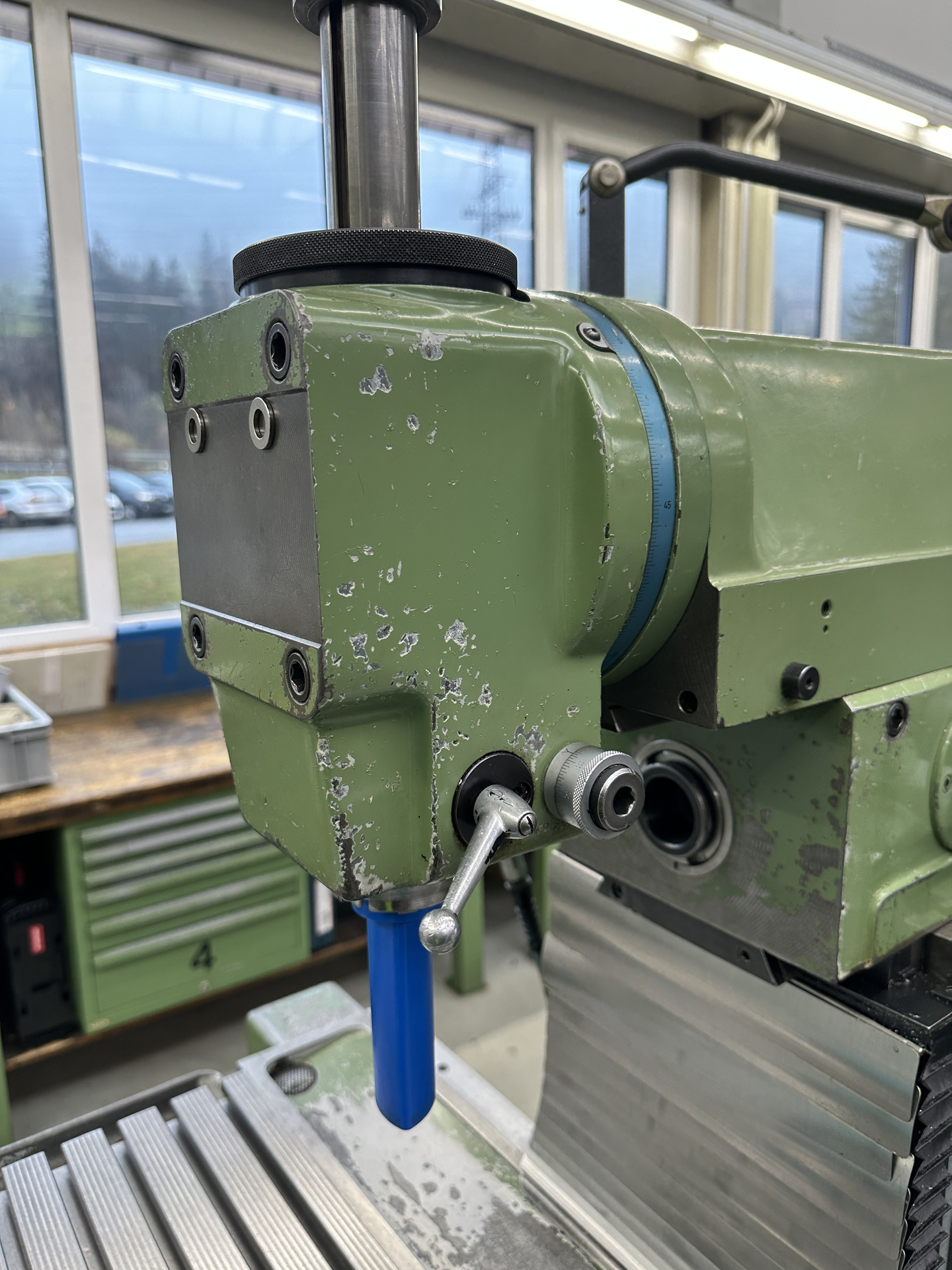

Swivel range Vertical milling head: +/-90 °.
Feeds: 5 - 500 mm/min.
Vertical quill travel: 100 mm.
longitudinal: 1.5 m/min.
transversal: 1.5 m/min.
vertical: 1.5 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor power: 4 kW.
Machine's weight about: 1100 kg.
Length: 2200 mm.
Width: 1800 mm.
Height: 2000 mm.

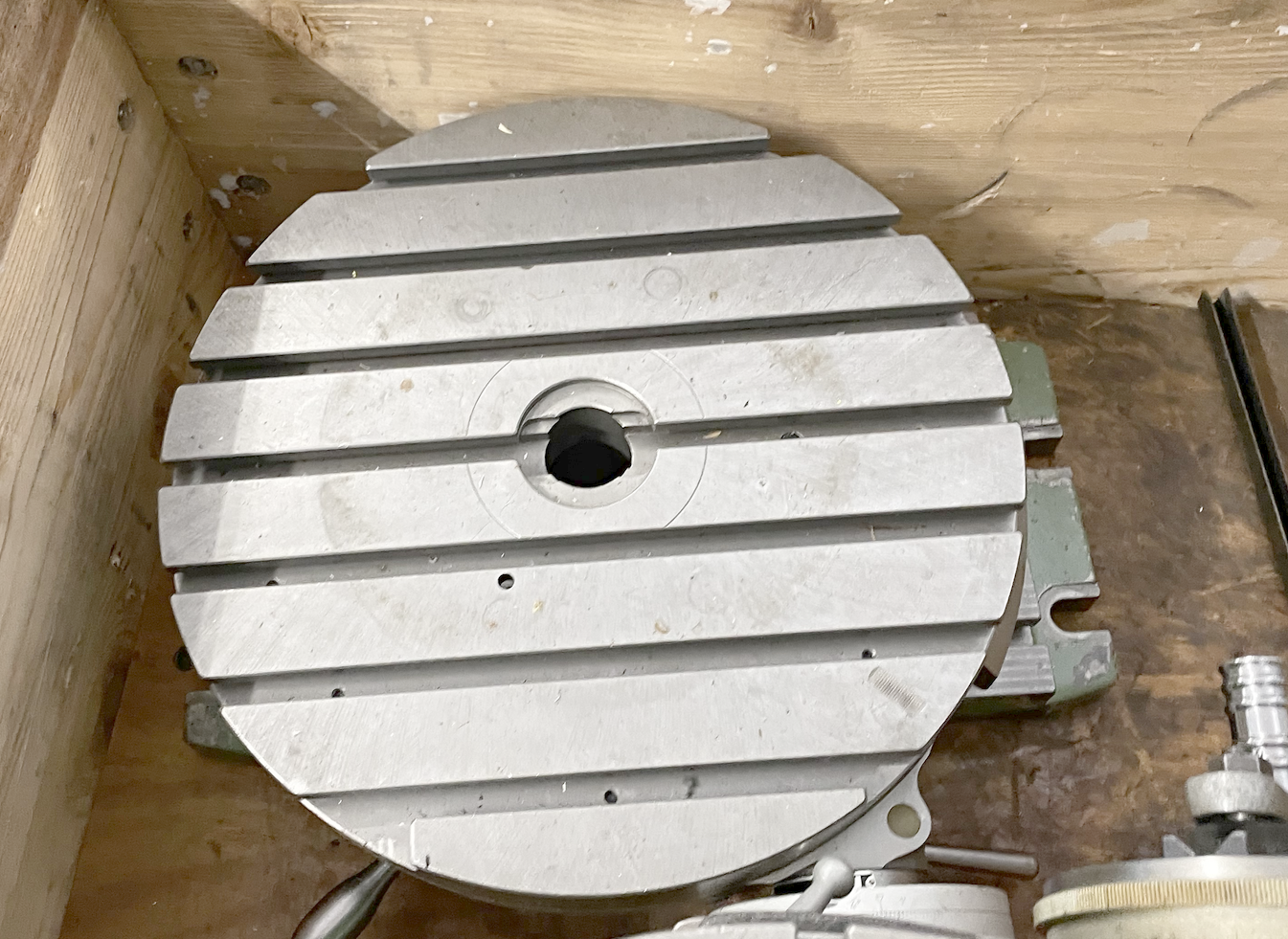

Rotary table:diameter: 380 mm.
