MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DeVLIEG
  • Model:

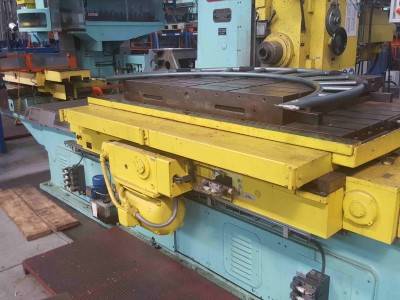

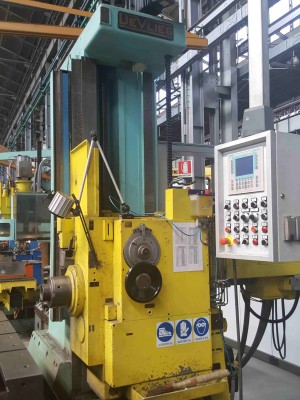

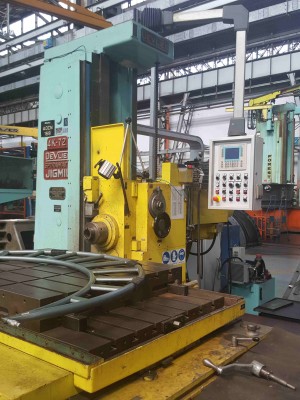

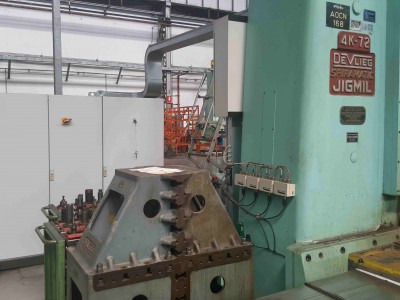

  • DEVLIEG 4K-72 TABLE TYPE BORER
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Italy

DESCRIPTION

Spindle: 102mm.
Transversal travel: 1.829mm.
Vertical travel: 1.200mm.
Longitudinal travel: 508mm.
Spindle travel: 508mm.
Spindle taper: 50ISO
Table: 1.829 x 1.016mm.
Spindle power: 15Kw.
Spindle speeds: 14 - 1.450Rpm.
Max. weight on table: 3.630kg.

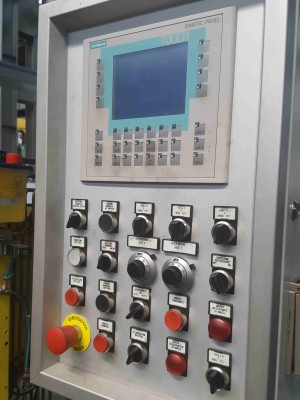

Notes: RETROFITTED IN 2008.COMPLETE WITH:- PLC SIEMENS TOCH SIMATIC- UPPER TABLE 1.270 x 1.016 MM.- TOOL-HOLDERS
