MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • CERUTI
  • Model:

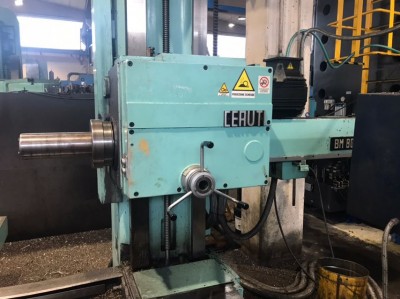

  • CERUTI BM 80 CNC TABLE TYPE BORER
  • Condition:
  • Used
  • YOM:
  • 1982
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Spindle: 80mm.
Transversal travel: 1.400mm.
Vertical travel: 1.000mm.
Longitudinal travel: 1.250mm.
Spindle travel: 600mm.
Spindle taper: 40ISO
Table: 1.100 x 850mm.
Spindle power: 12Kw.
Spindle speeds: 15 - 1.500Rpm.
Max. weight on table: 2.500kg.
Total weight: 8Tons.

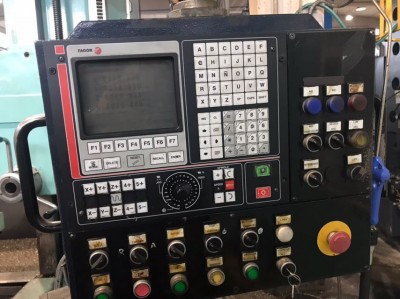

Cnc: CNC FAGOR 8025
Year: 1982
Notes: RETROFITTED IN 1992.COMPLETE WITH:- BORING SUPPORT
