MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Harrison
  • Model:
  • M390 Gap Bed Centre Lathe L10927.01
  • Condition:
  • Used
  • YOM:
  • NA
  • Control:
  • manual
  • Price:
  • £5,750 + VAT
  • Country:
  • United Kingdom

DESCRIPTION

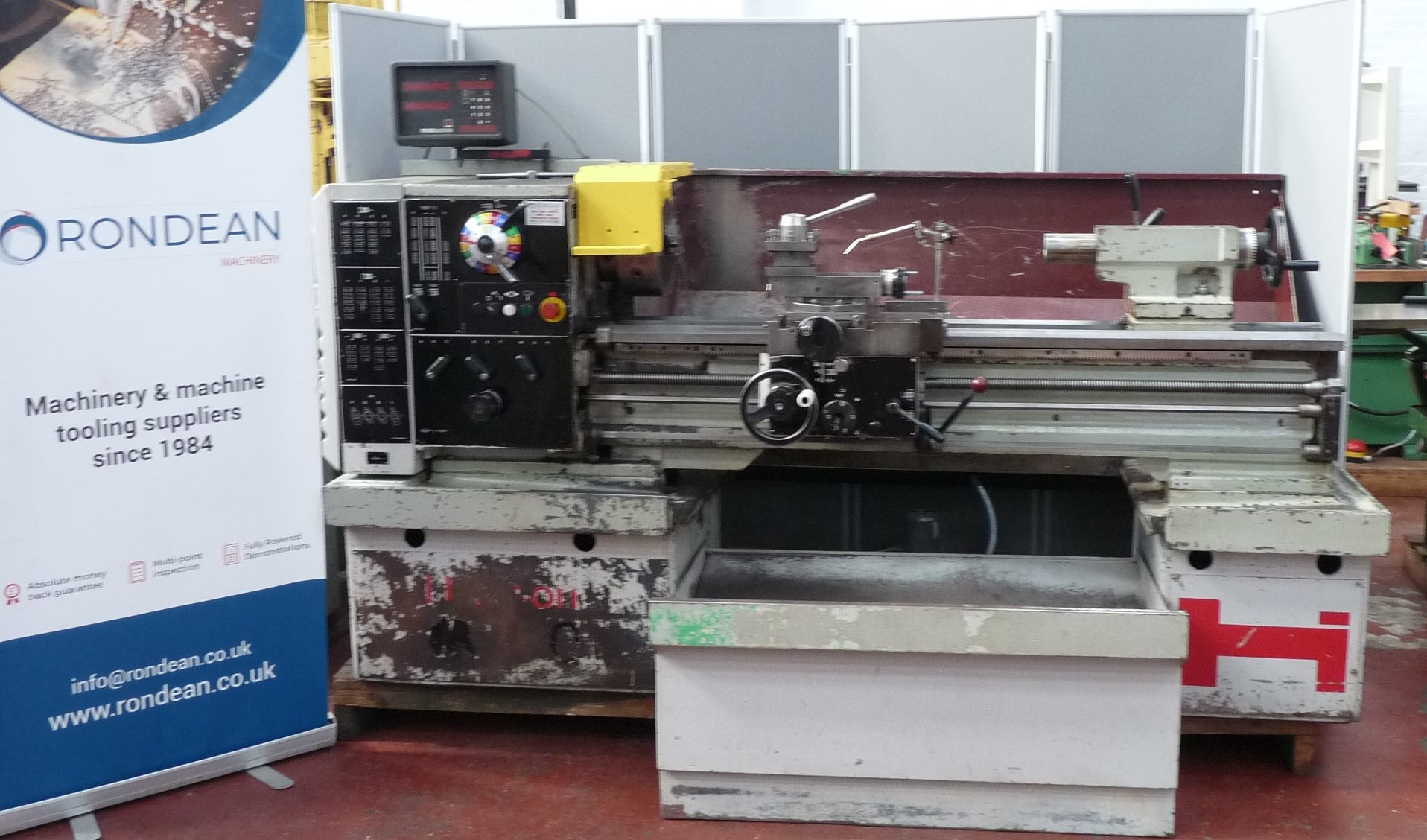

Manufacturer Harrison Model M390 Gap Bed Centre Lathe Distance between centres 50” (1270mm) Swing over bed 15.7” (390mm) Swing in gap 23” (585mm) Swing over cross slide 9.7” (245mm) Spindle nose D1-6” Camlock Spindle Bore 2 .125” (53mm) Speeds 16: 25-2000 RPM Tailstock Spindle Taper 5 Morse Equipment 3 Jaw Chuck Quick Change Tool Post & 2 tool holders Foot Brake Coolant Analam DRO – SINGLE AXIS – Y Motor Size 5.5 kW / 7.4 Horse Power 11.3 amps max load Power Three Phase Electric's Safe lifting and handling We supply lifting and moving instructions. We also loan our specialist lifting equipment where required. Delivery Options To suit your needs, call us for a quote.
