MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • AVM Angelini Tornio
  • Model:
  • AVM Angelini Tornio CNC Centre Lathe
  • Condition:
  • Used
  • YOM:
  • NA
  • Control:

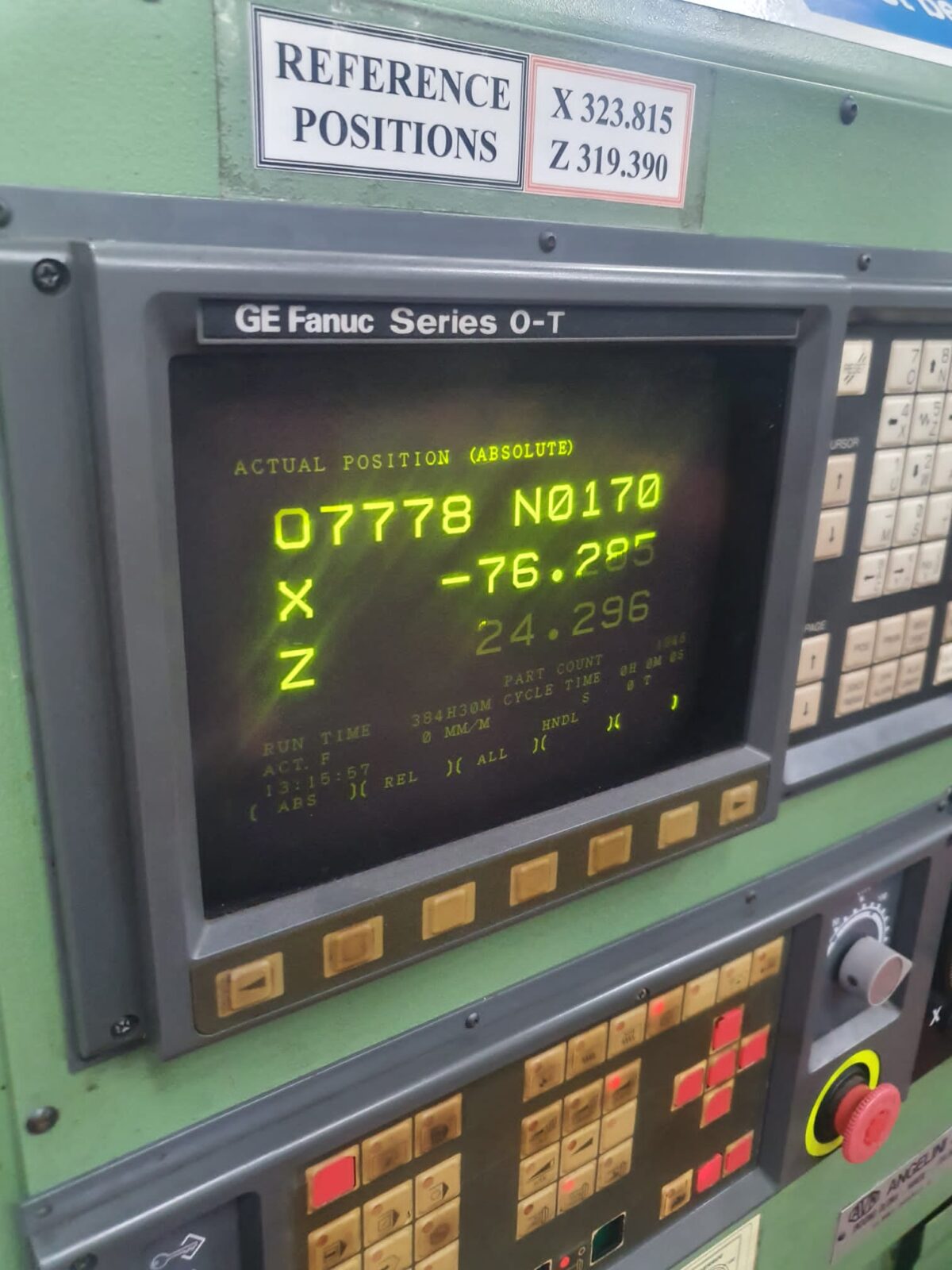

  • GE FANUC Series 0-T Control
  • Price:
  • £8750+ VAT
  • Country:
  • United Kingdom

DESCRIPTION

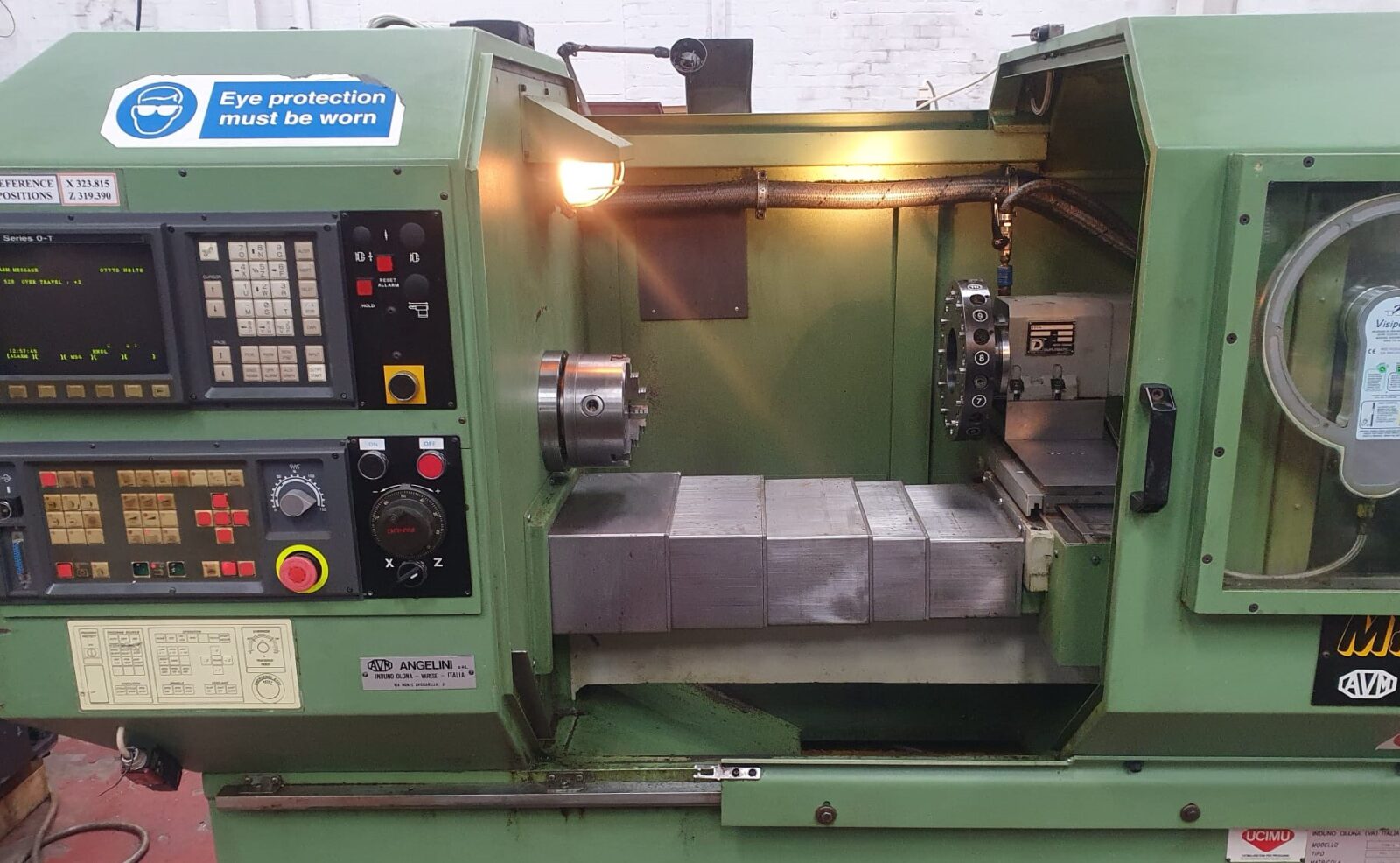

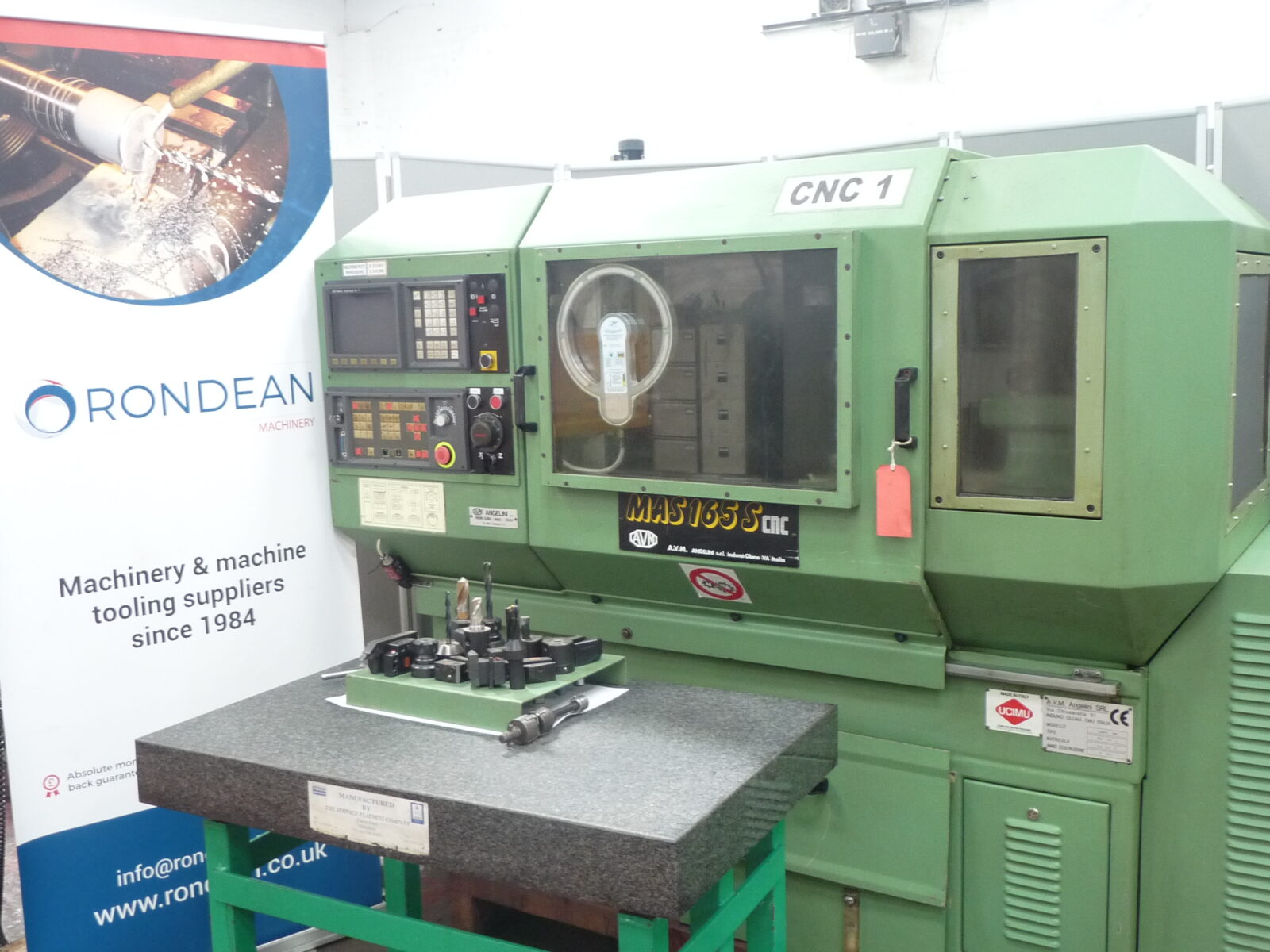

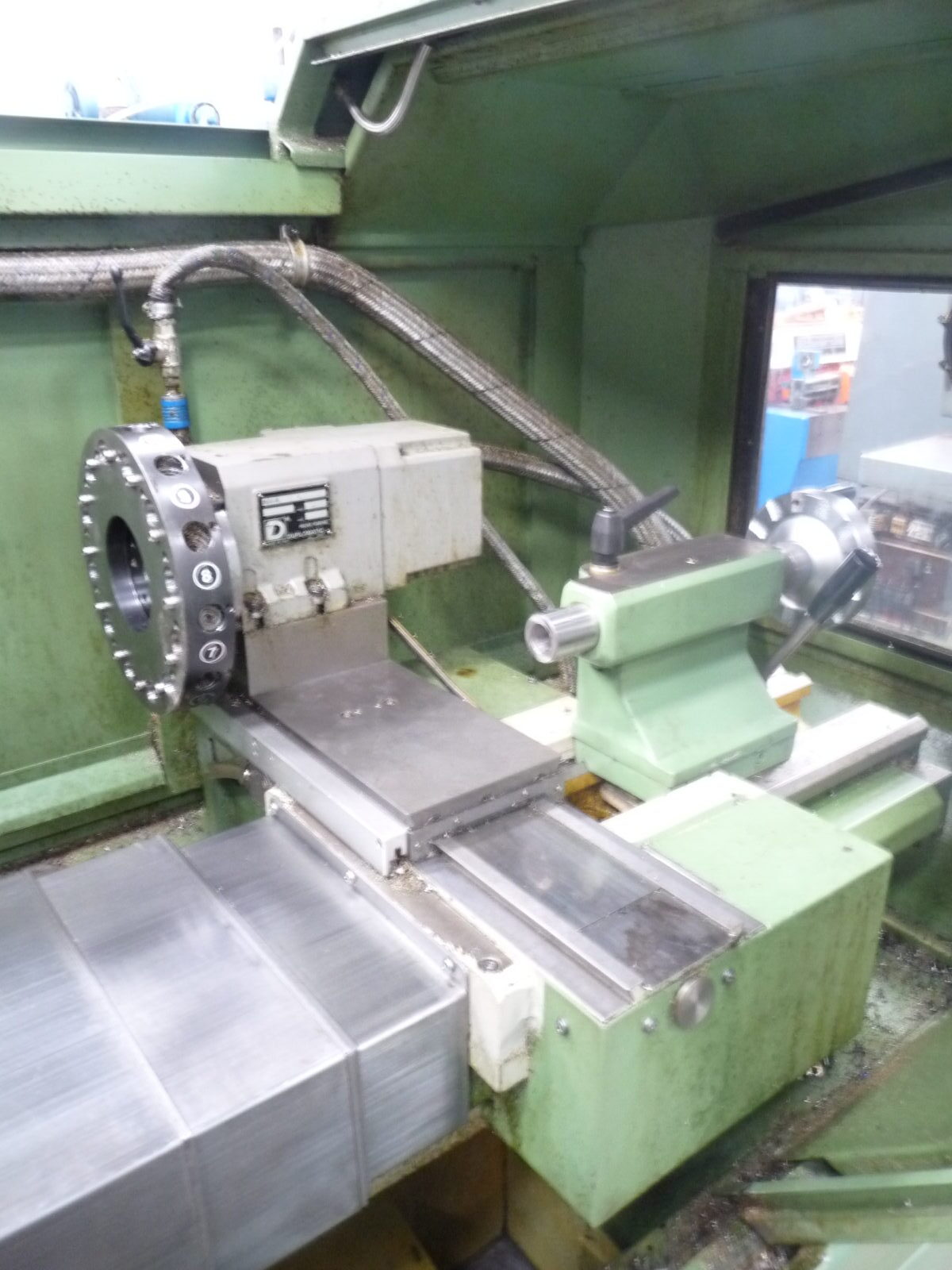

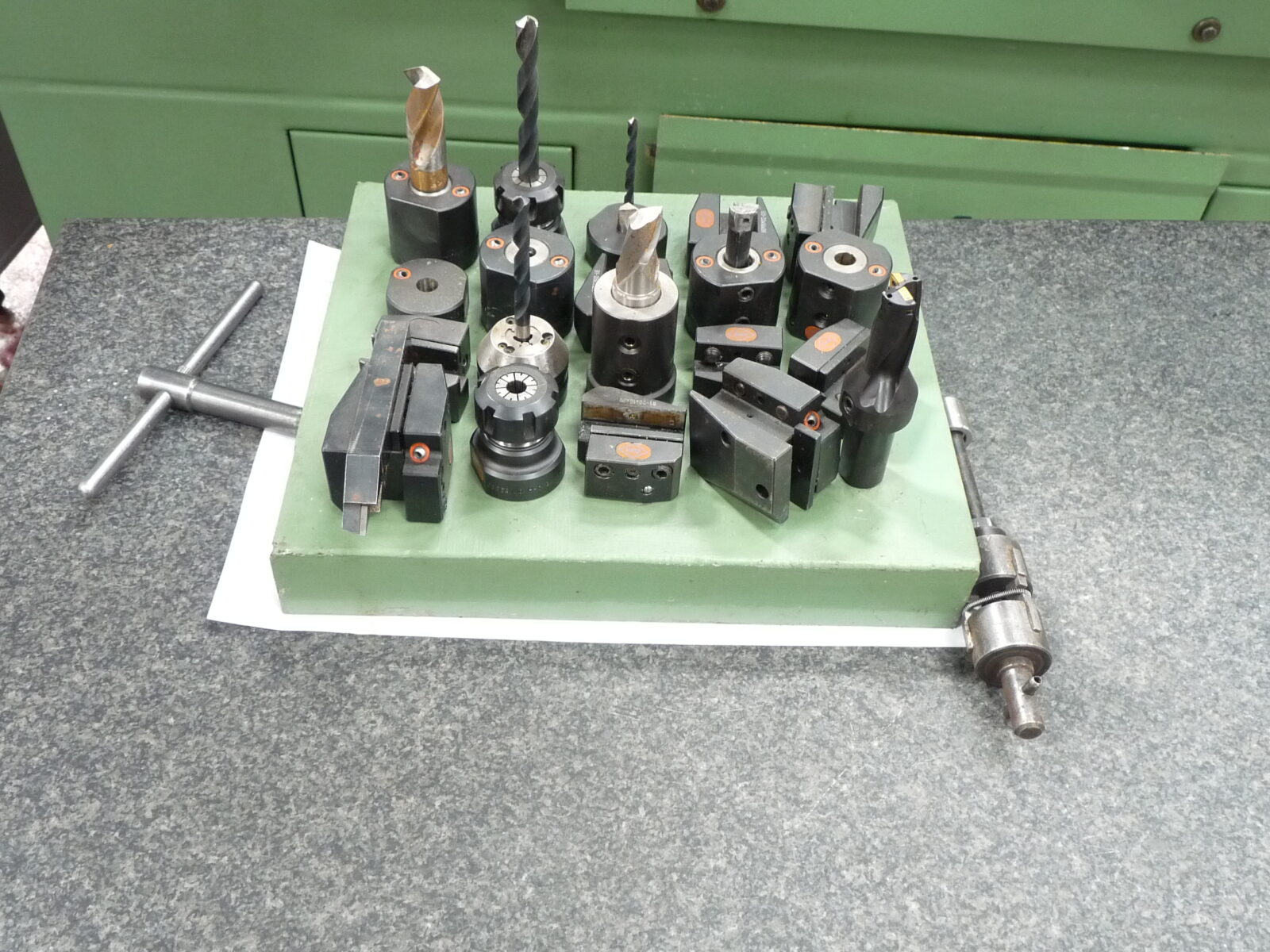

Manufacturer AVM Angelini Tornio Type CNC Centre Lathe Model MAS 165S Capacity 780mm Between Centres 26-465mm working area from chuck to turret 123mm centre height 100mm max chuck opening Features GE FANUC Series 0-T Control 12 Station Turret Supplied with various tool holders and tooling Instruction manual Power 3 Phase Electric’s 5.5kW 36 amps Safe lifting and handling We supply lifting and moving instructions. We also loan our specialist lifting equipment where required. Delivery Options To suit your needs, call us for a quote.
