MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Harrison
  • Model:

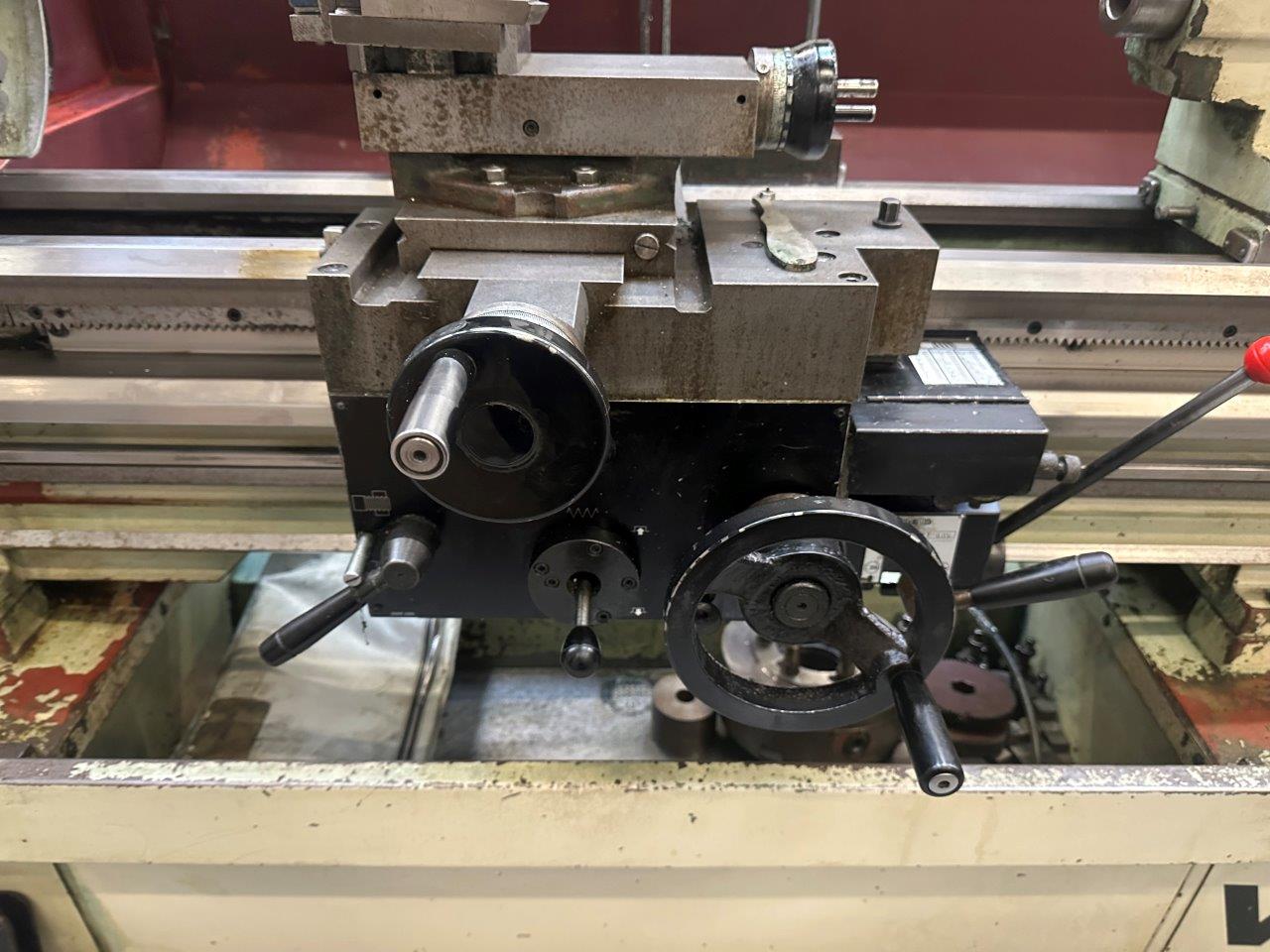

  • Harrison V390 Vari Speed Gap Bed Lathe (2004)
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

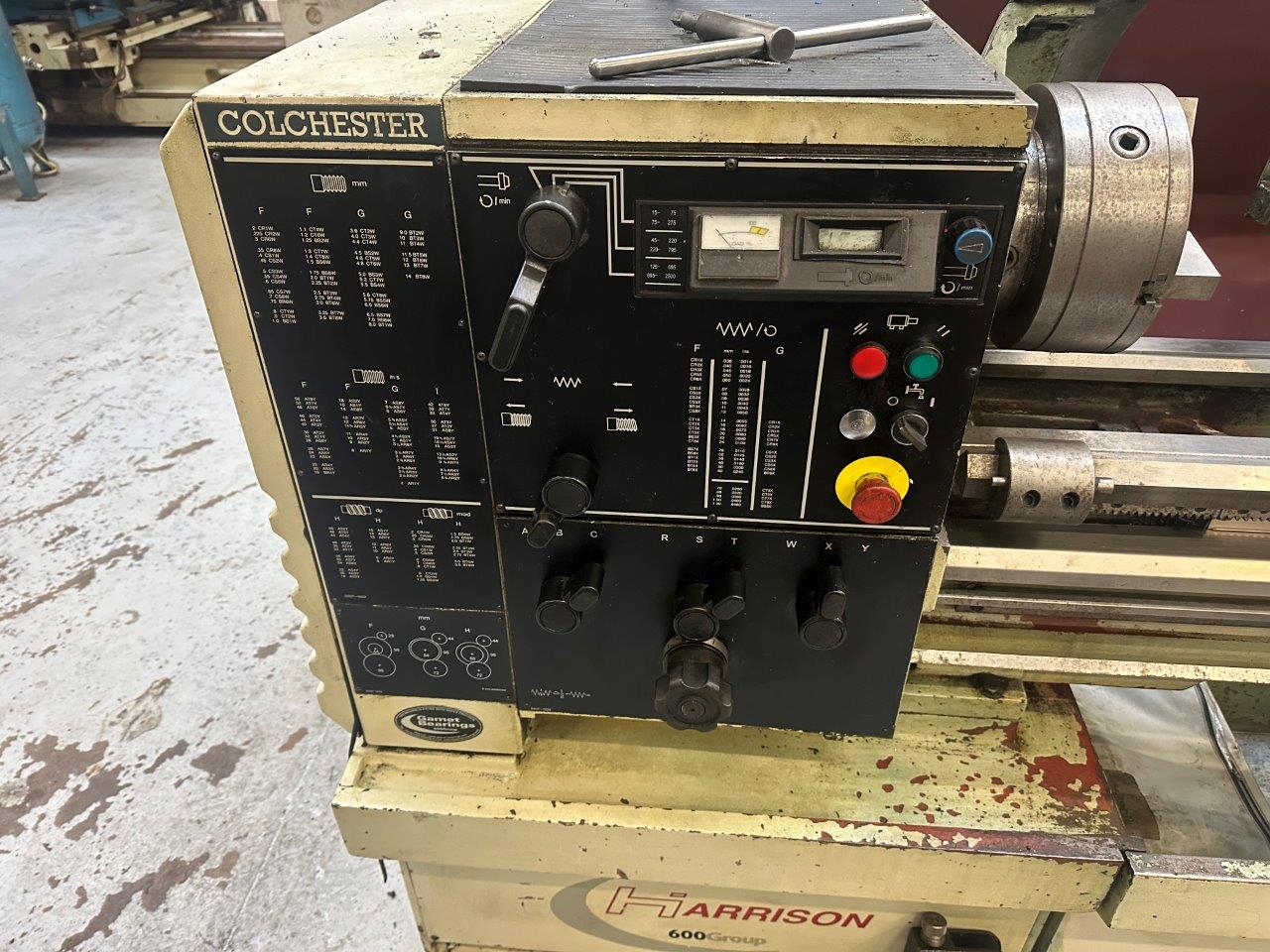

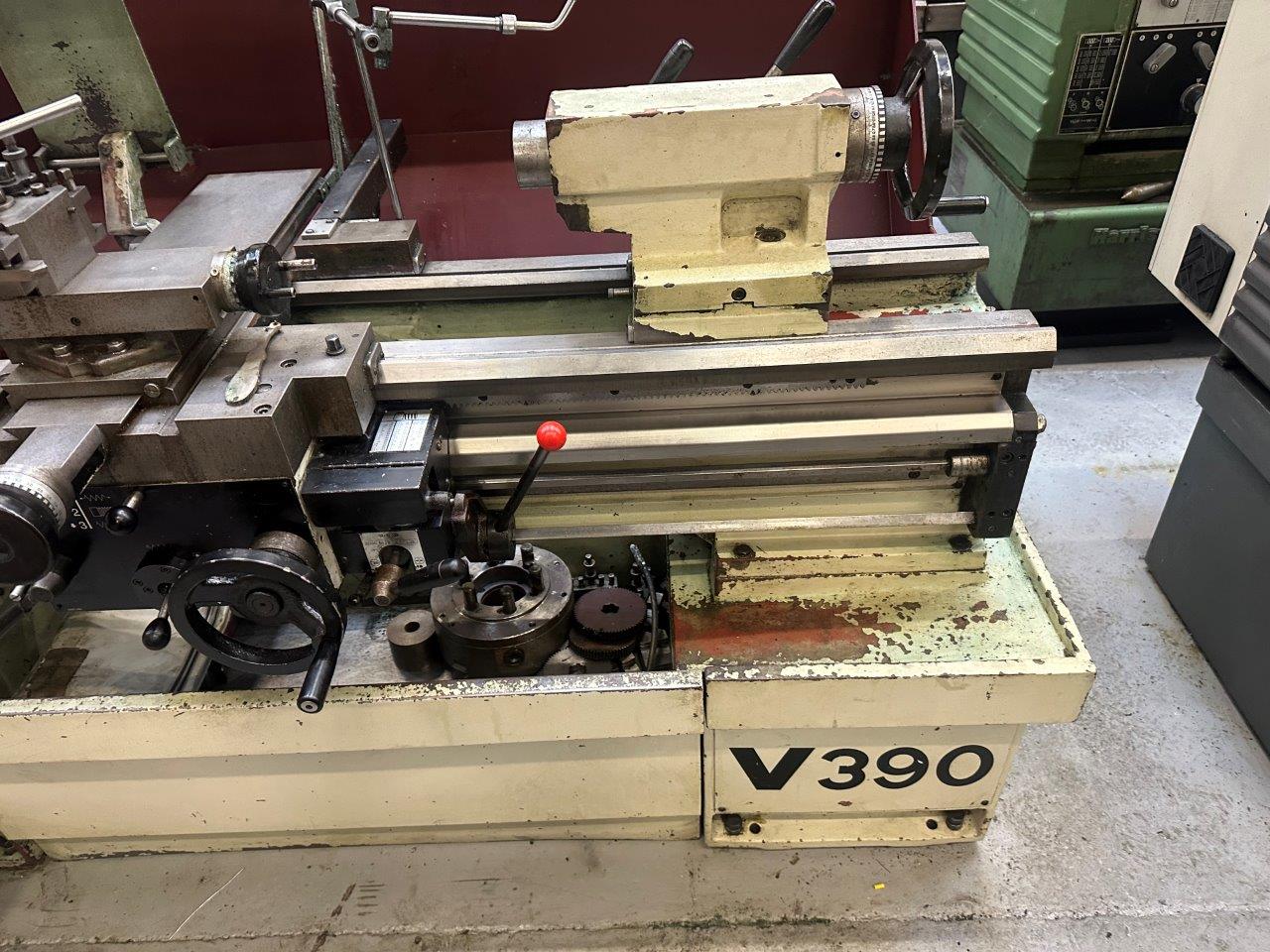

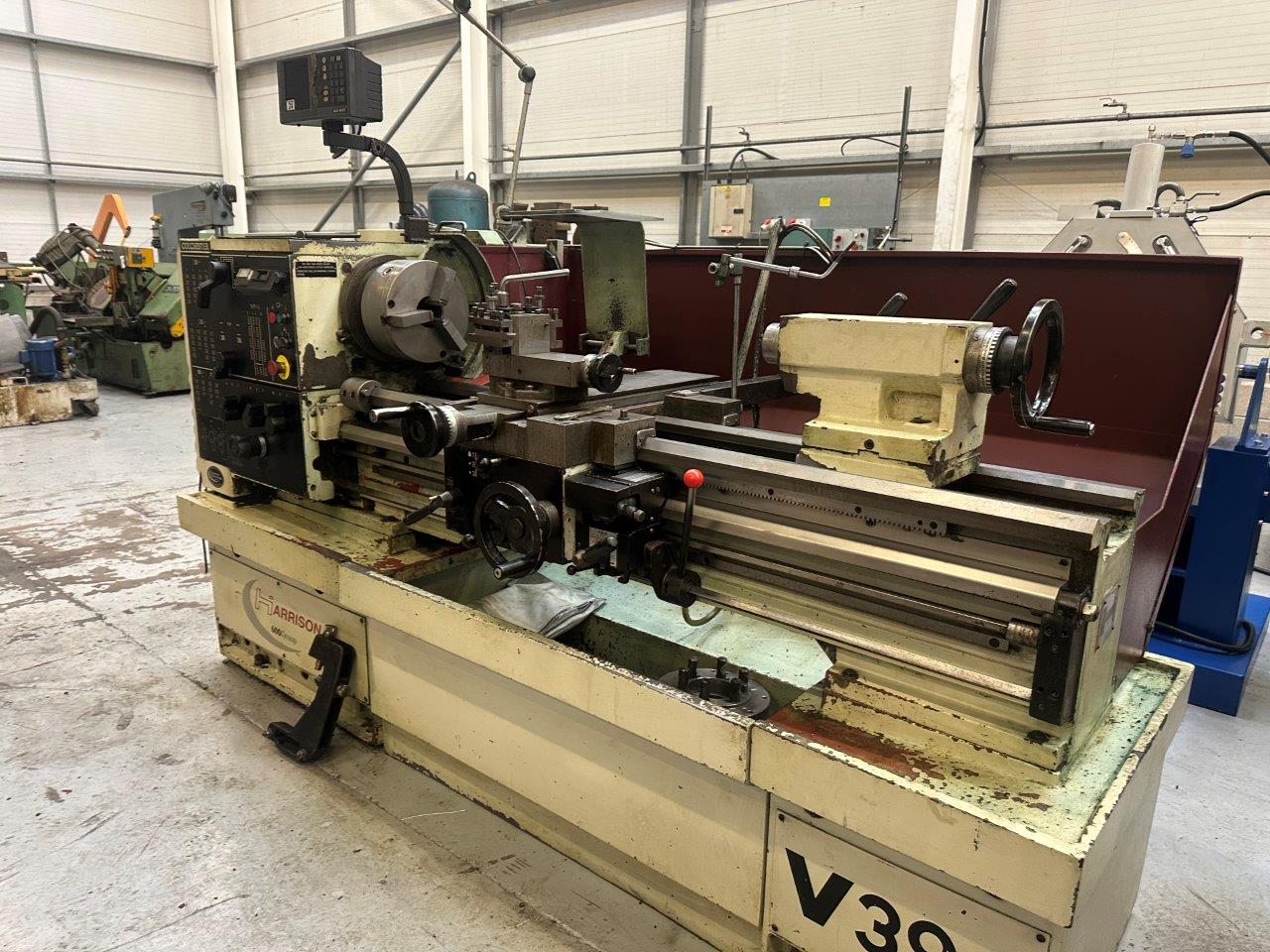

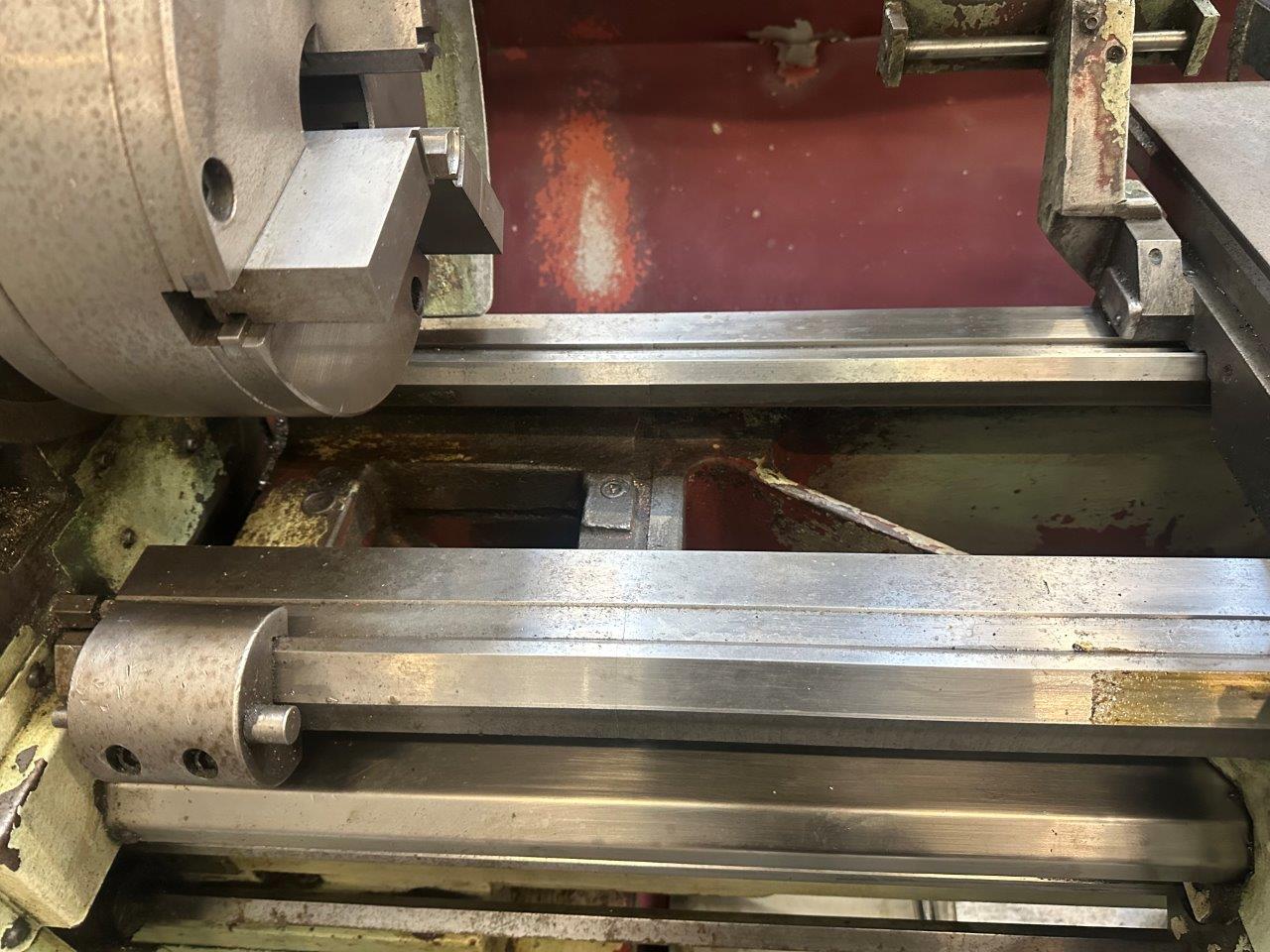

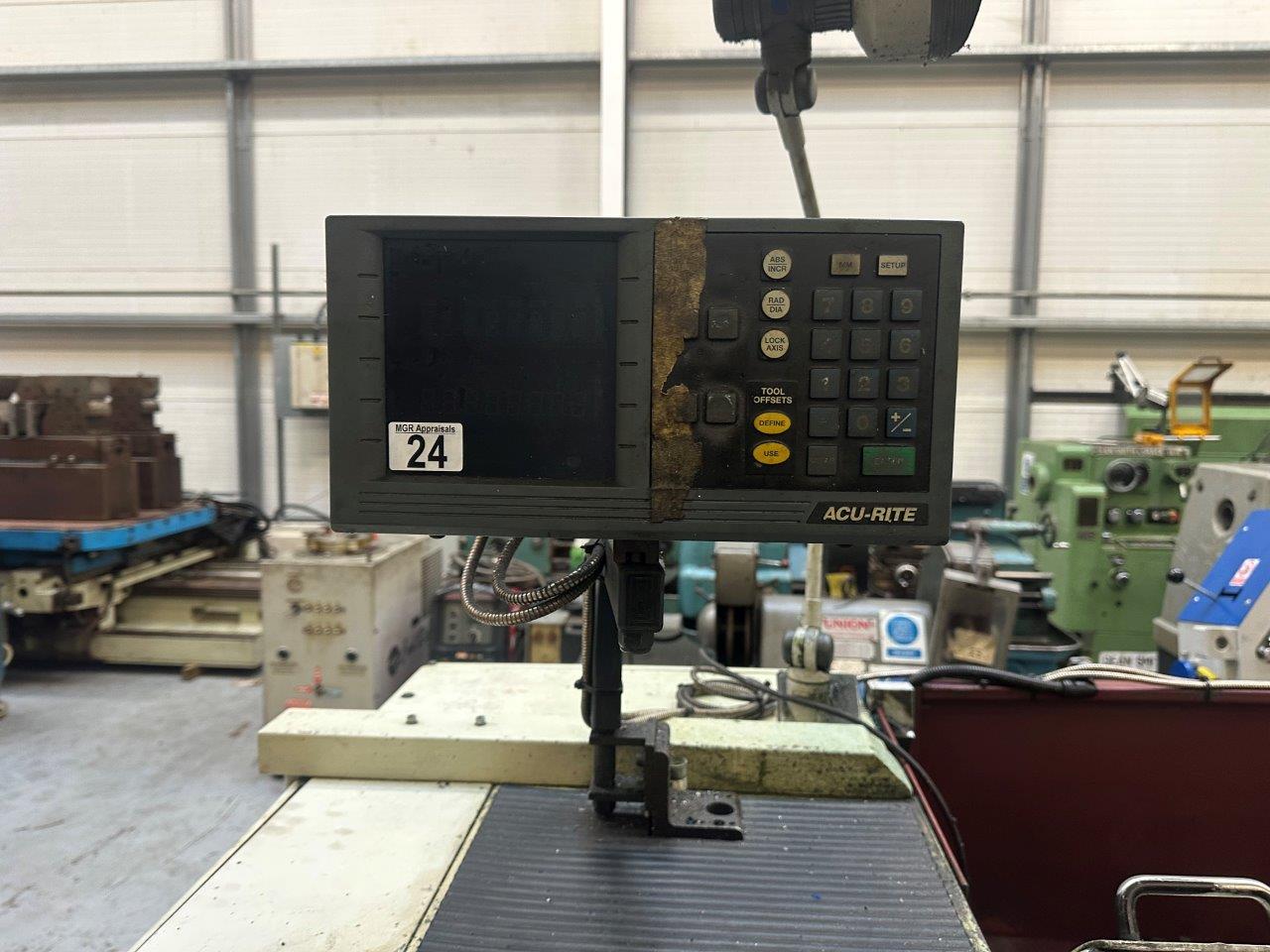

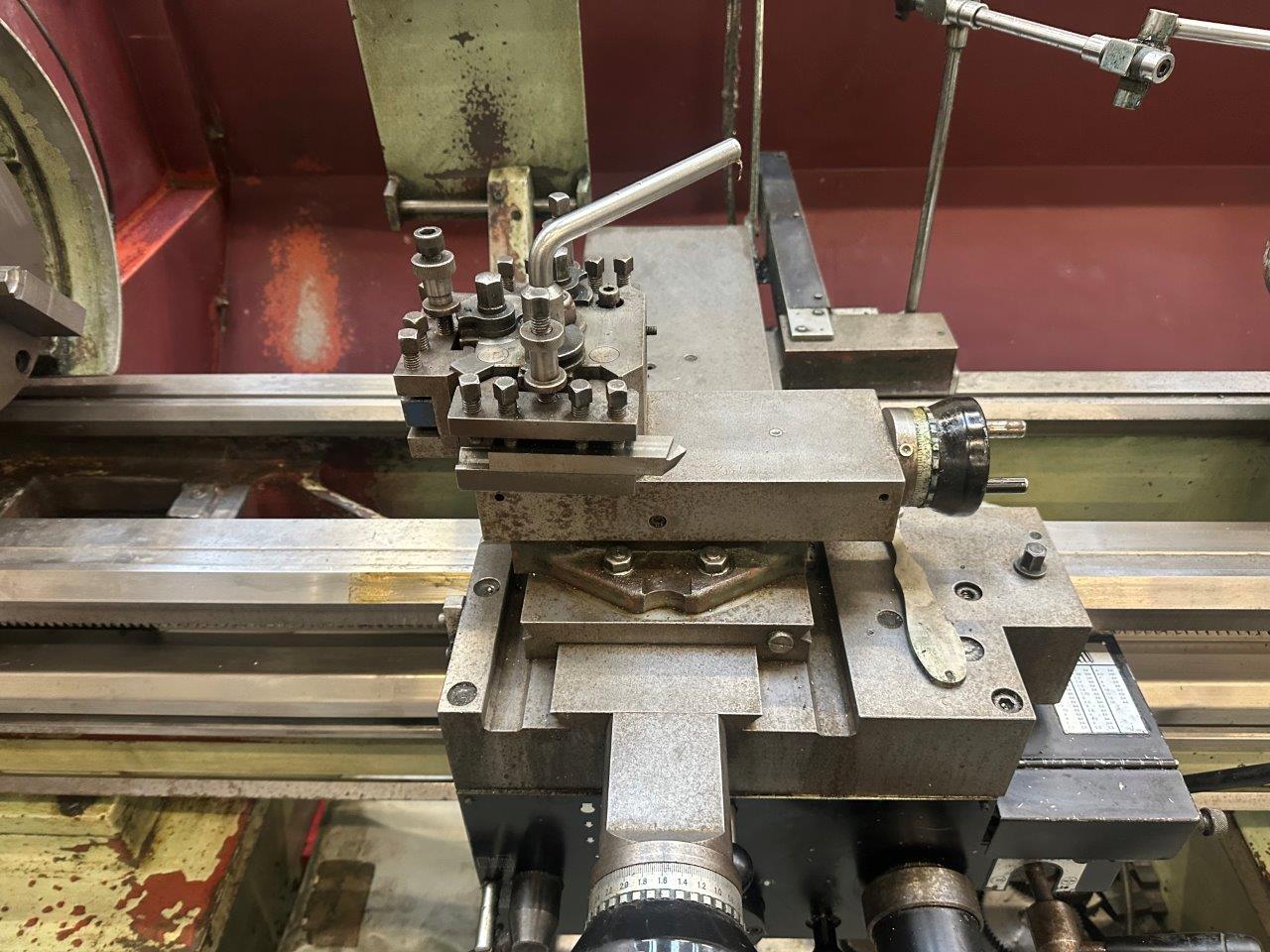

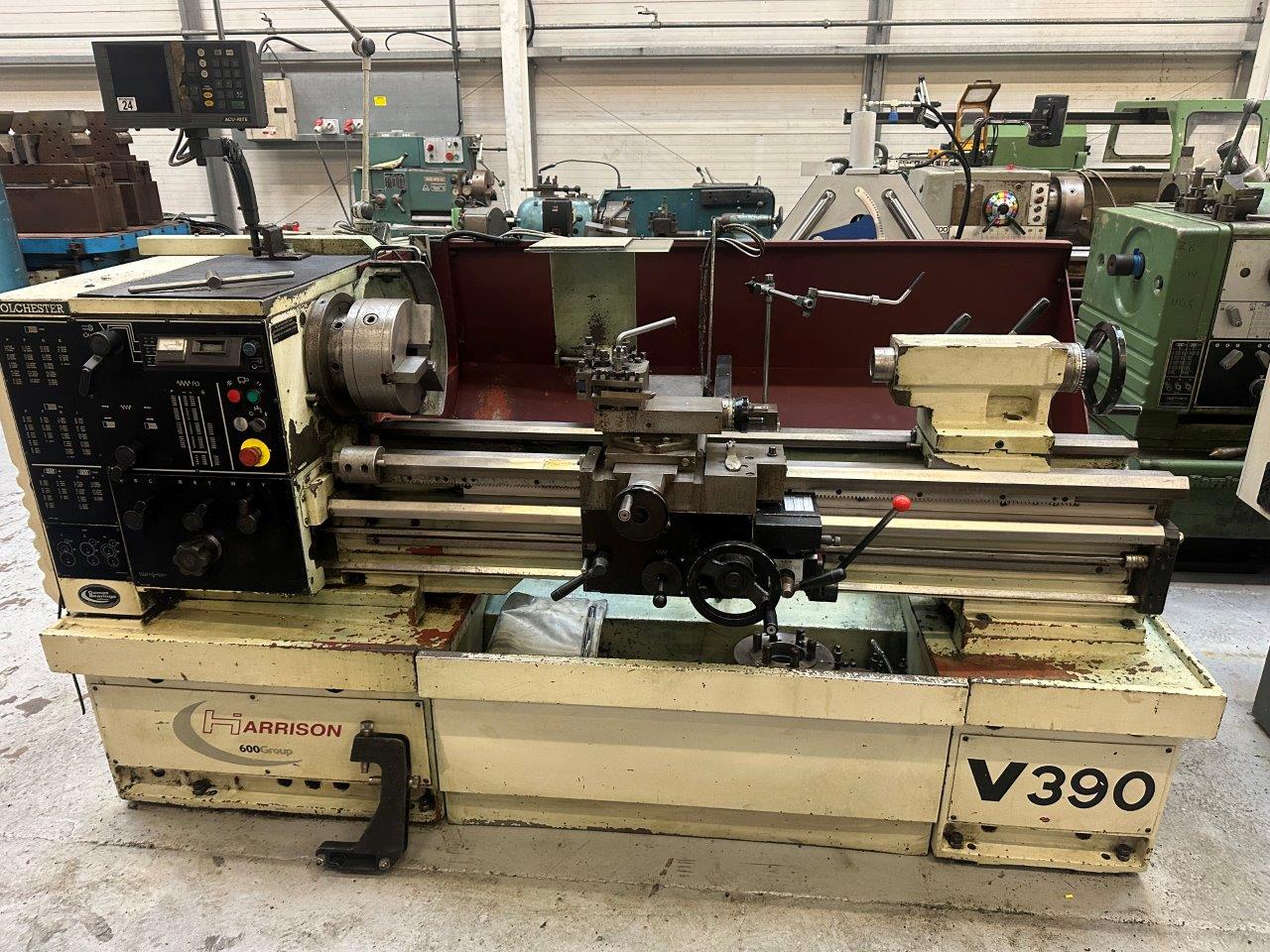

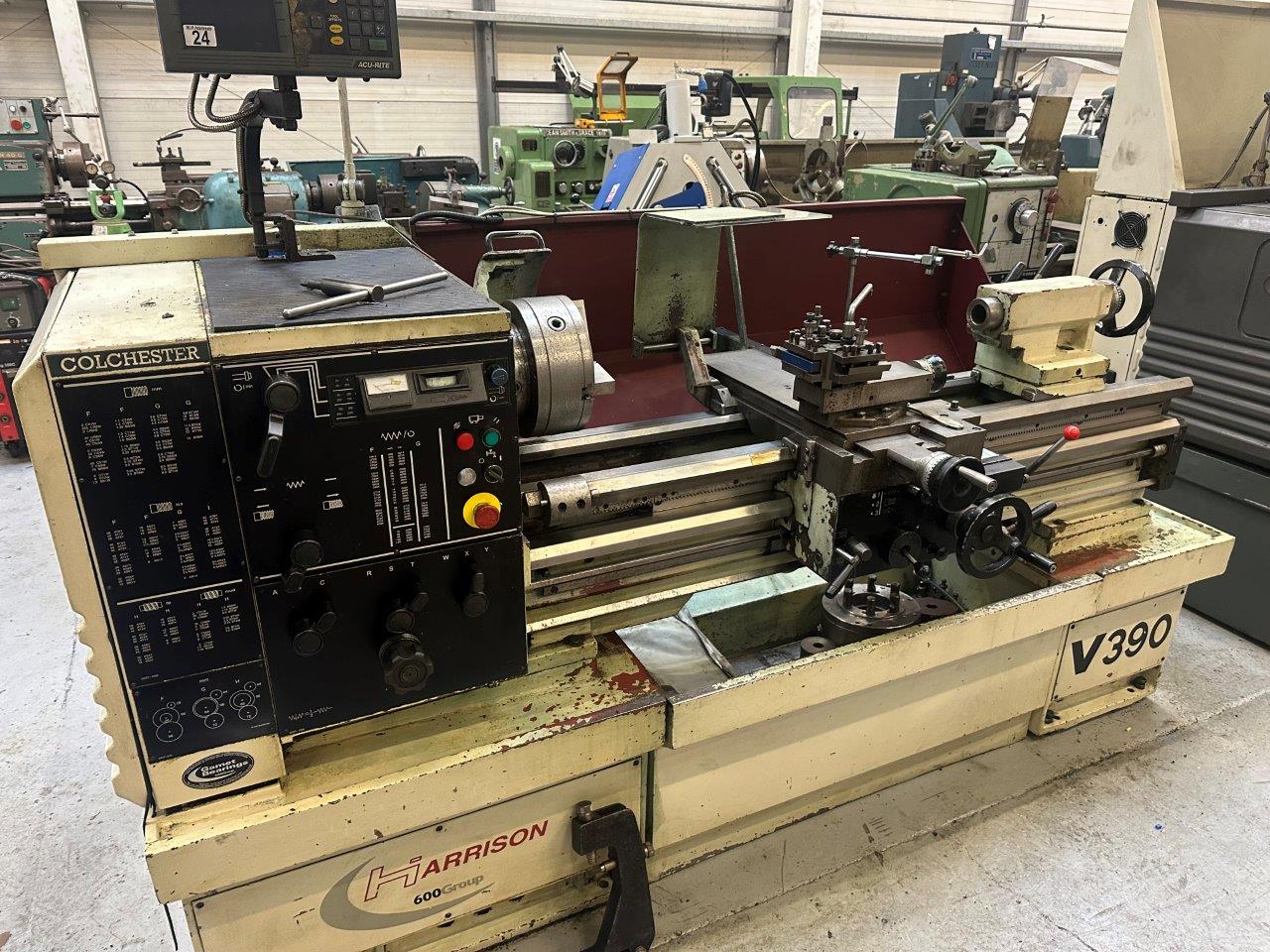

Harrison V390 Vari Speed Gap Bed Lathe (2004) Height of Centres 195mm Bed Length between Centres 1250mm Swing over Bed 400mm Swing in Gap 585mm Swing over Cross Slide 246mm Spindle Bore 54mm Morse Taper in Nose Bush No. 4 MT Speed Ranges 3 Variable Spindle Speeds 14-2500RPM Motor 7.5kW Tailstock Travel 145mm Taper in Tailstock Barrel No.5 MT Machine Weight 1800kg Digital Readout
