MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • GRINDING
  • Model:

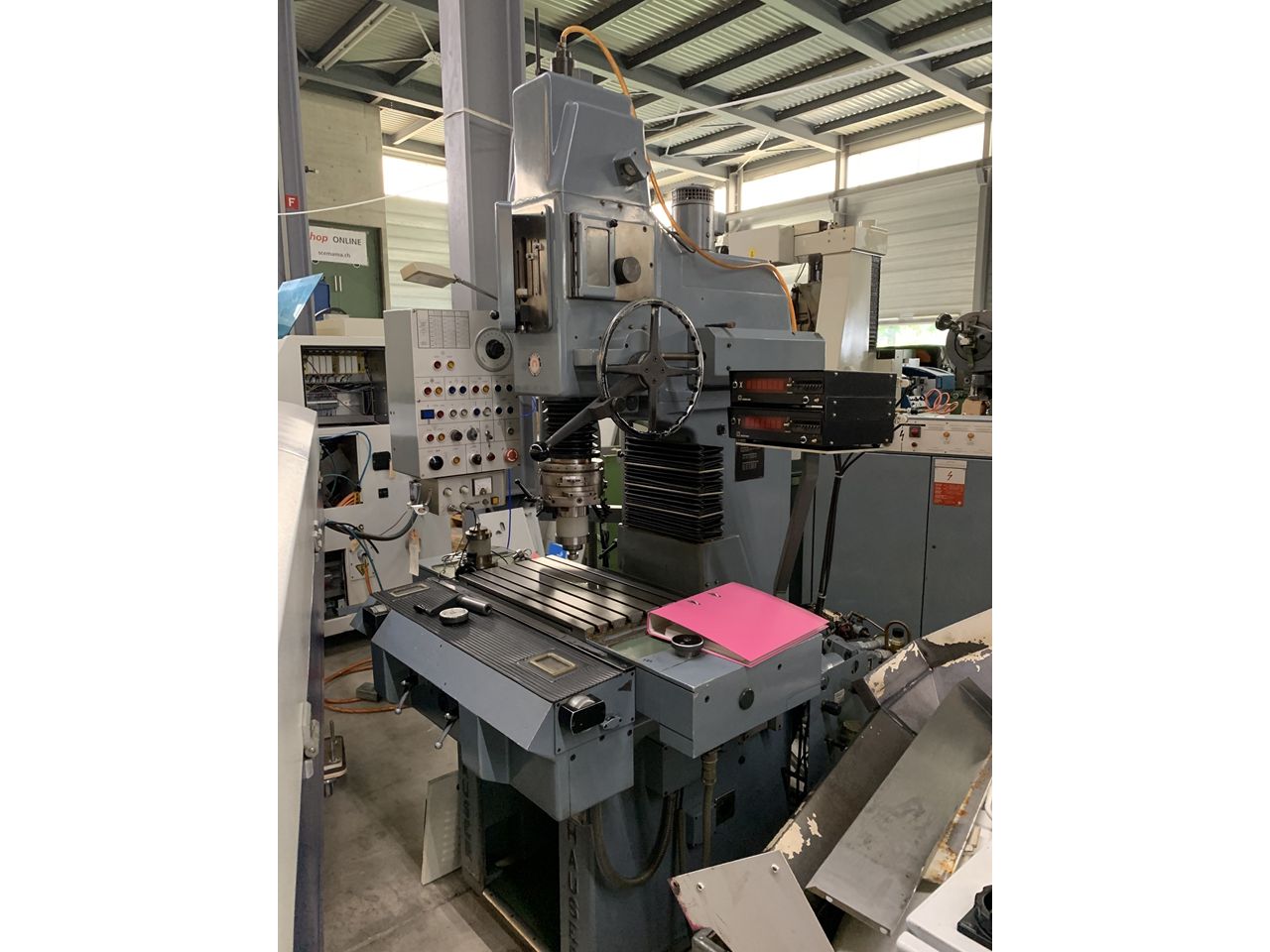

  • HAUSER 3-SMO COORDINATE GRINDING MACHINE
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:

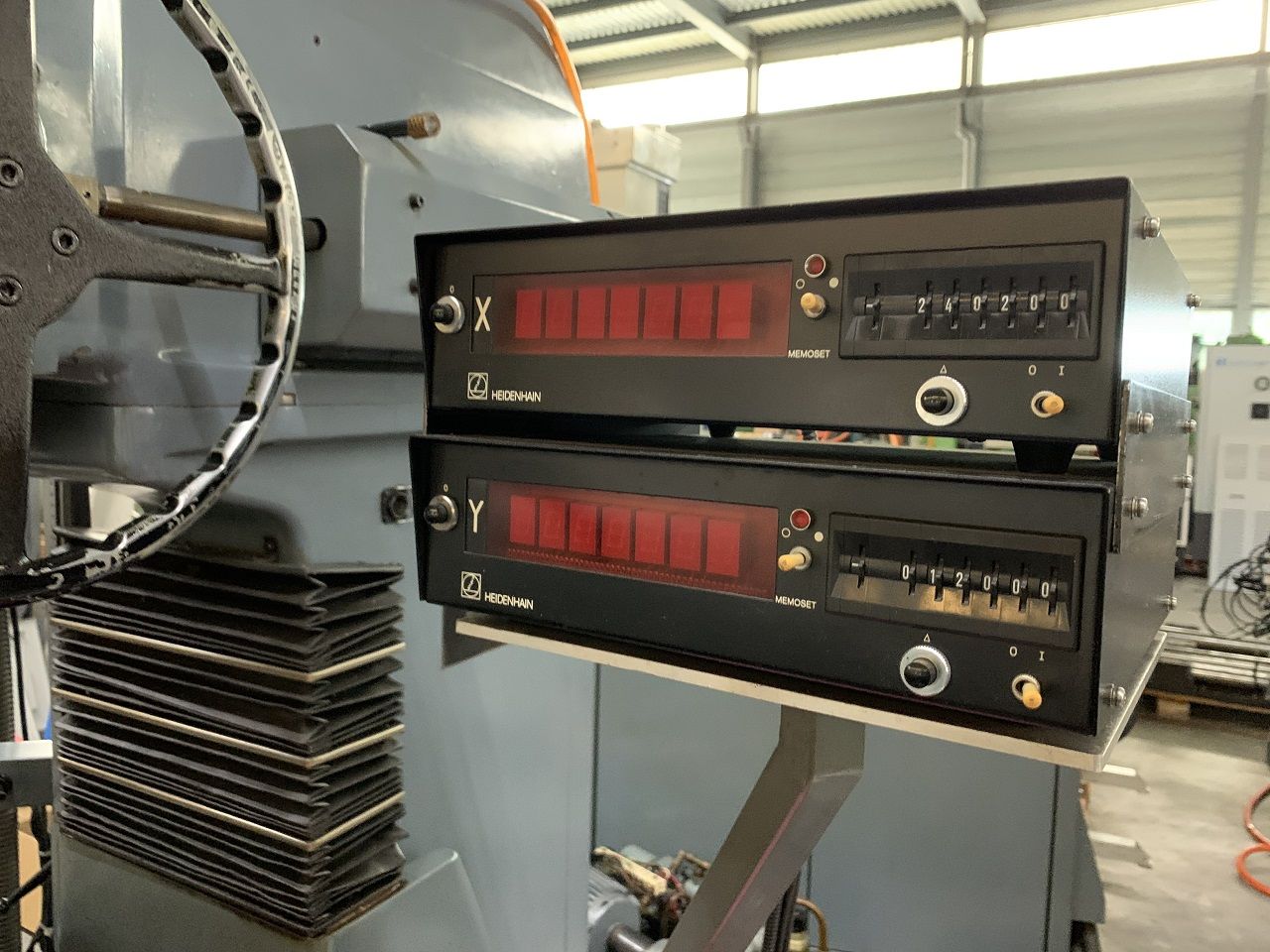

  • Heidenhain digital read-out on 2 axis
  • Price:
  • POA
  • Country:
  • Switzerland

DESCRIPTION

  • INFORMATION

  • Manufacturing origin: Swiss
  • Voltage : 380 / 50 / 3
  • Netweight : 2405 kg
  • Dimensions : 210x150x250 cm
  • Total power : 6,6 kW
  • Custom position : 8460.2920
  •
  • TECHNICAL DATA
  • CAPACITY

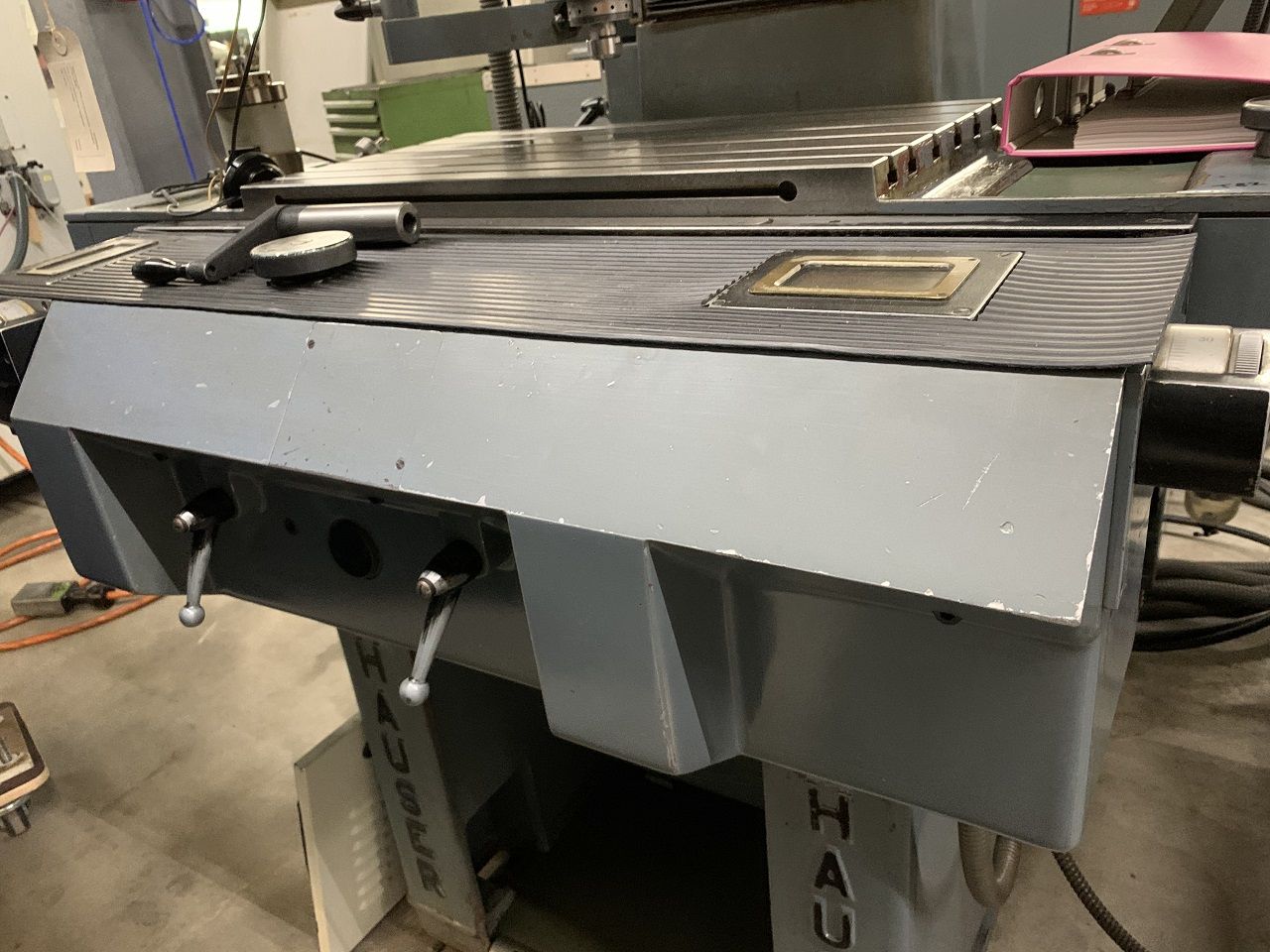

  • Working surface of table : 595×320 mm
  • Range of table travel : 400×250 mm
  • Travel of vertical slide : 400 mm
  • Max. clearance between spindle and table : 420 mm
  • Depth of throat : 310 mm
  • Diameter of largest bore to be ground : 220 mm
  • by means of the adapter plate approx. : 280 mm
  • Maximum taper tobe ground (included angle, in
  • either direction) : 12°

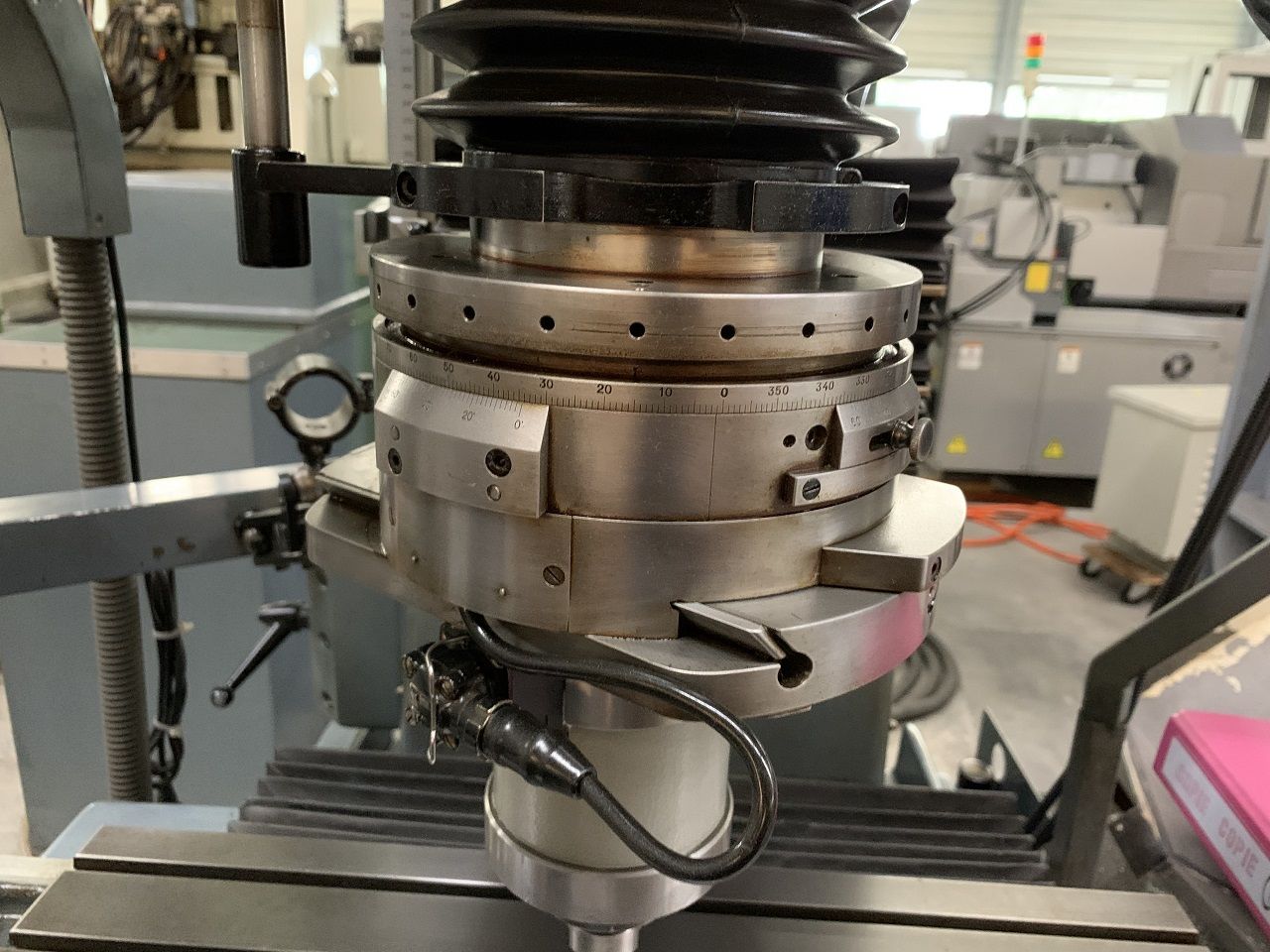

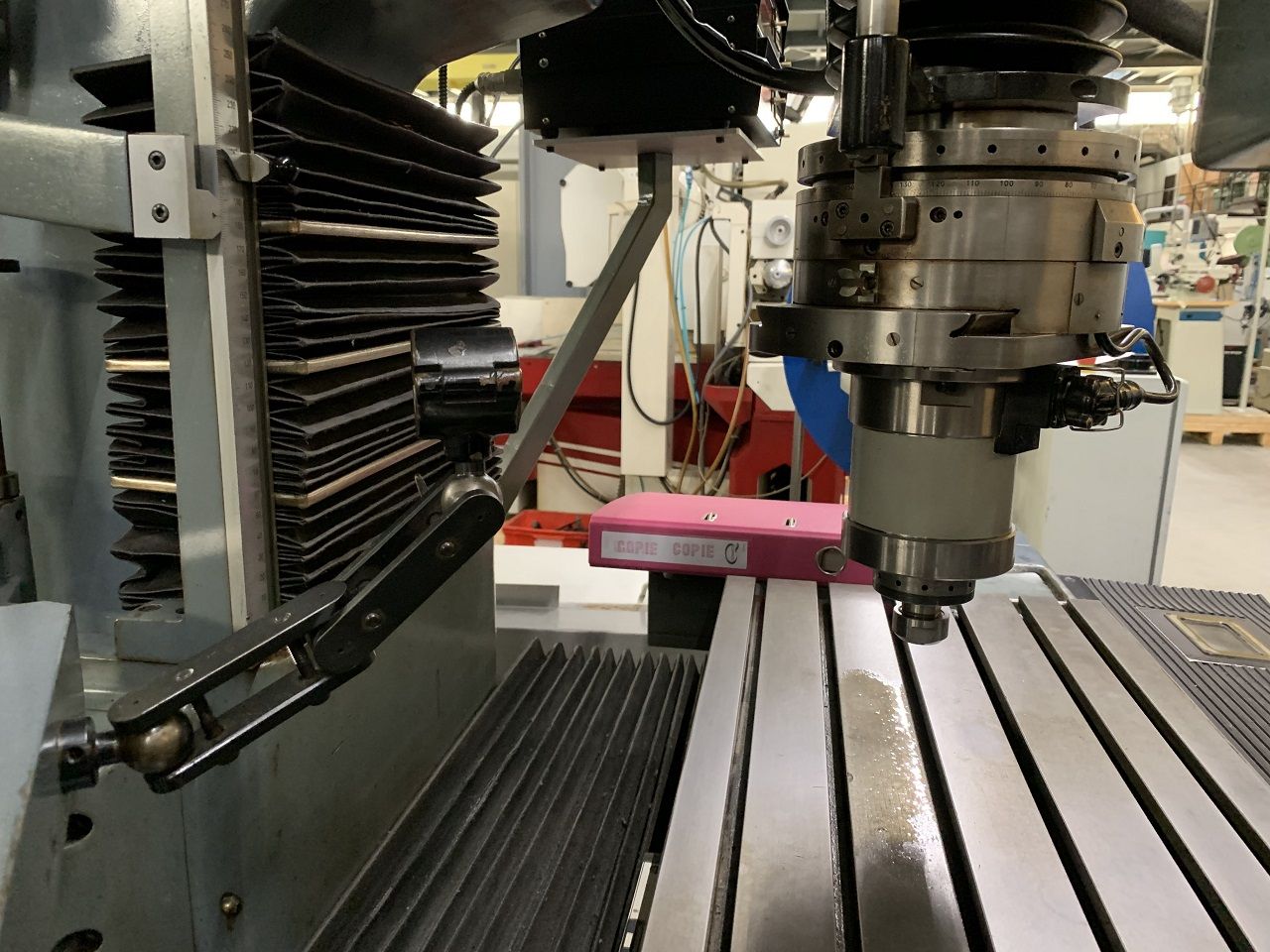

  • GRINDING HEAD
  • Axial stroke of grinding spindle, infinitely
  • variable between : 5 and 90 mm
  • Speed of reciprocating motion, infinitely variable,
  • up to : 6 m/min
  • Speed of planetary motion, infinitely variable
  • between approx. : 10 – 300 rpm
  • Spindle speed, infinitely variable between : 9000 – 80000 rpm
  • with air driven grinding spindle up to max. : 250000 rpm
  • ACCURACY
  • Reading on projection screens and dividing drums : 0,001 mm
  • Guaranteed accuracy of settings : 0,002 mm
  • errors and omissions excepted data given without obligation
  • Inventory no. 2030009, consisting of  :

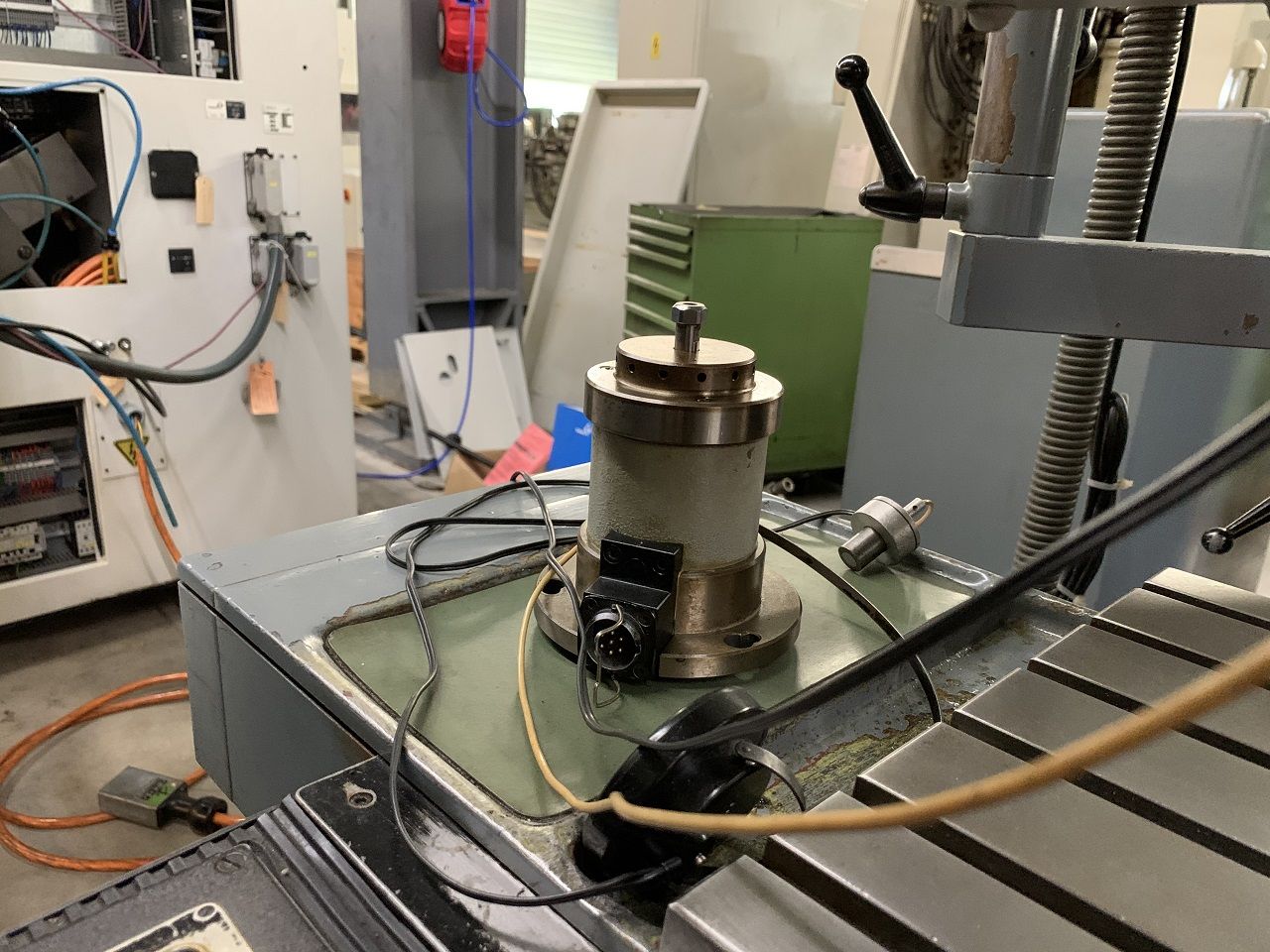

  • 1 frequence converter Aconel S1,5-16

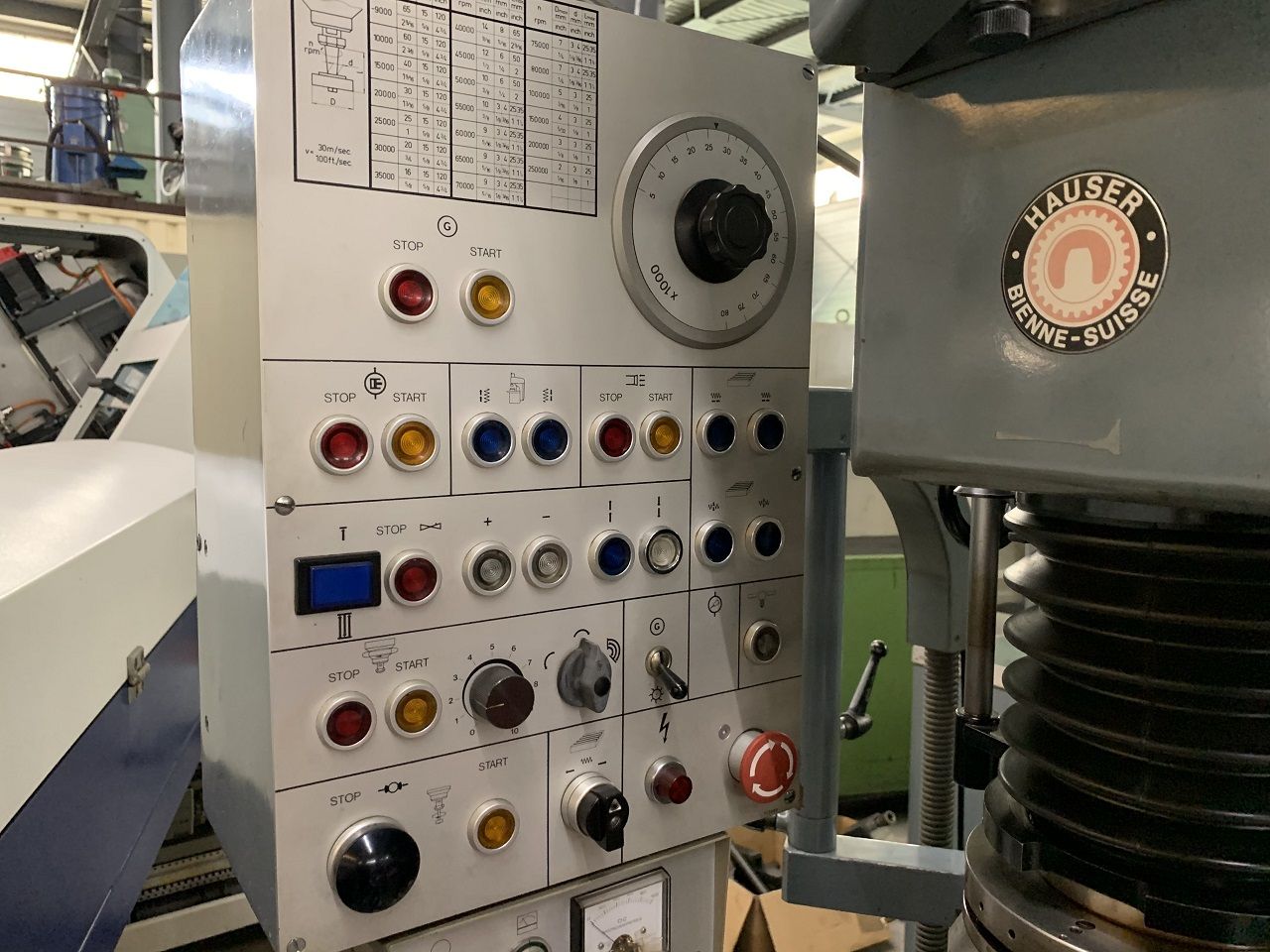

  • 1 separat electrical cabinet
  • 1 separat hydraulic groupe
  • 1 suction de vice réf.2951
  • 1 frequence amplificator to control the grinding through optic and accoustic réf.2320
  • 1 grinding motor S45 9’000 à 45’000 t/min for collet E-19
  • 1 grinding motor S80 40’000 à 80’000 t/min for collet F-6
  • 5 collets E-19 Ø 3 – 4 – 6 – 8 and 10 mm
  • 2 collets F-6 Ø 1,0 – 1,5 – 2,5 – 3,5 – 4,0 – 4,5 and 5,0 mm
  • 1 centering attachment without comparator

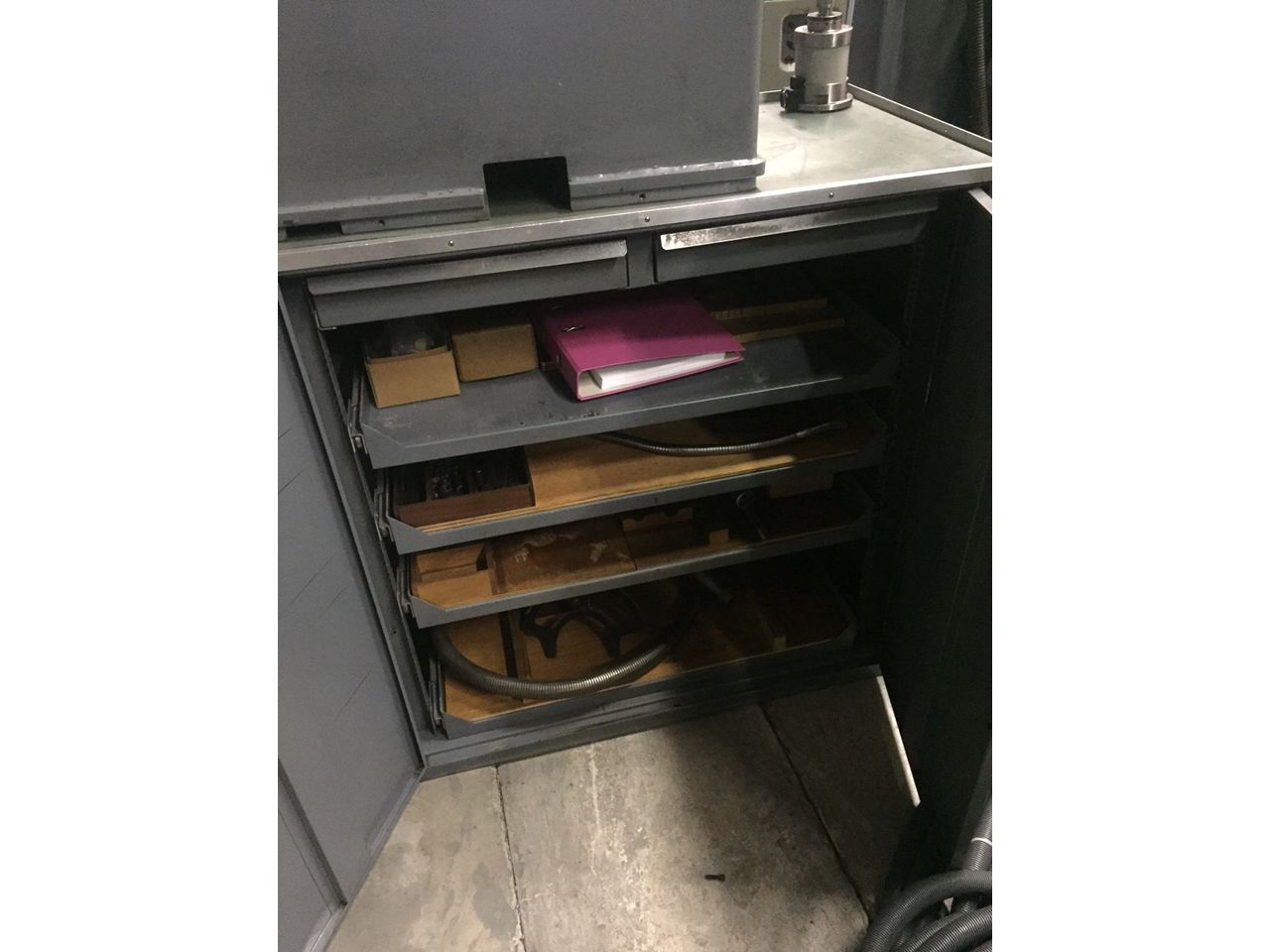

  • 1 toolcabinet
.
