MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • TOOLROOM LATHE SCHAUBLIN TYPE 102 TO W-20
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland

DESCRIPTION

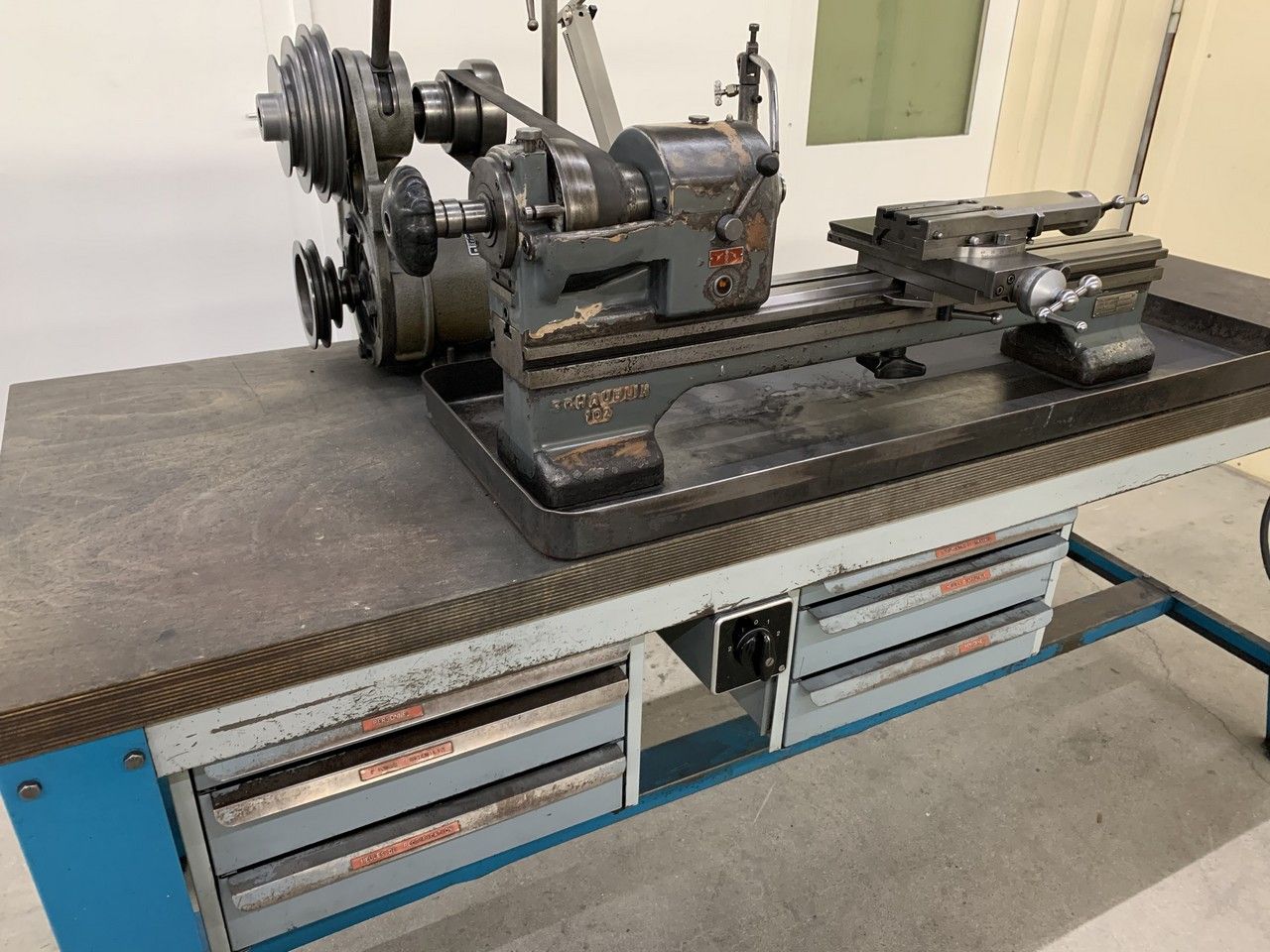

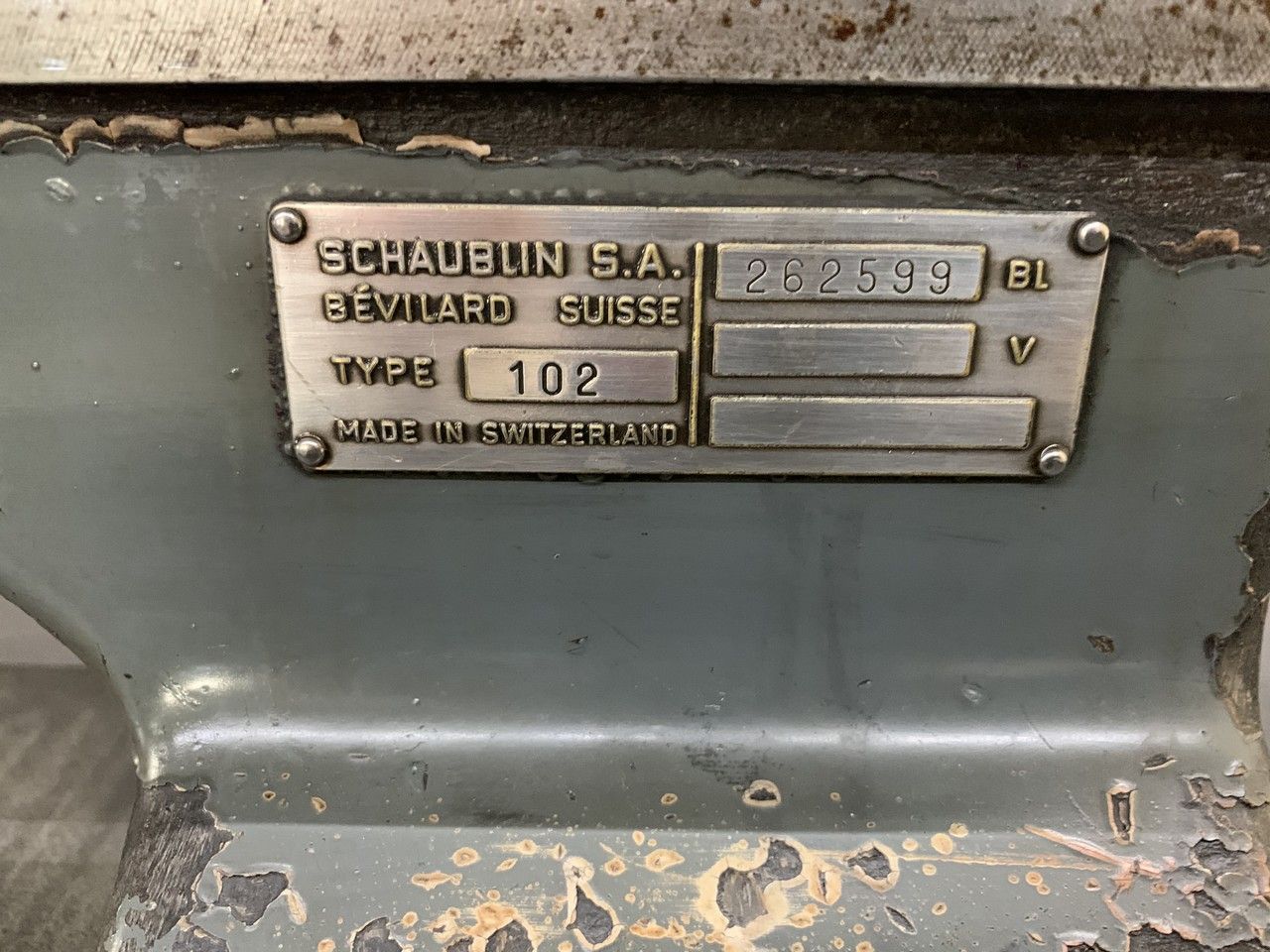

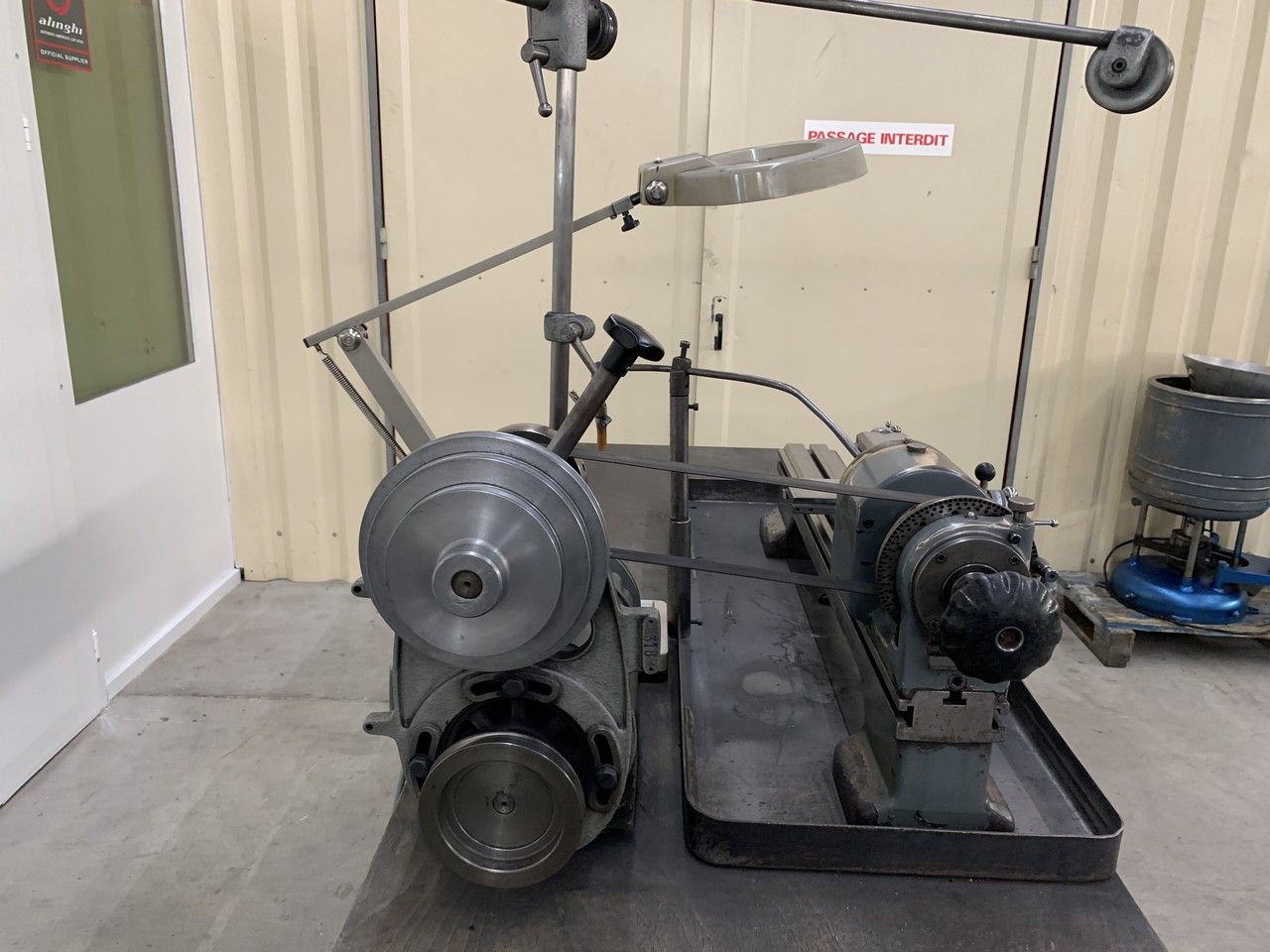

TOOLROOM LATHE "SCHAUBLIN" TYPE 102 TO W-20

Reference: 2200015

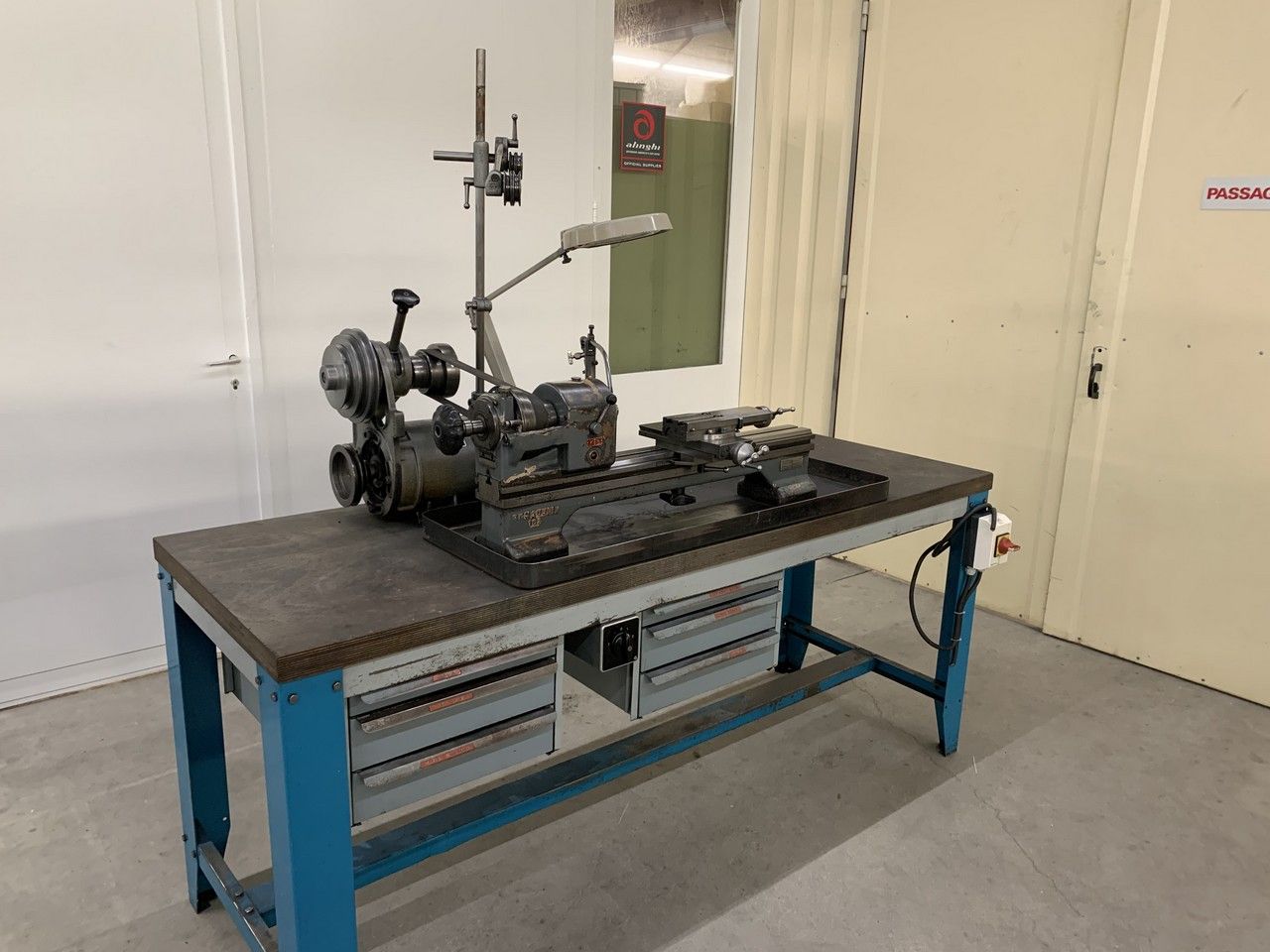

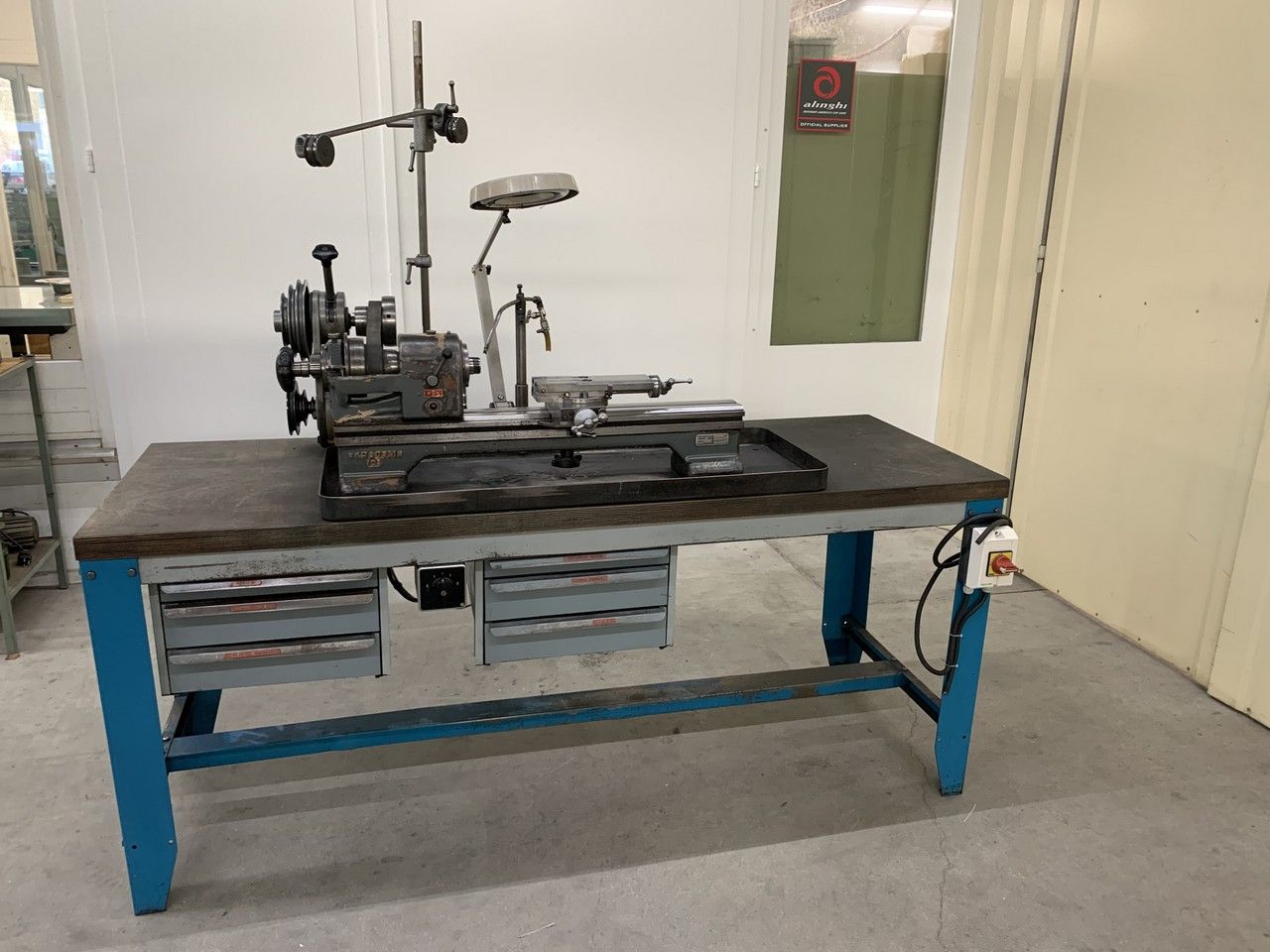

on workbench



Information

Manufacturing origin Swiss
Voltage 380V 50Hz 3Ph
Netweight 300 kg
Customs position 8458.1930

TECHNICAL DATA

Capacities :
- height of centres 102 mm
- distance between centre, standard headstock
type W 470 mm
- distance between centres, headstock type W with
reduction unit 375 mm
- swing over bed 200 mm
- swing over carriage 120 mm
Bed :
- height-width-length 168-100-1000 mm
cast-iron bed with ground inverted-V profile
Headstocks :
- spindle nose for collets W-25
- maximum bore through collet 19.0 mm

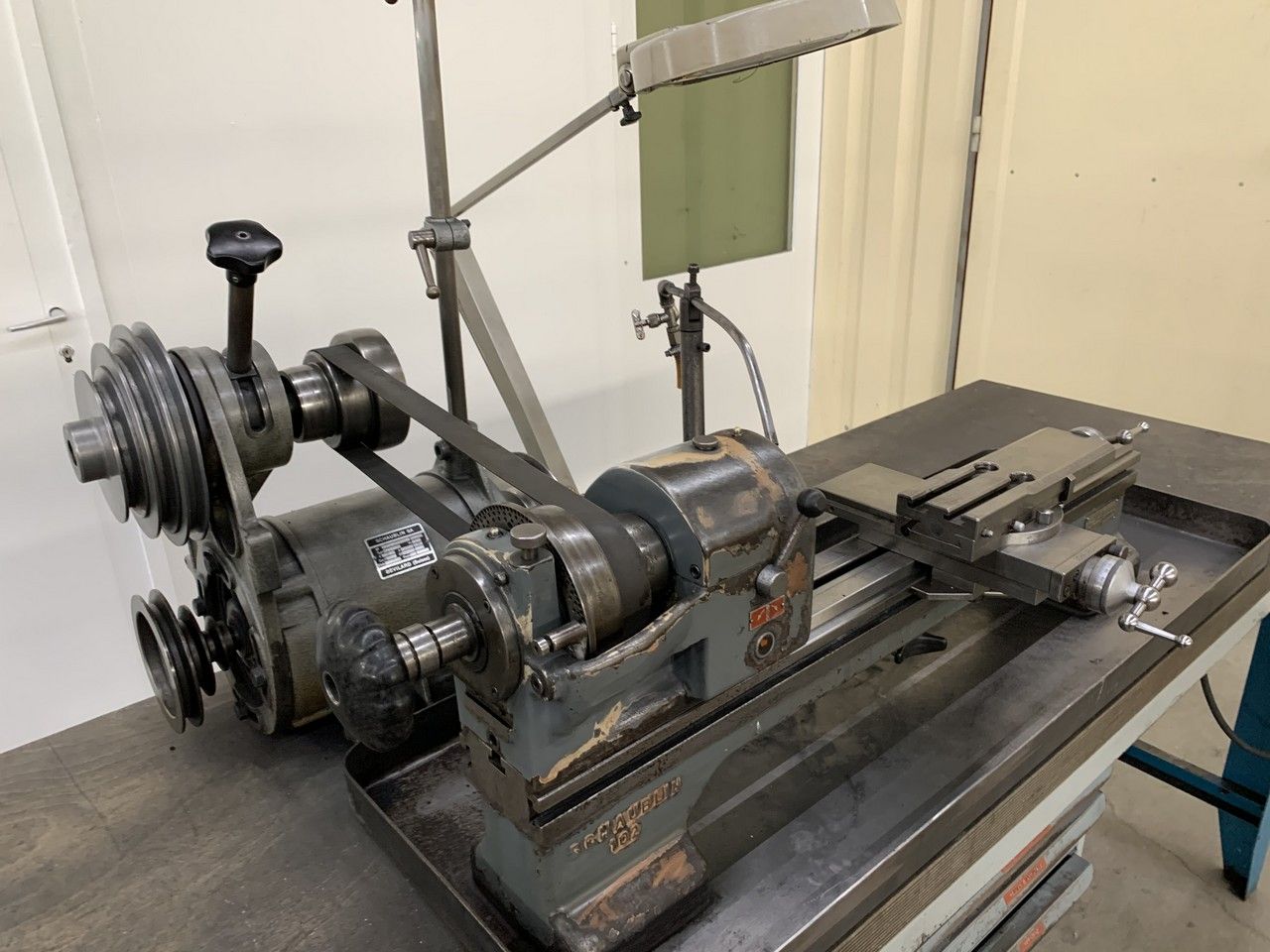

- headstock with reduction unit, ratio 1:5
Carriages :
- stroke of longitudinal tool slide 90 mm
- stroke of transverse tool slide 100 mm
- size of tools 12x12 mm
Tailstocks :
- internal taper of tailstock spindle Morse 2
- spindle stroke, screw- and handwheel-operated 80 mm
errors and omission excepted-data given without obligation
