MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Raster
  • Model:
  • RASTER 45/550 SL-4S
  • Condition:
  • Used
  • YOM:
  • 1981
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • stock no.: 1131-0058

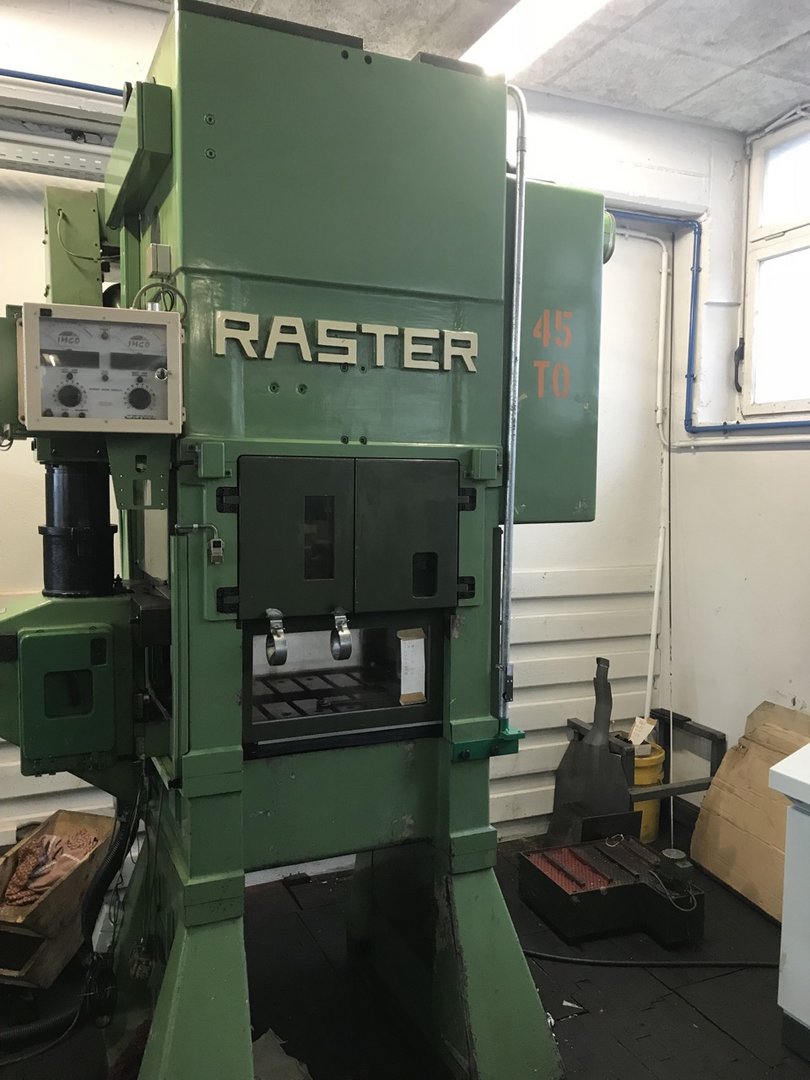

  • Machine type: High speed press
  • Manufacturer: RASTER
  • Type: 45/550 SL-4S
  • Serial no.: 104680
  • YOM: 1981
  • Delivery time: immediately
  • Location: Germany
  • Technical details:
  • Press capacity: 45 ton
  • Ram stroke adjustable: 10 - 40 mm

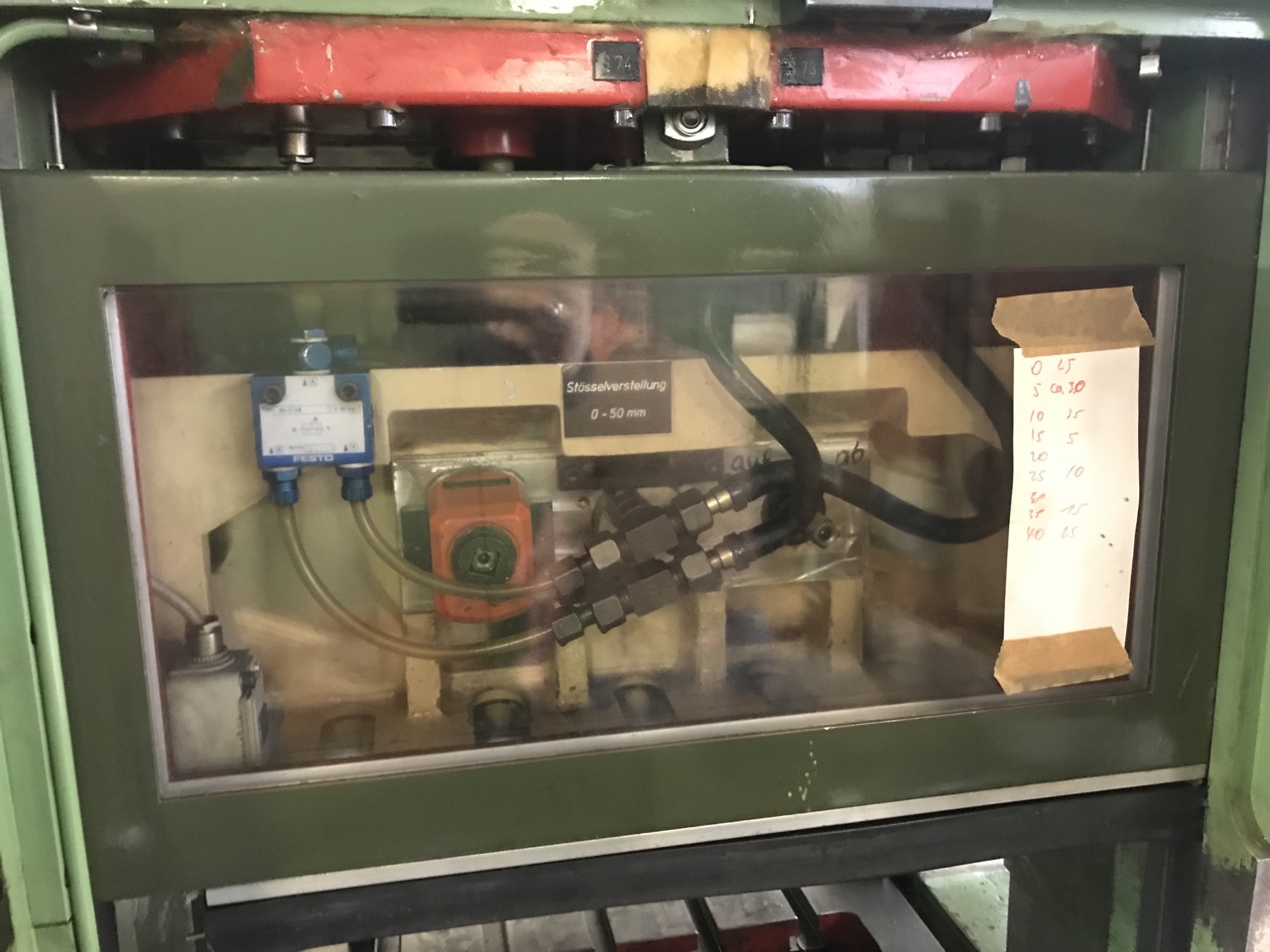

  • Slide adjustment: 50 mm
  • Shut height (stroke down, adjustment up): 220 - 300 mm
  • Free frontal opening L-R: 560 mm

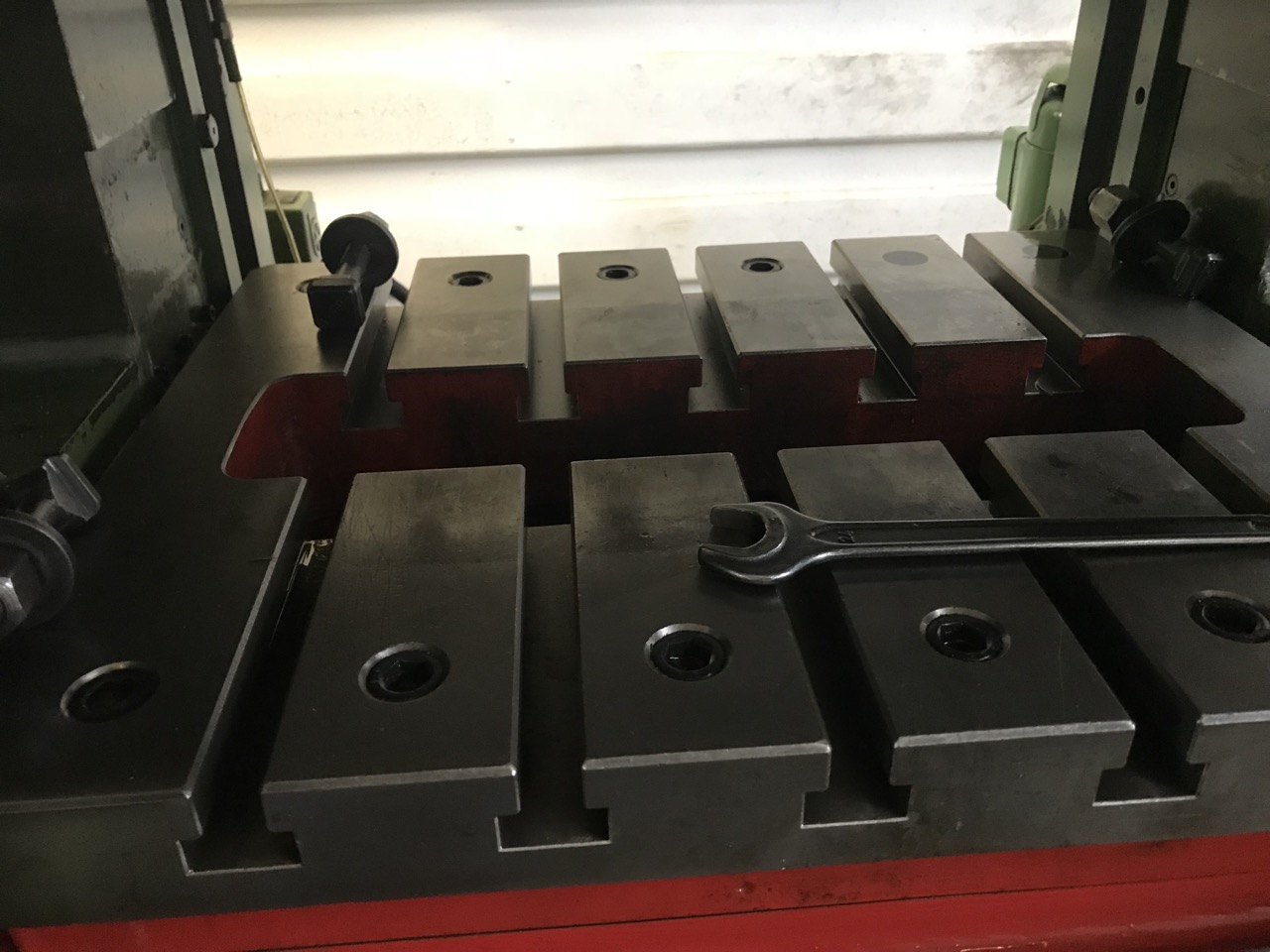

  • Table surface area : 550 x 450 mm
  • Slide area: 550 x 360 mm
  • Hole in table: 450 x 100 mm
  • Number of strokes: 100 - 500 s.p.m.
  • Required power: 7,5 kW
  • Weight of machine approx.: 6,2 ton



.
+ request more information
