Manufacturer ZAYER
Model 30 KMU-5000
Year 1999
CNC HEIDENHAIN TNC-430PA
Table Surface 4.700 x 1.200 mm.
Travels (X/Y/Z) 3.400/1.250/2.000 mm.
Quill Travel (W Axis) 500 mm.
Taper ISO-50
Main Motor Power 37 kW

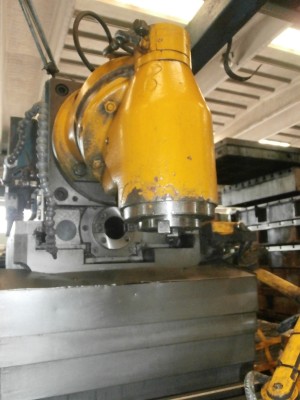

Automatic Head 45º INCLUDED
Aut...
07294
Max weight on center table Ton 50
Table dimensions mm 3600x3600
Longitudinal stroke (axis V) mm 2200
Axis B (rotation) 360 degrees
Increase Axis B 170 degrees/min
Rapid feed speed in continuous mm/min 800
Height of table mm 1345
USED MACHINE
