MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DECKEL
  • Model:

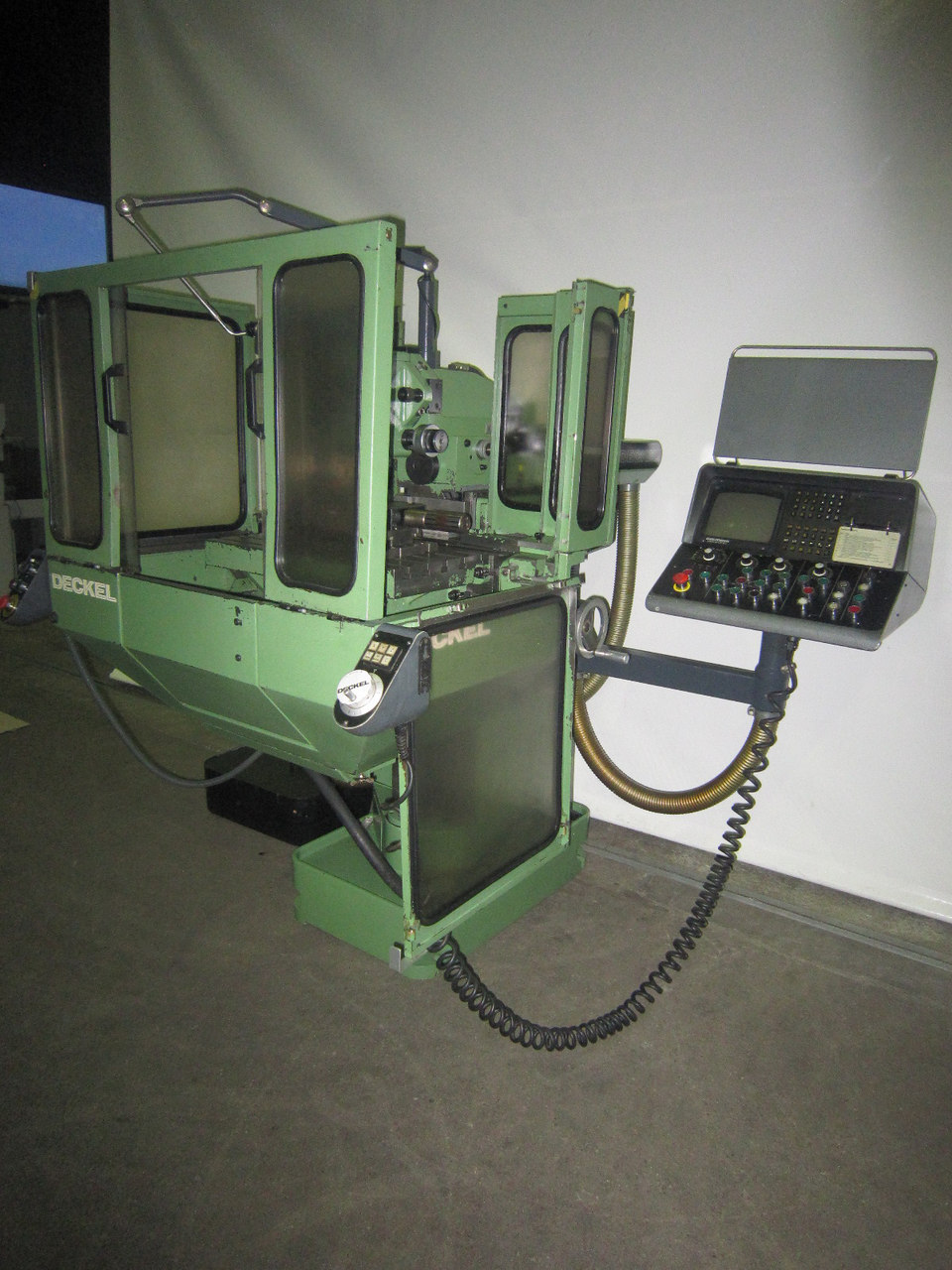

  • 017659 - DECKEL FP 2 NC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

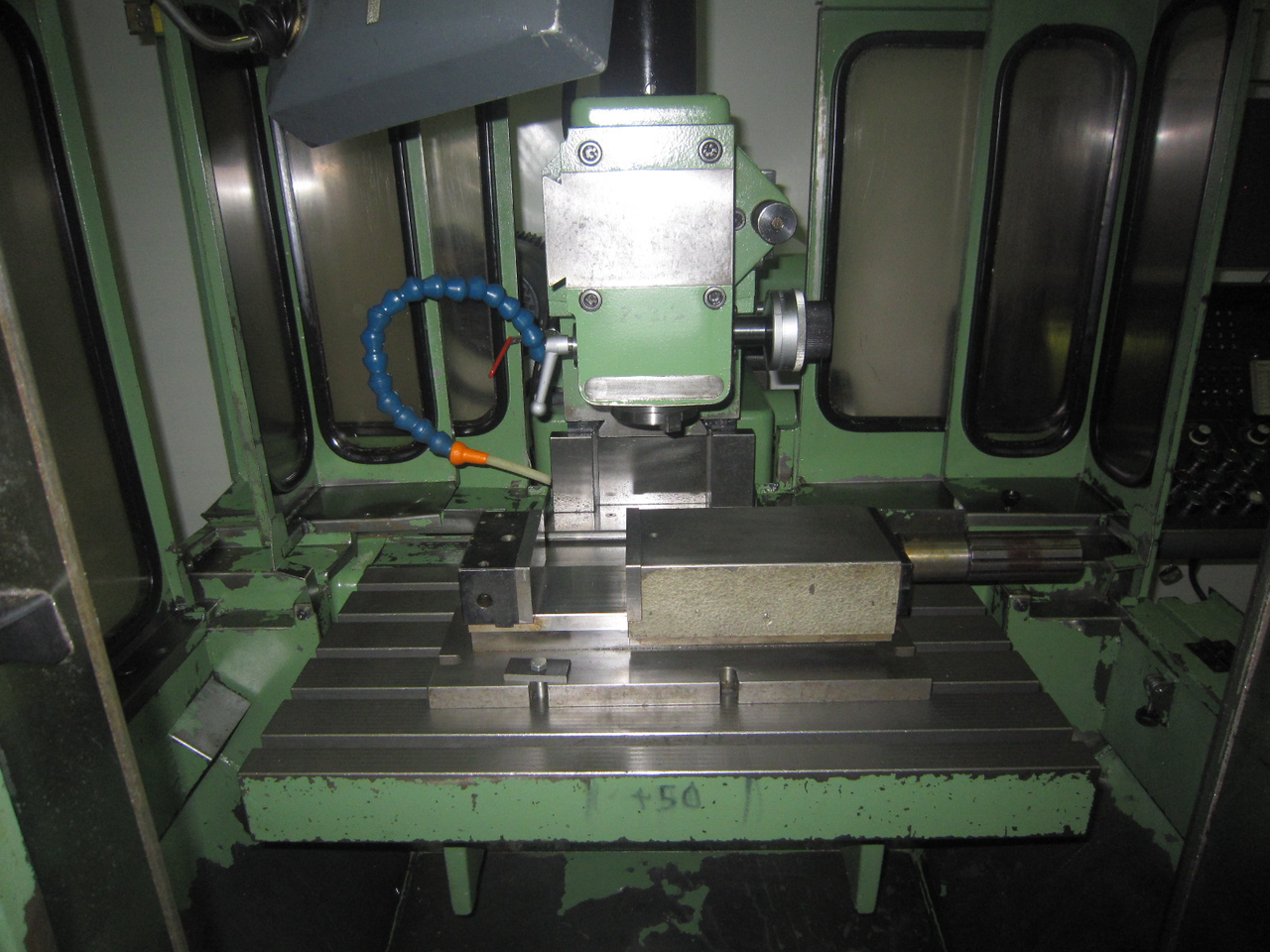

Table length: 632 mm.
Table width: 277 mm.
Longitudinal travel (X-axis): 300 mm.
Transversal travel (y axis): 220 mm.
Vertical travel (z axis): 400 mm.
Table load max.: 400 kg.
spindle to table: 93 - 525 mm.
number (steps): 21.
vertical from: 31.5 t/min.
up to: 2000 mm/min.
longitudinal from: 2 mm/min.
transversal from: 2 mm/min.
vertical from: 2 mm/min.
Rapid traverse:: 4 m/min.
Vertical quill travel: 60 mm.
Stroke of horizontal spindle: 65 mm.
Voltage 50 Hz 3x: 380 Volt.
Milling spindle motor: 1.6 / 2 kW.
Machine's weight about: 1215 kg.
Length: 2500 mm.
Width: 2100 mm.
Height: 1800 mm.
Vice: width: 125 mm.
