MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DECKEL
  • Model:

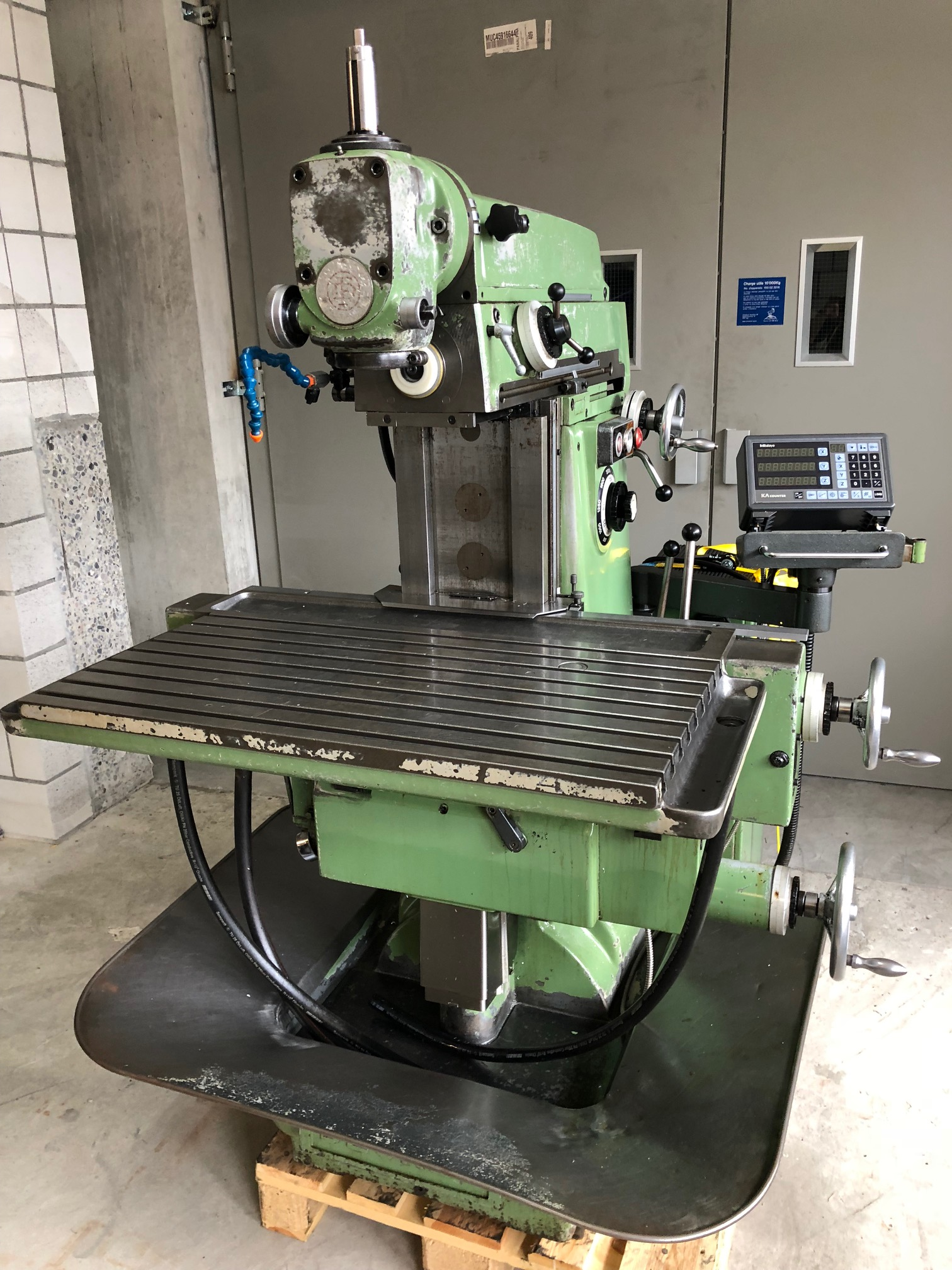

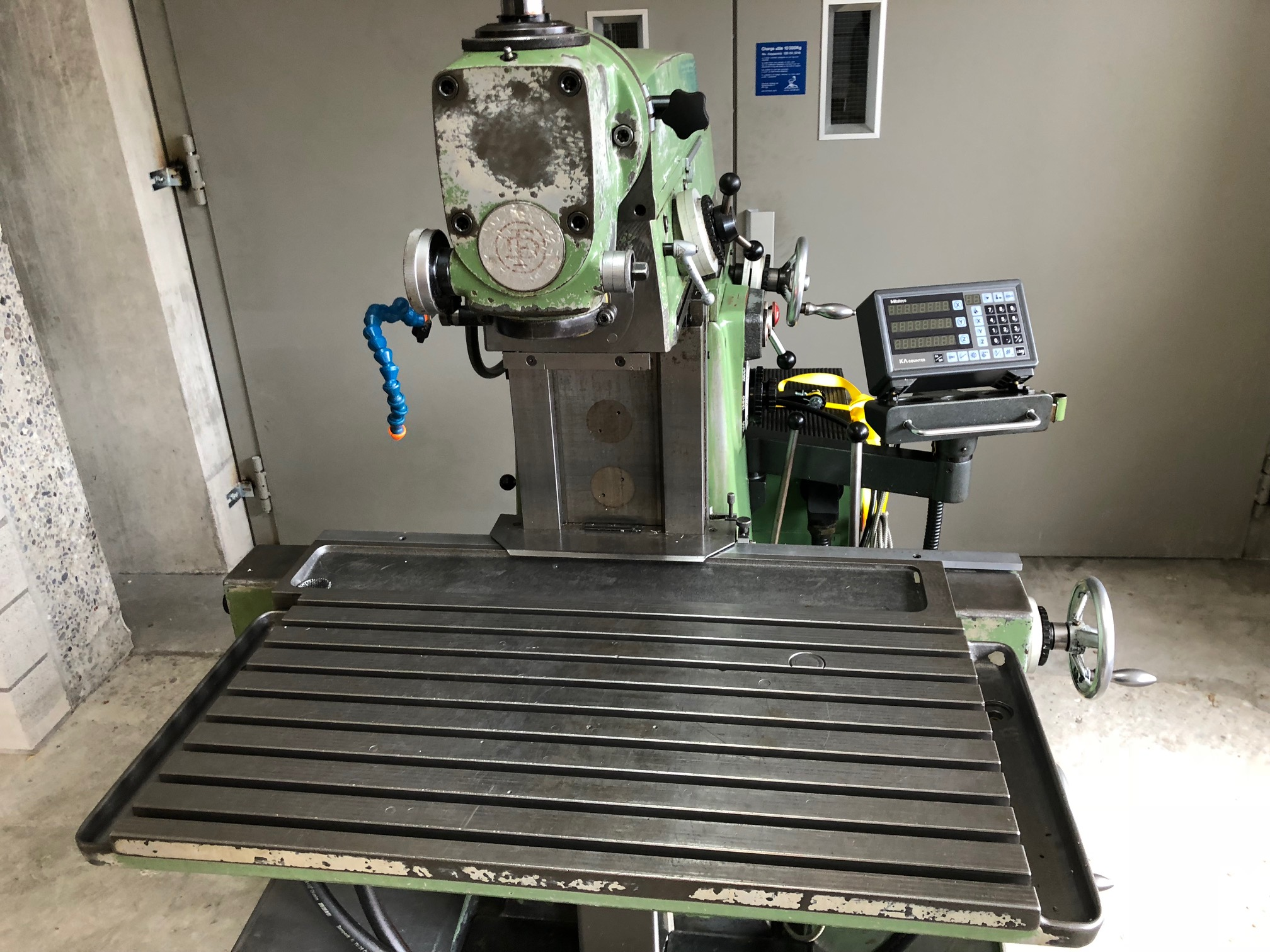

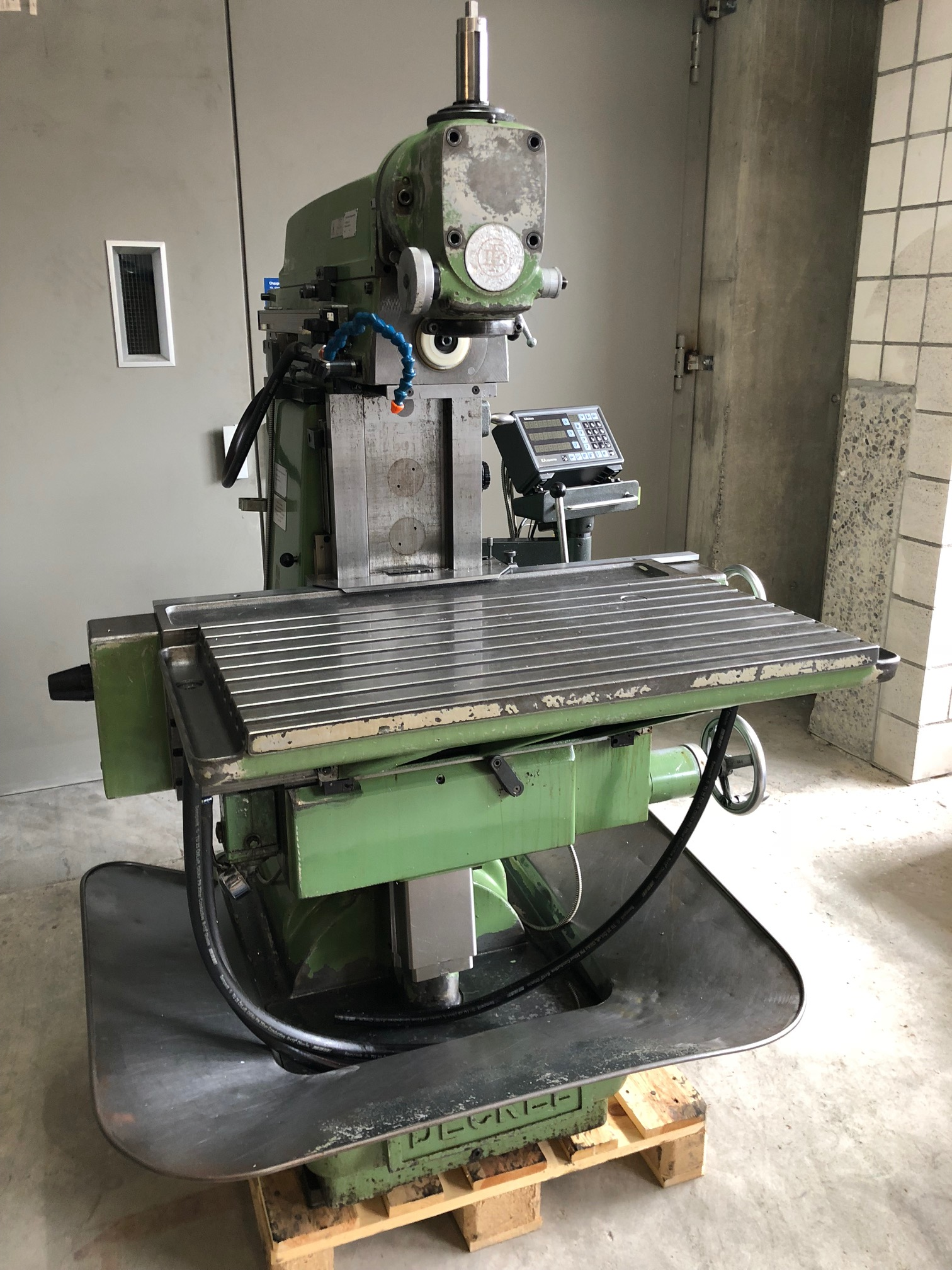

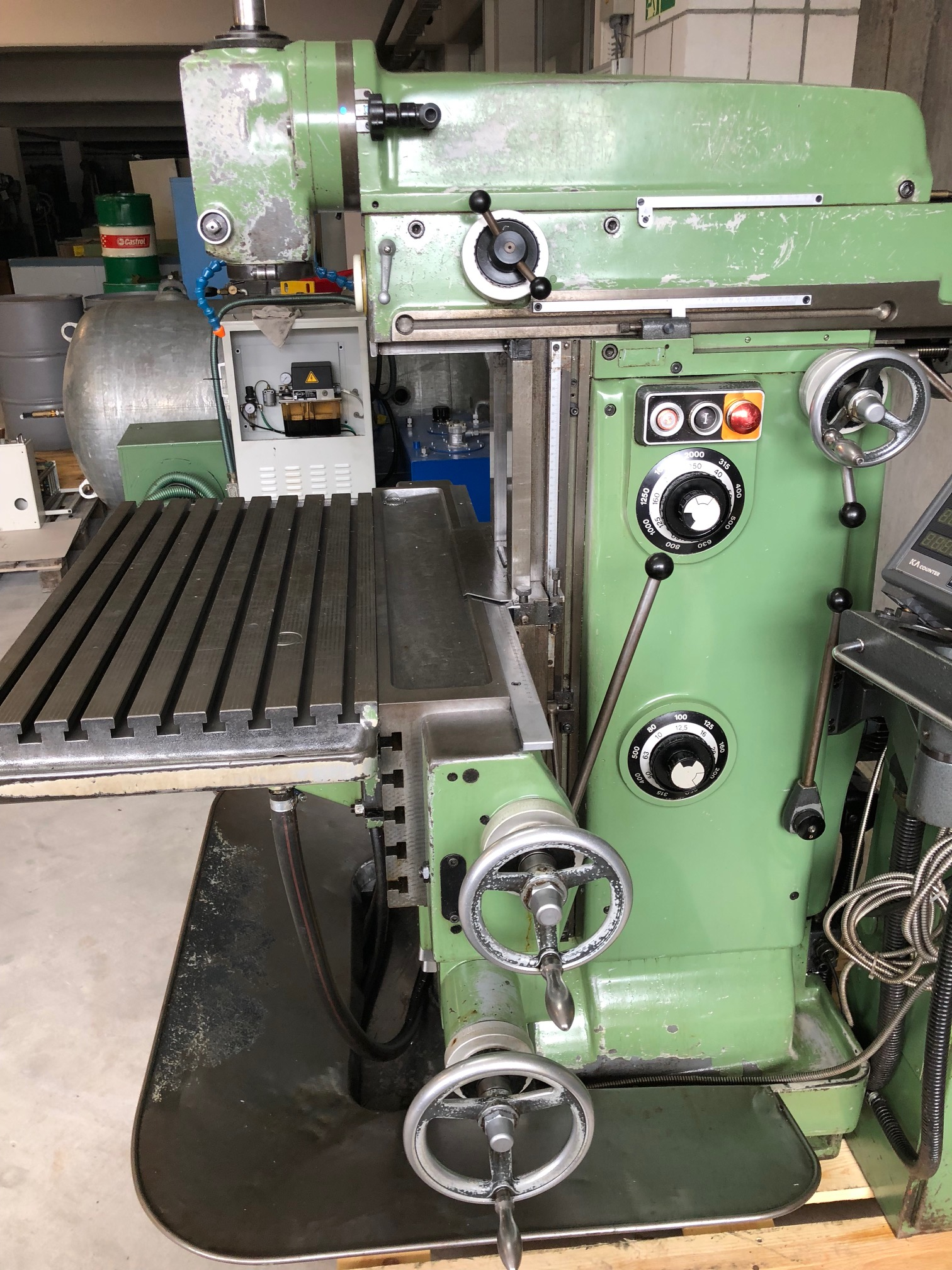

  • 020270 - DECKEL FP 3
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 600 mm.
Table width: 350 mm.
Longitudinal travel (X-axis): 500 mm.
Transversal travel (y axis): 300 mm.
Vertical travel (z axis): 380 mm.
Distance from vertical spindle to table: 470 mm.
number (steps): 18.
from: 40 t/min.
up to: 500 mm/min.
Taper in spindle CN: 40.
Feeds steps:: 18.
longitudinal from: 10.0 mm/min.
transversal from: 10.0 mm/min.
vertical from: 10.0 mm/min.
Vertical quill travel: 100 mm.
longitudinal: 1.5 m/min.
transversal: 1.5 m/min.
vertical: 1.5 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 4.0 CV.
Machine's weight about: 1100 kg.
Length: 2200 mm.
Width: 1800 mm.
Height: 2000 mm.

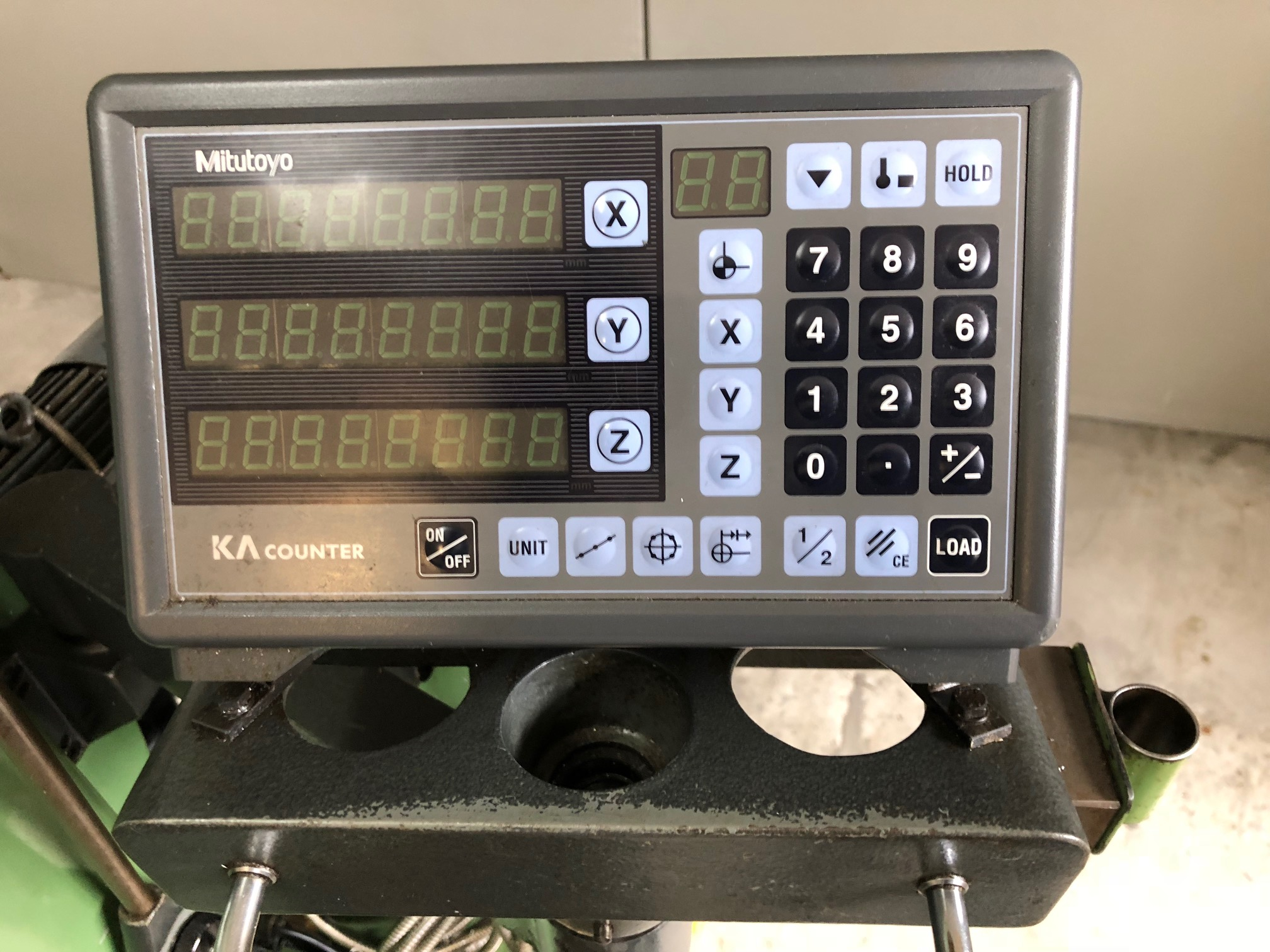

Digital readout number of axis:: 3.
Manufacturer: Mitutoyo.
