MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kellenberger
  • Model:

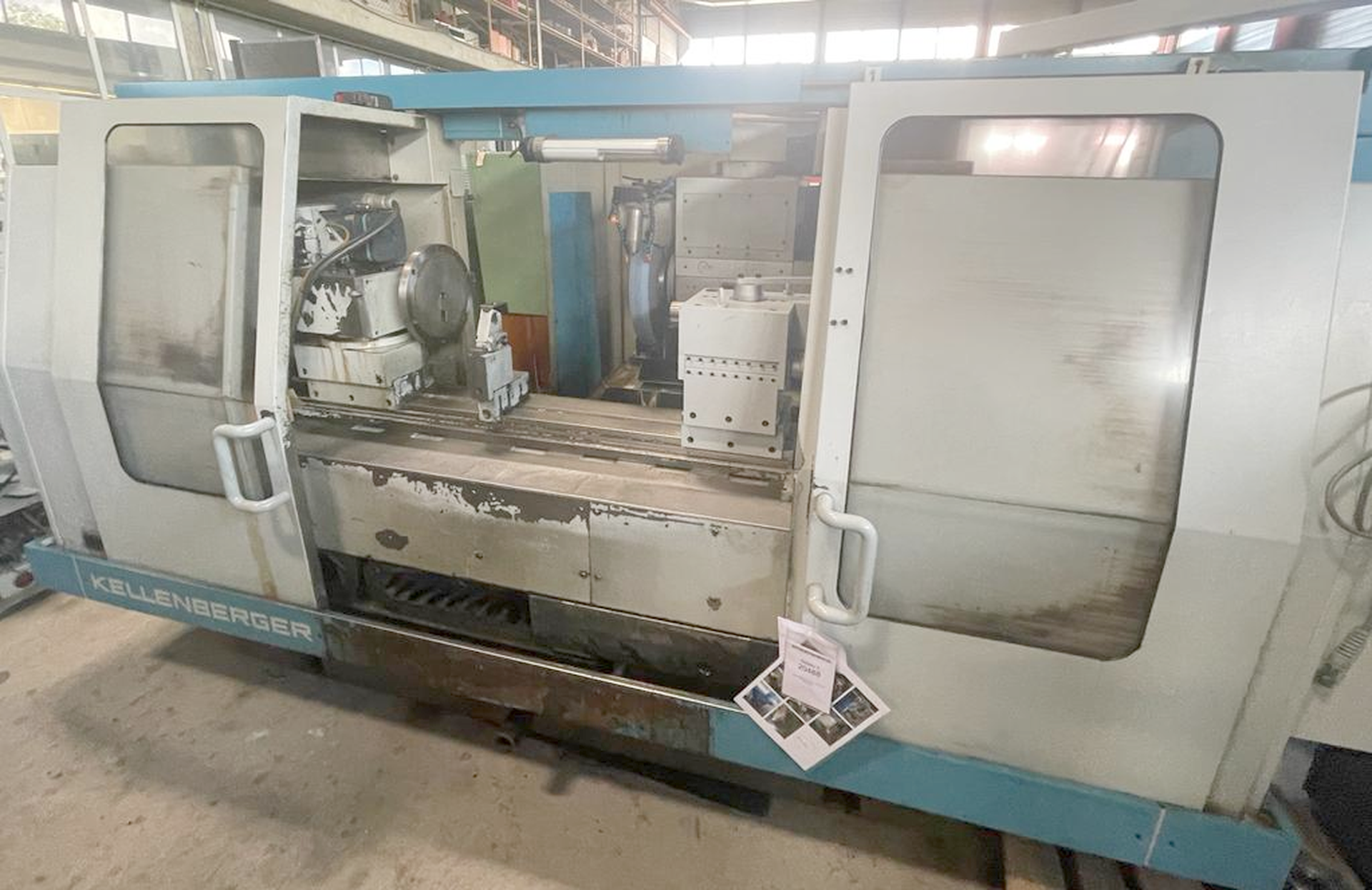

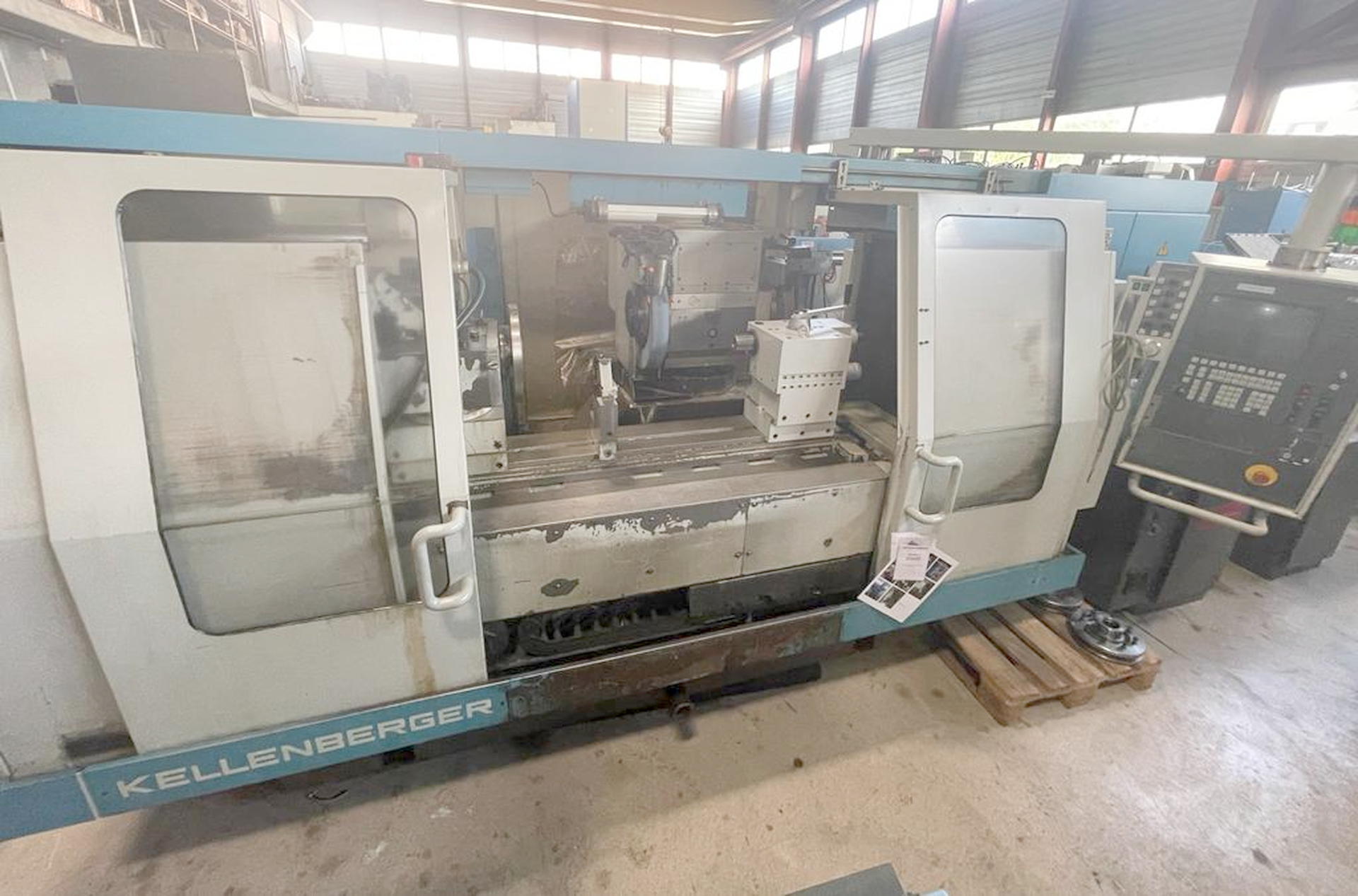

  • 020488 - KELLENBERGER UR-H 305 x 1000
  • Condition:
  • 1
  • YOM:
  • NA

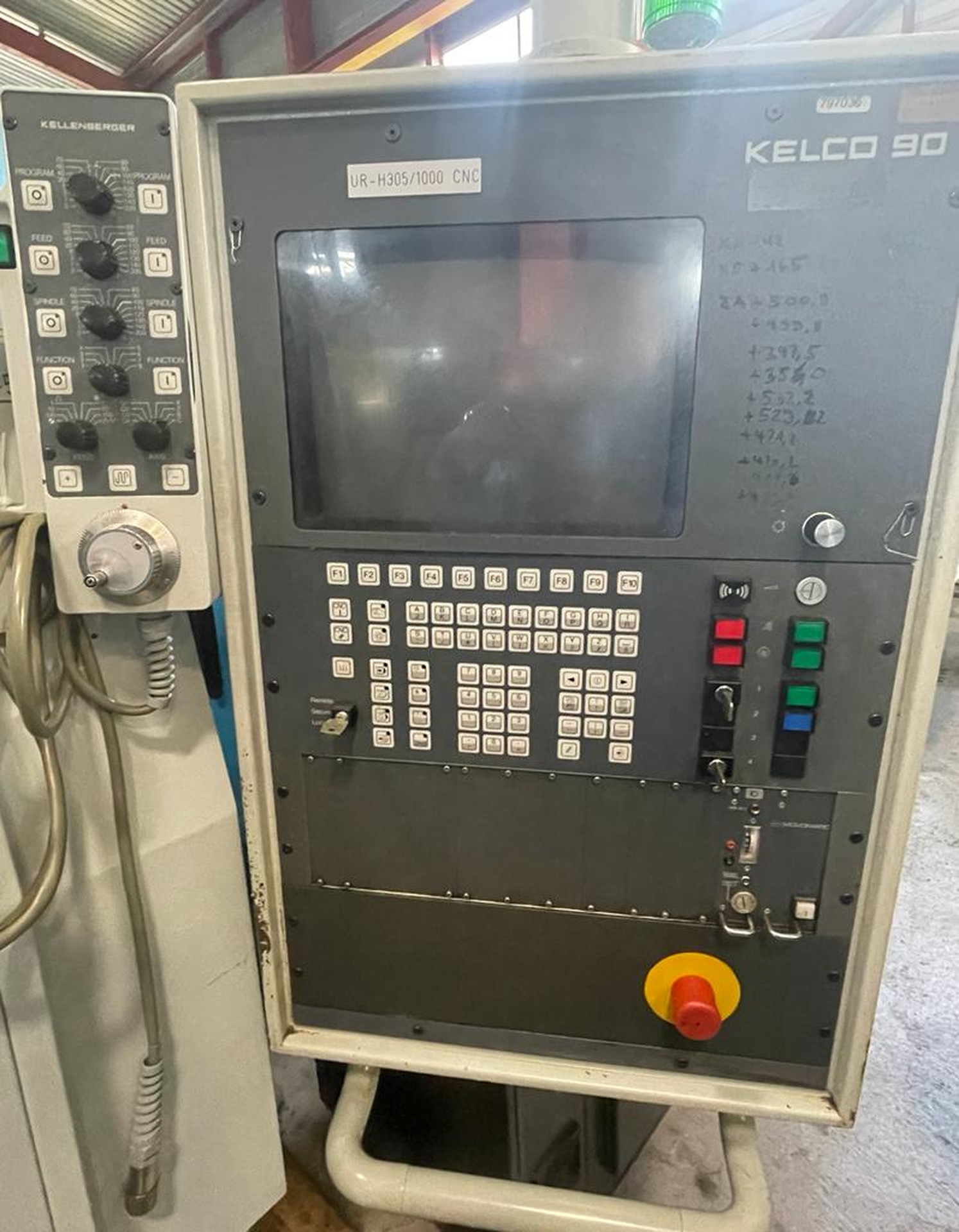

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 225 / 305 mm.
Distance between centres: 1000 mm.
Z axis: 16 m/min.
X axis: 8 m/min.
Workpiece weight on centres max.: 200 kg.
Diameter: 400 mm.
Width: 450 mm.
Bore: 127 mm.
B axis swivelling range: +30 / -190 °.
up to: 500 t/min.

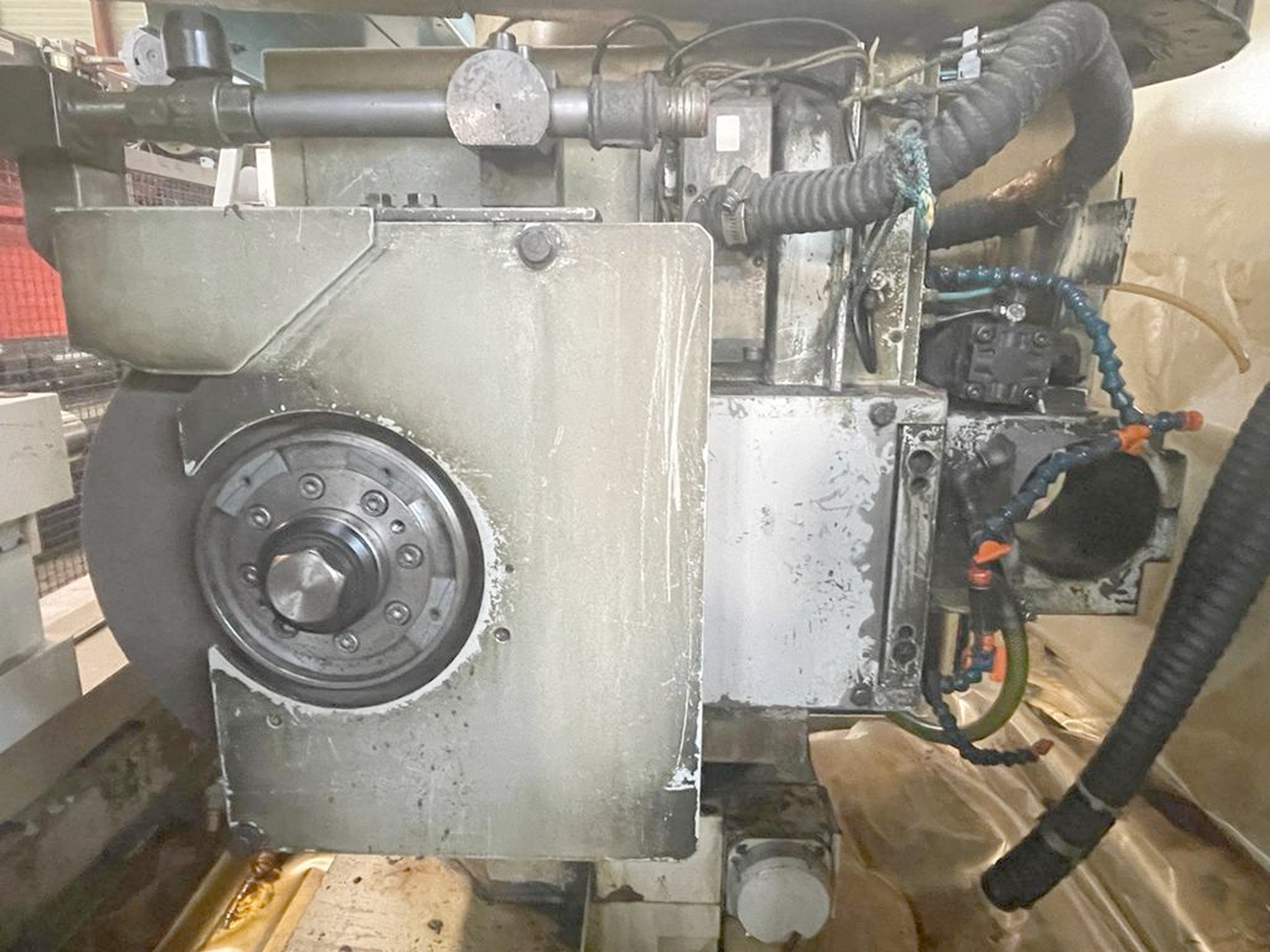

Rotatable grinding spindle head (b-axis): 270 °.
Peripheral speed: 45 m/s.
from: 5 t/min.
rotatable: -10 / +100 °.
taper in spindle: MT: 5.
Taper in tailstock:: 4 CM.
Tailstock travel of barrel: 50 mm.
Resolution: µm.
Max. table angular displacement: -1 / +11 °.
Voltage 50 Hz 3x: 380 Volt.
Total power required: 25 kW.
Machine's weight about: 6000 kg.
Length: 550 mm.
Height: 900 mm.
Aumentare: 80 mm.
Automatic setting tool: KELSET.
Macnetic chuck diameter: (2x) 300 / 500 mm.
