MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 021911 - SCHAUBLIN 53
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

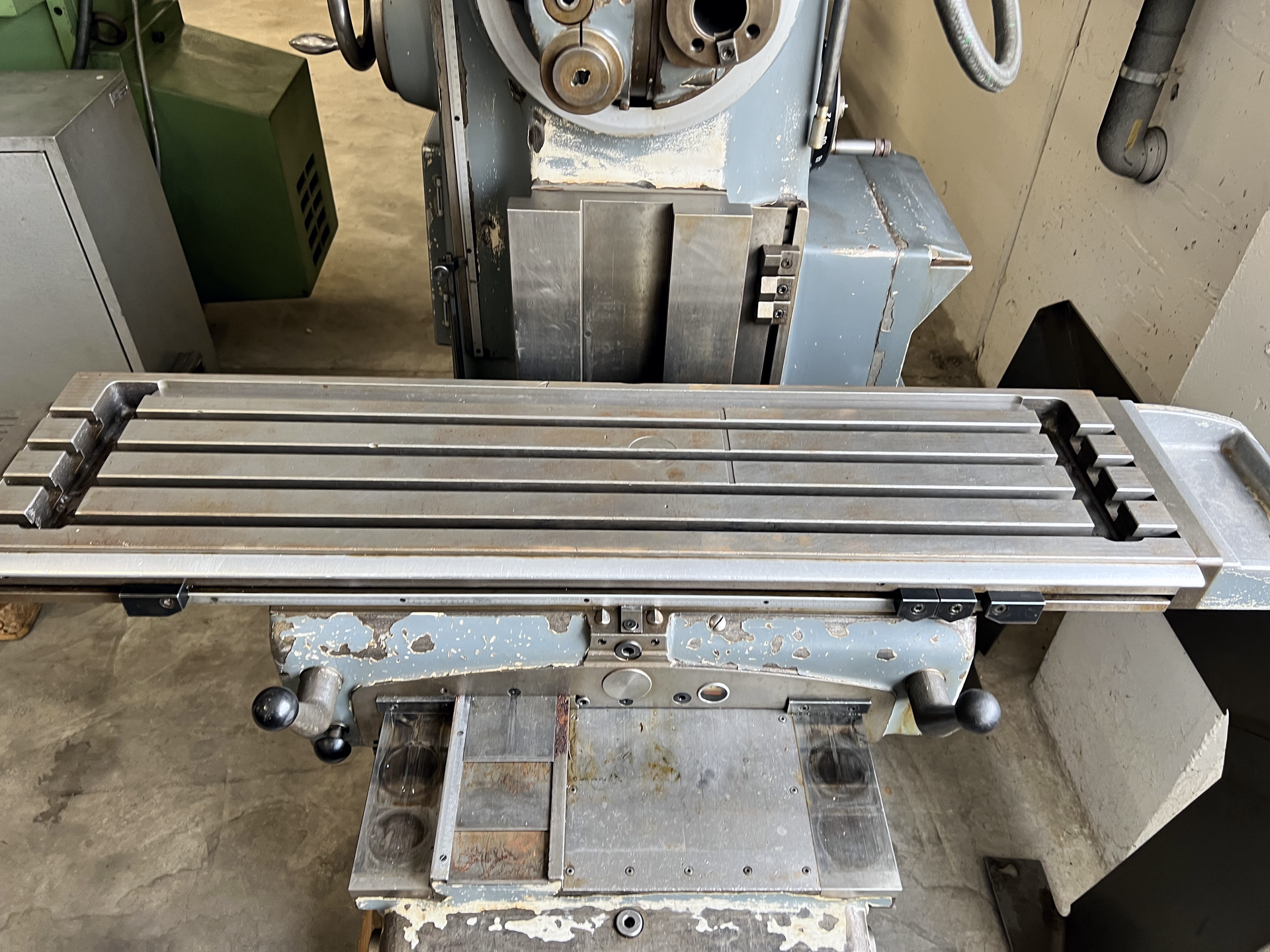

Table length: 1100 mm.
Table width: 255 mm.
Number of T-channels: 5.
T-channel width: 14h7 mm.
Distance of the T-slots: 50 mm.
Longitudinal travel (X-axis): 700 mm.
Transversal travel (y axis): 250 mm.
Vertical travel (z axis): 490 mm.
number (steps): 18.
from: 12 t/min.
up to: 525 mm/min.
Taper in spindle: 40 ISO.
Feeds steps:: 18.
longitudinal from: 12 mm/min.
transversal from: 12 mm/min.
vertical from: 6 mm/min.
longitudinal: 3.5 m/min.
transversal: 3.5 m/min.
vertical: 1.7 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 5.5 CV.
Total power required: 8 CV.
Machine's weight about: 2100 kg.
Length: 1600 mm.
Width: 1600 mm.
Height: 1600 mm.
