MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • WEILER
  • Model:
  • 023070 - WEILER E 30 / D1
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 165 mm.
Distance between centres: 770 mm.
Swing over cross-slide: 160 mm.
Swing over bed: 330 mm.
Spindle hole: 42 mm.
from: 1 t/min.
up to: 4500 t/min.
Spindle power: 9 / 11 kW.
Morse taper: 3 CM.
Spindle stroke: 110 mm.
Spindle diameter: 50 mm.
Rapid traverse X: 5 m/min.
Rapid traverse Z: 10 m/min.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 10 kVA.
Machine's weight about: 1300 kg.
Length: 1800 mm.
Width: 1200 mm.
Height: 1700 mm.

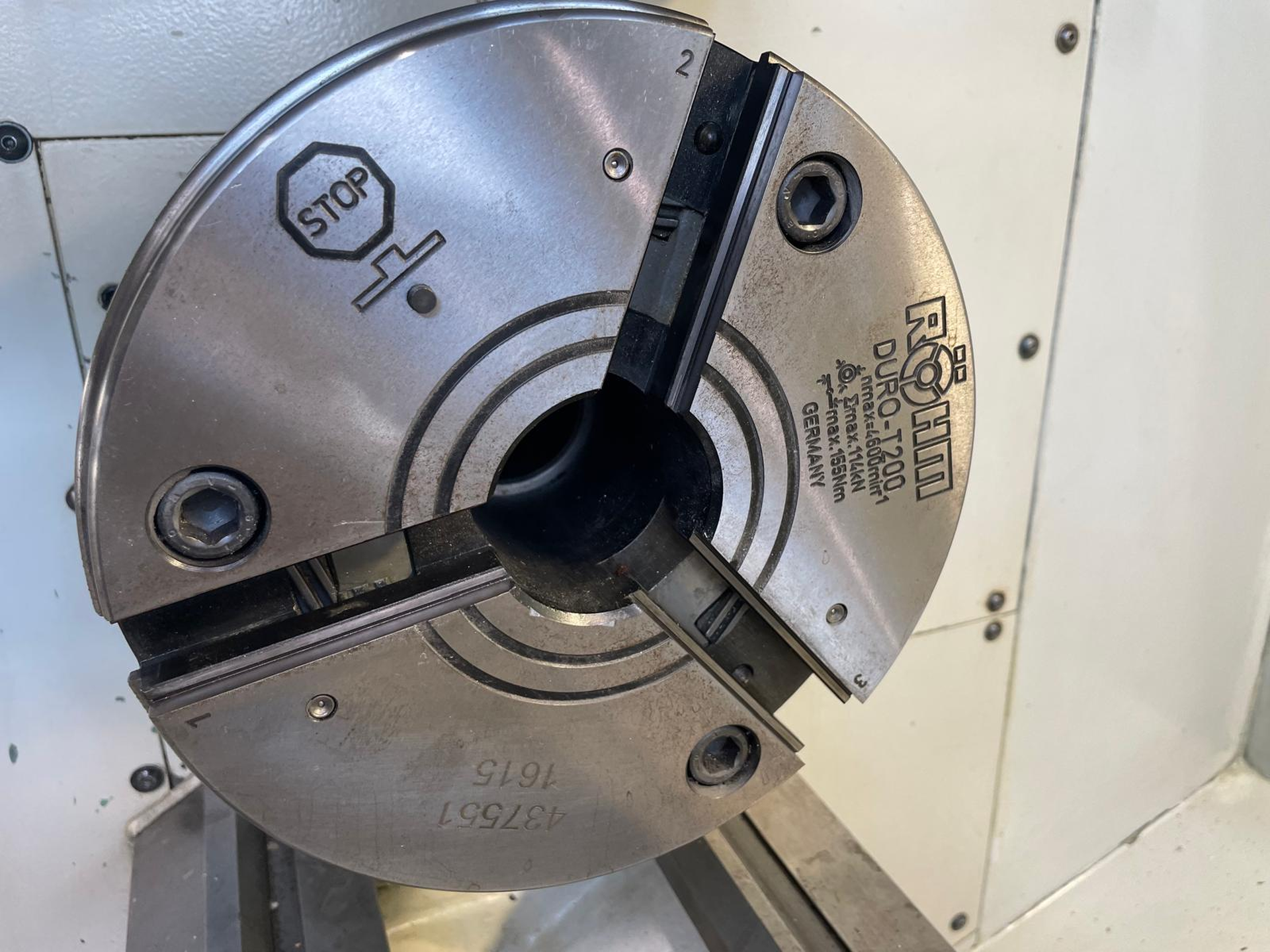

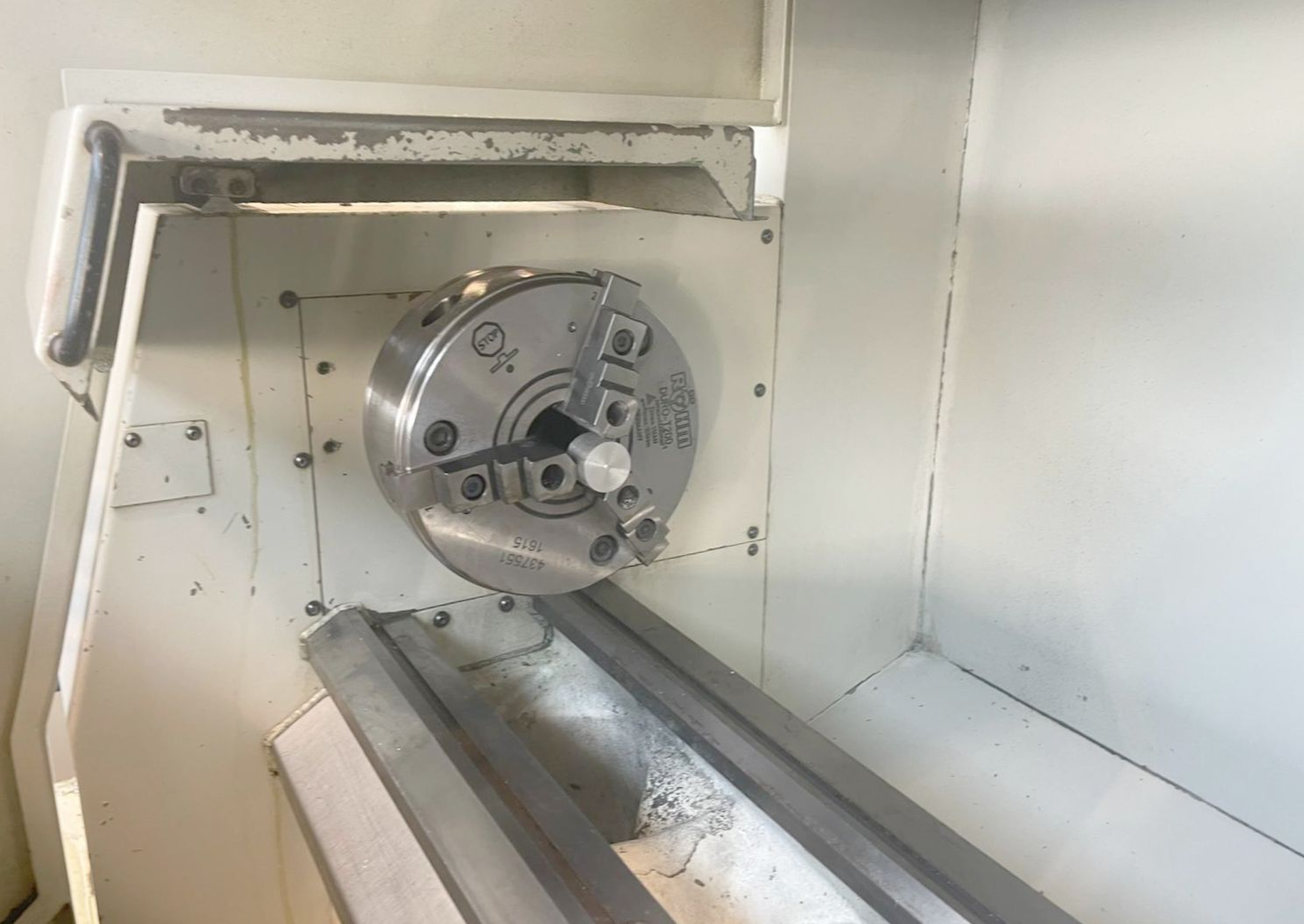

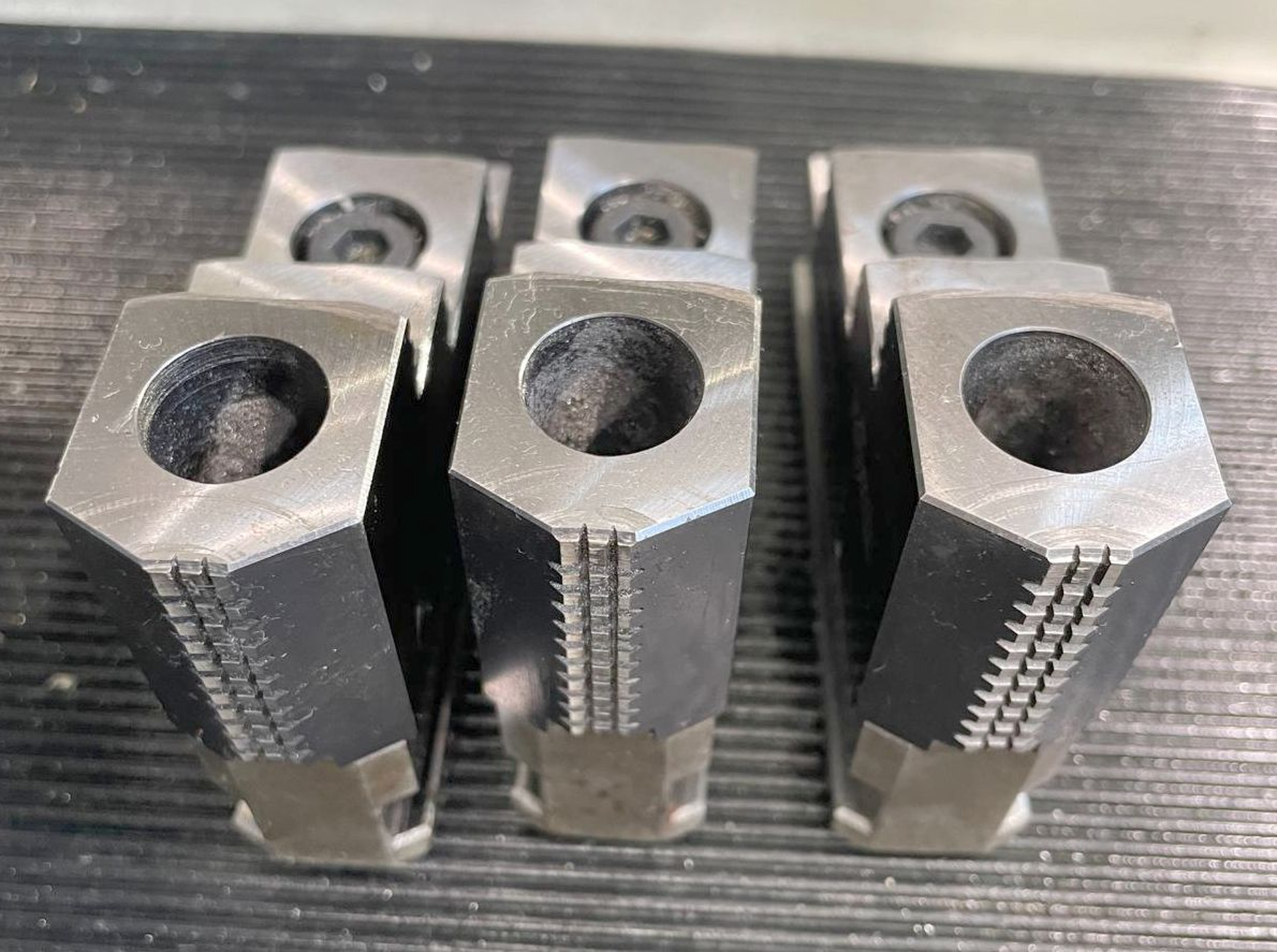

3-jaw chuck diameter: 160 mm.

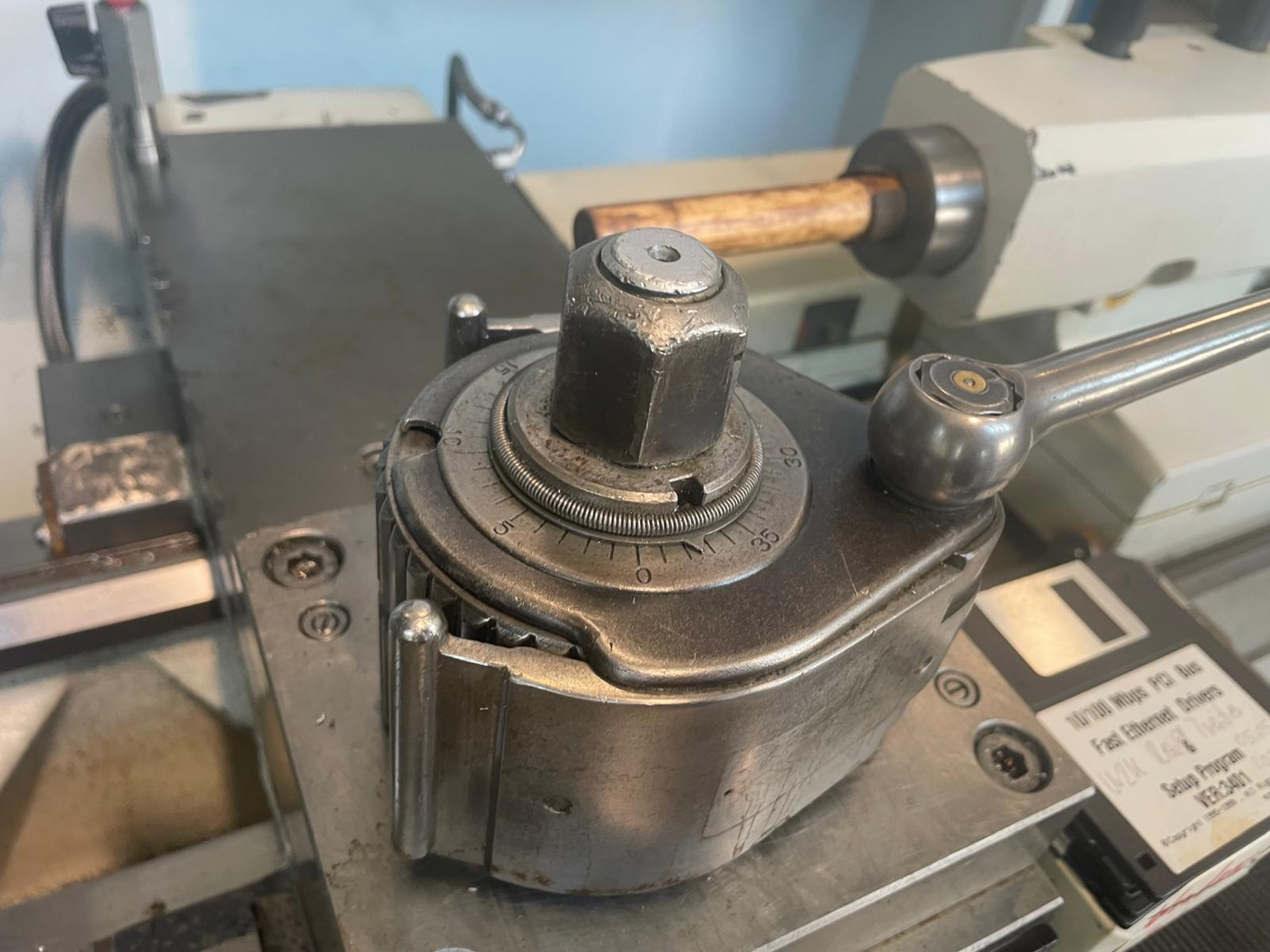

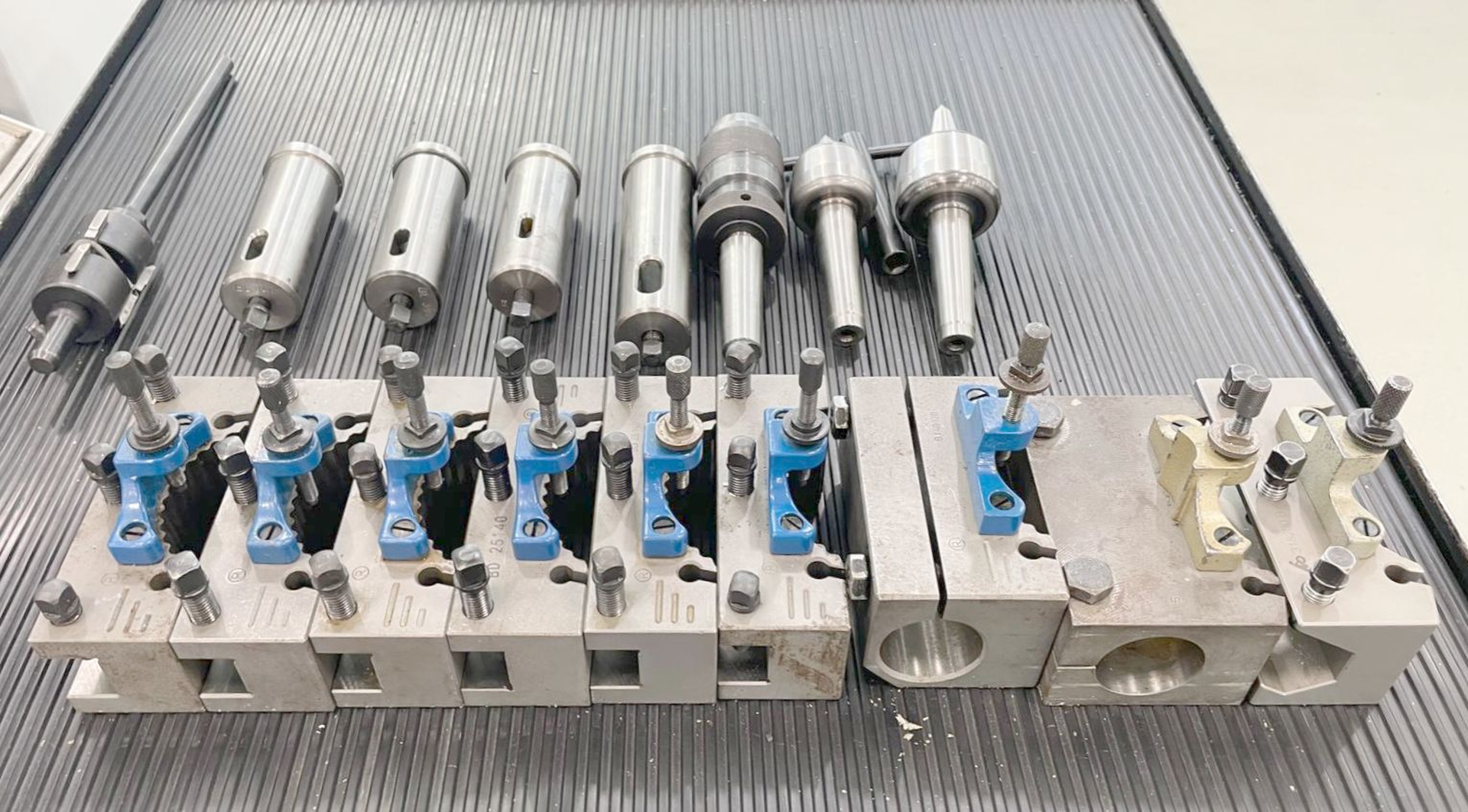

Quick change tool: MULTIFIX.
