MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Nikken
  • Model:
  • Used Nikken Elbo Controlli Tool setter (4666)
  • Condition:
  • Used
  • YOM:
  • 2013
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • United Kingdom

DESCRIPTION

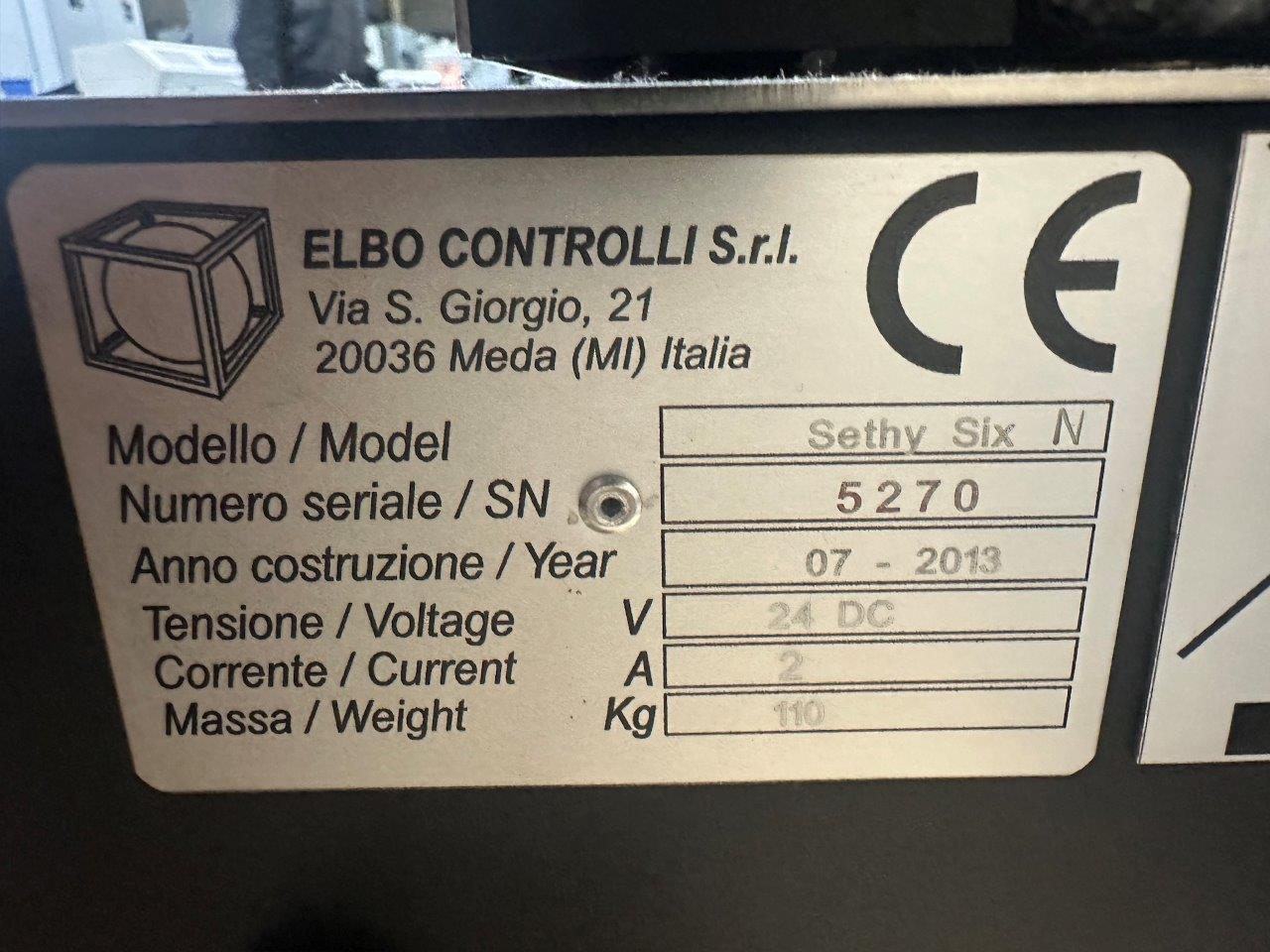

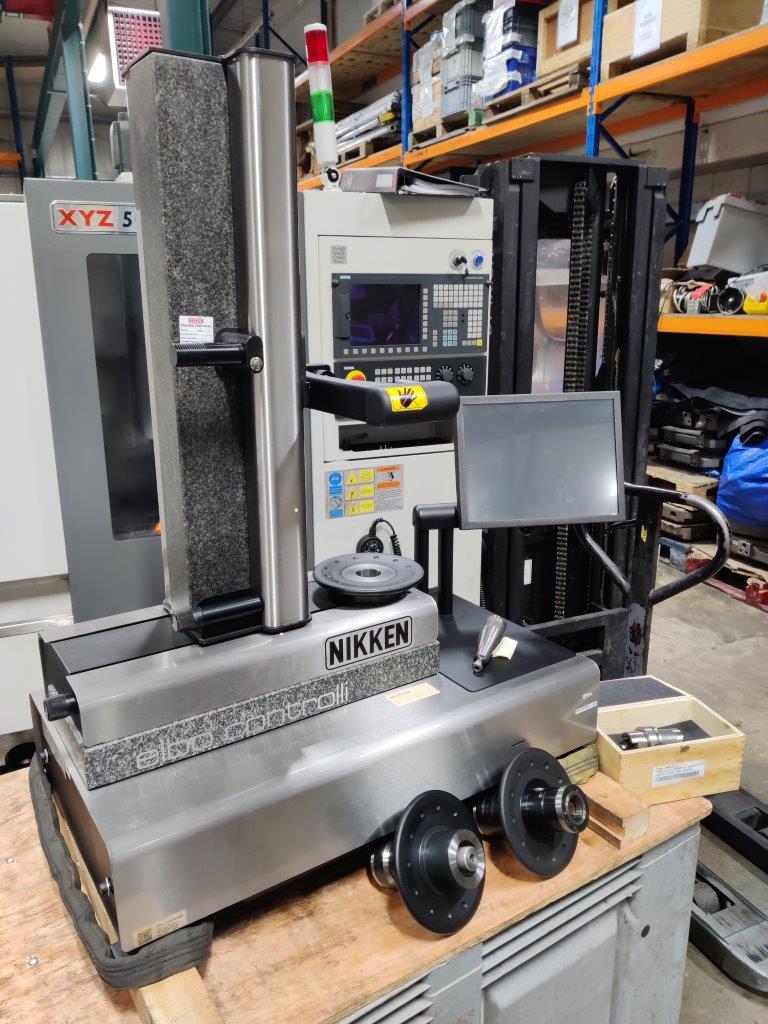

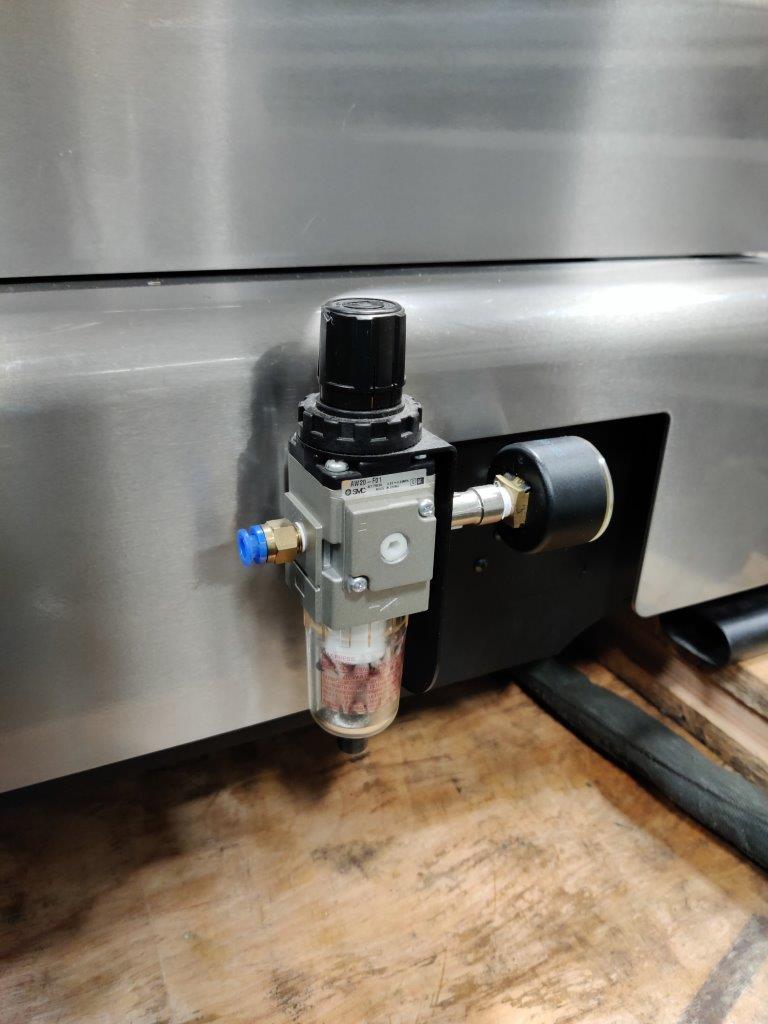

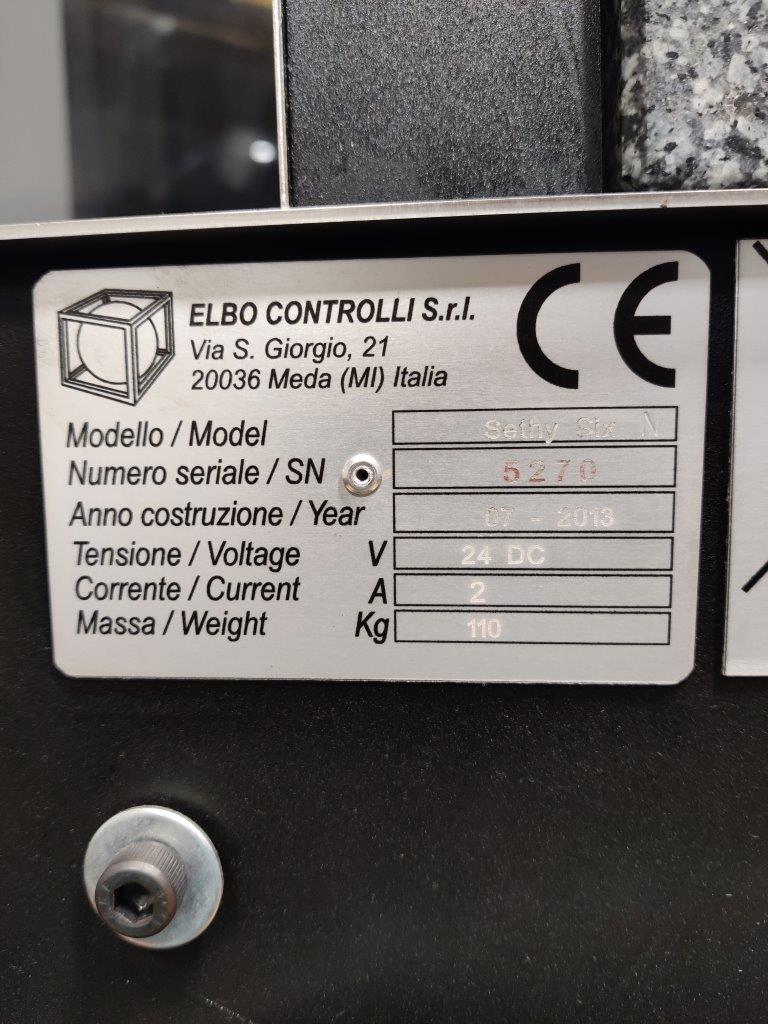

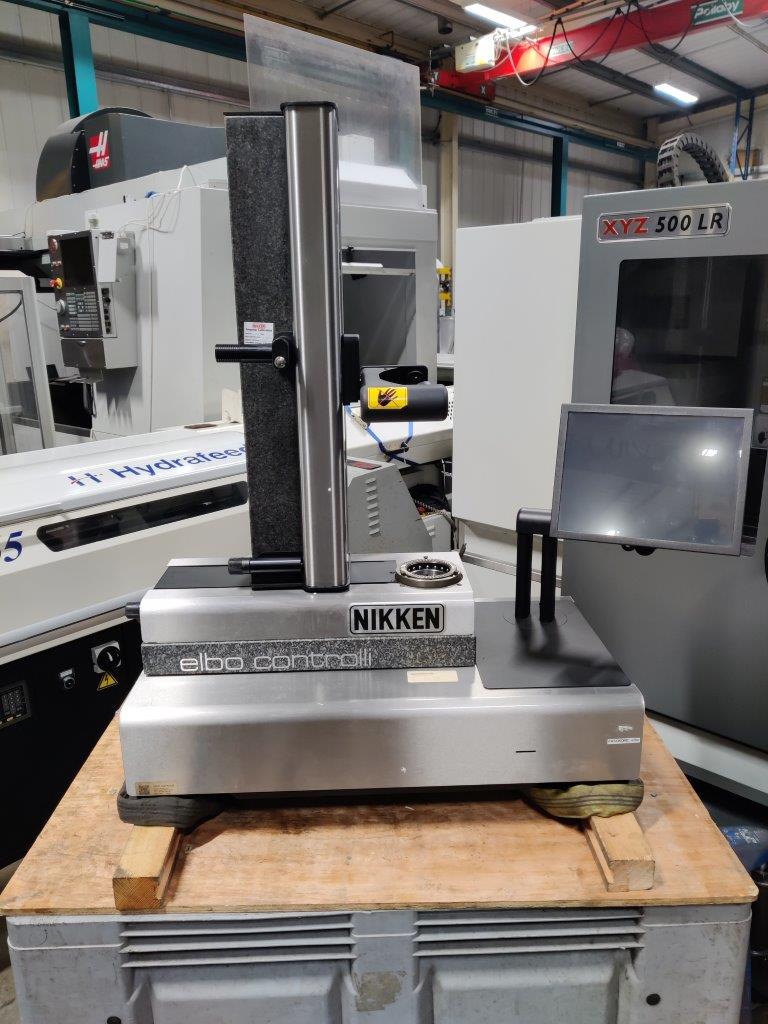

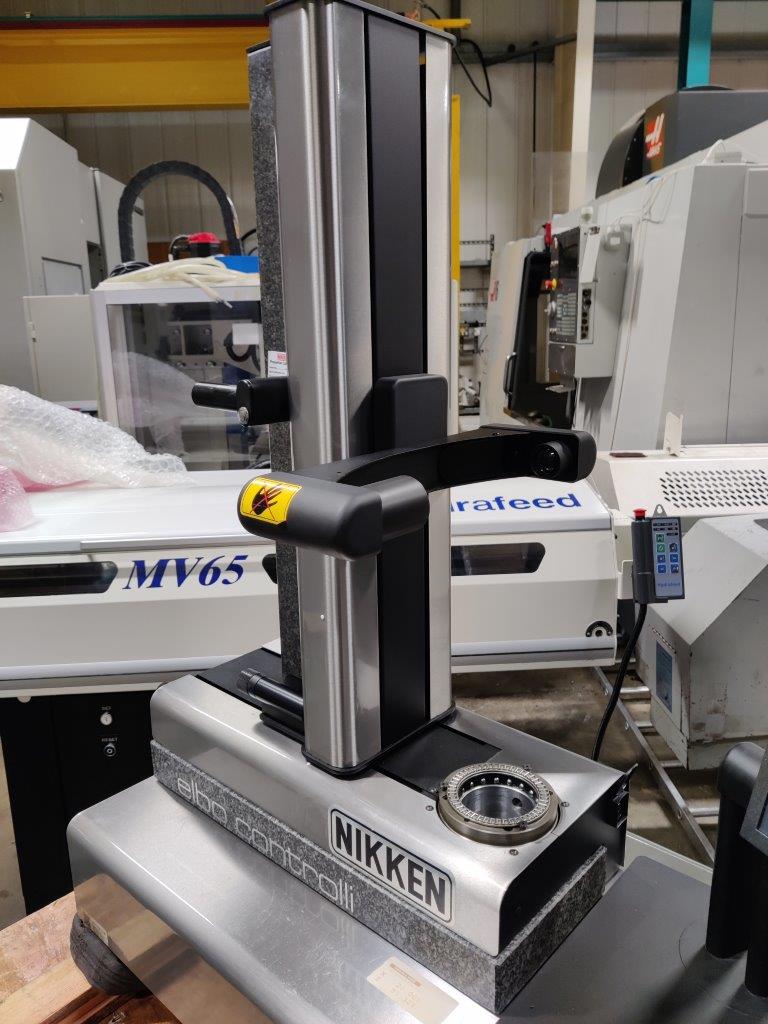

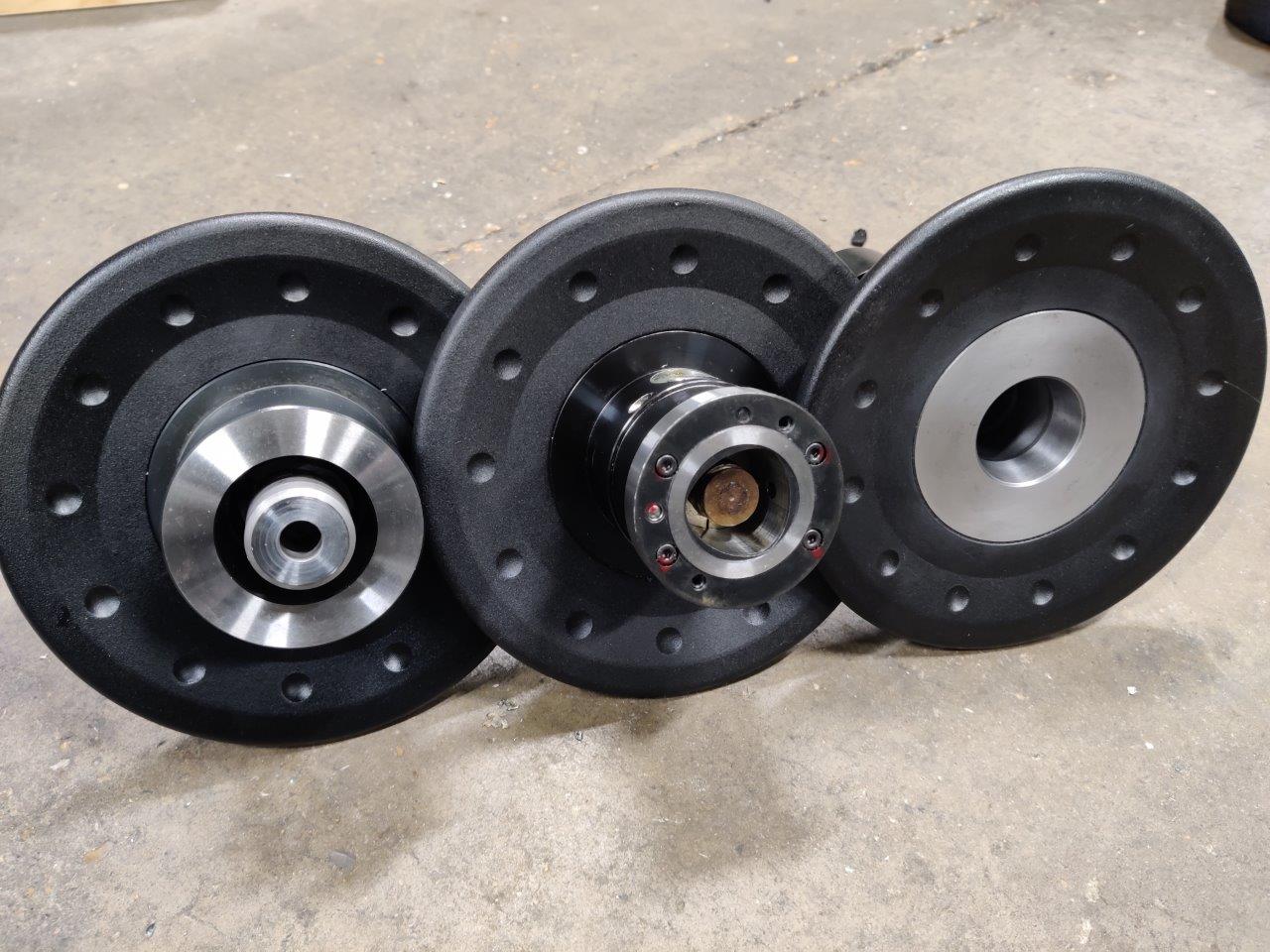

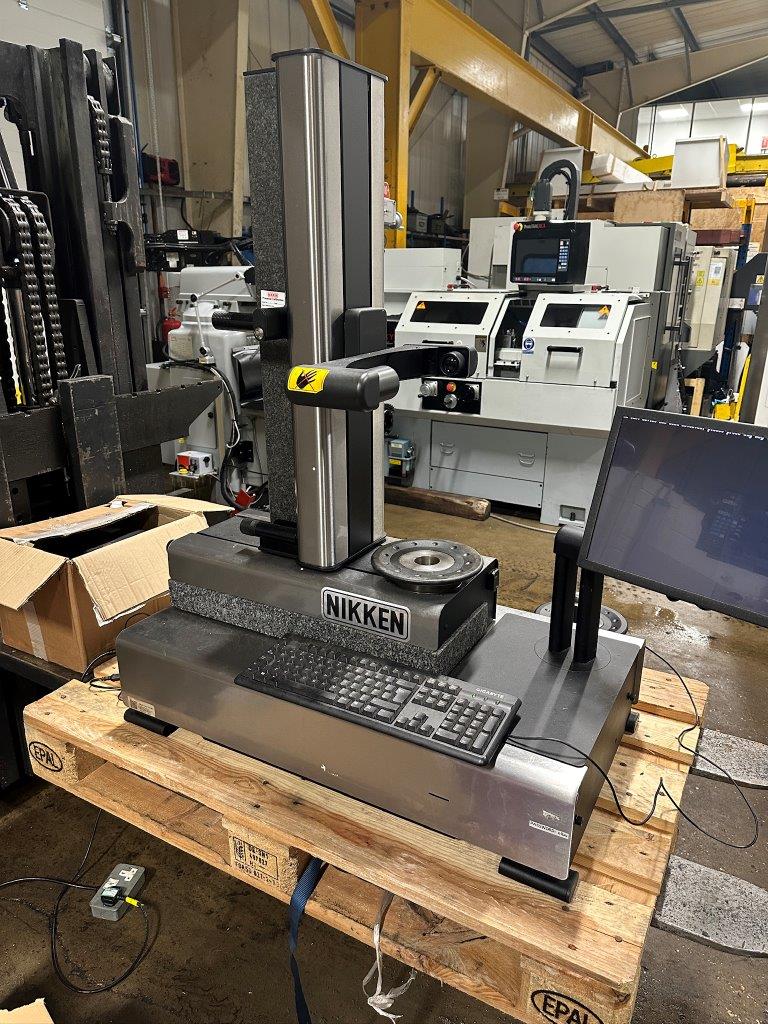

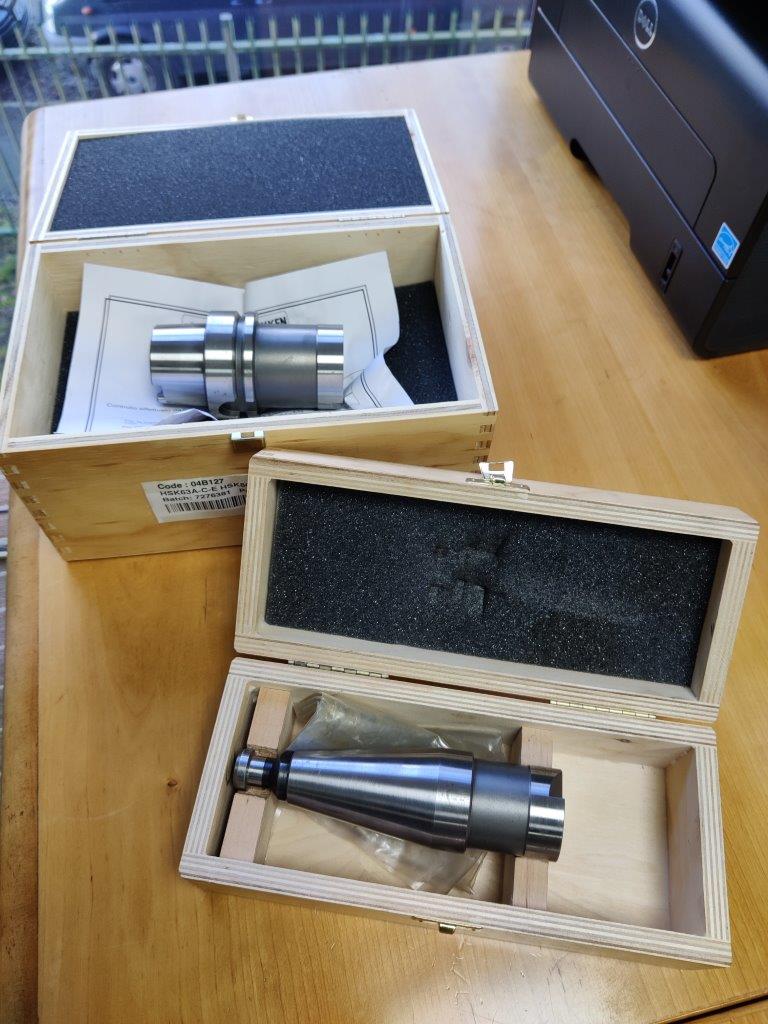

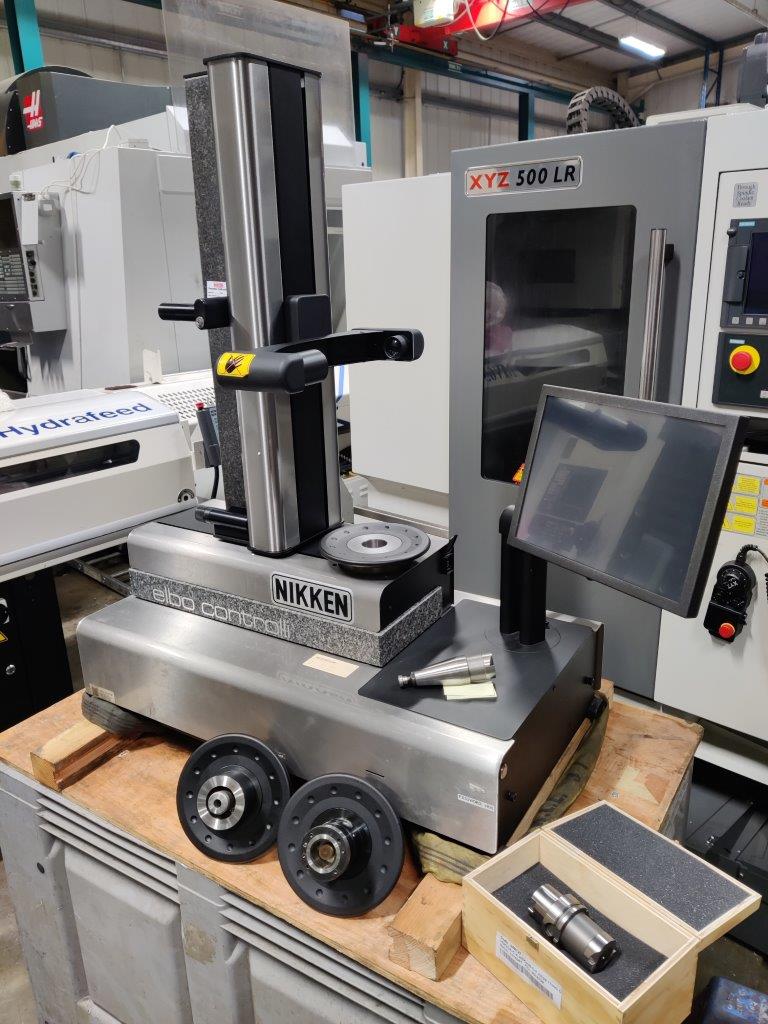

Used Nikken Elbo Controlli Tool setter, Model Sethy Six, 2013, s/n5270, Interchangeable spindle adaptors - 40 taper, HSK-63, CAPTO C5, Setting tools for HSK-63 & 40 Taper, Measuring range - 400mm dia, 600mm height, Optical camera, 30x magnification, 15" colour TFT touch screen, pneumatic shaft locking, mechanical spindle breaking, measuring resolution 0.001mm, Granite base and column, 99 CNC Machines zero adjustments, USB port for printer, LAN port for network communication.
+ request more information
