Home > Metal Forming > Press Brakes Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • GHBM
  • Model:
  • GH-36T13FSE 6+1
  • Condition:
  • New
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • £65,206.00
  • Country:
  • United Kingdom

DESCRIPTION

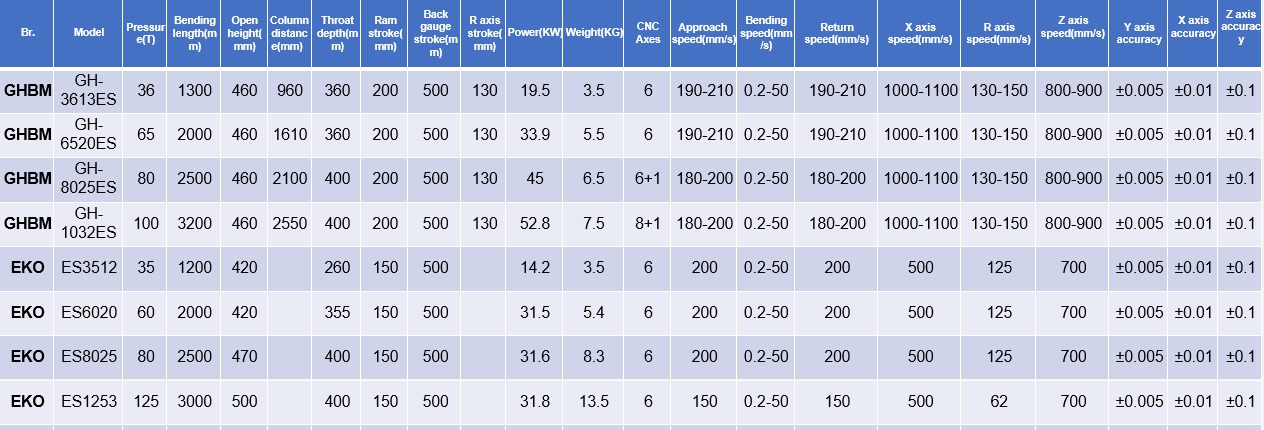

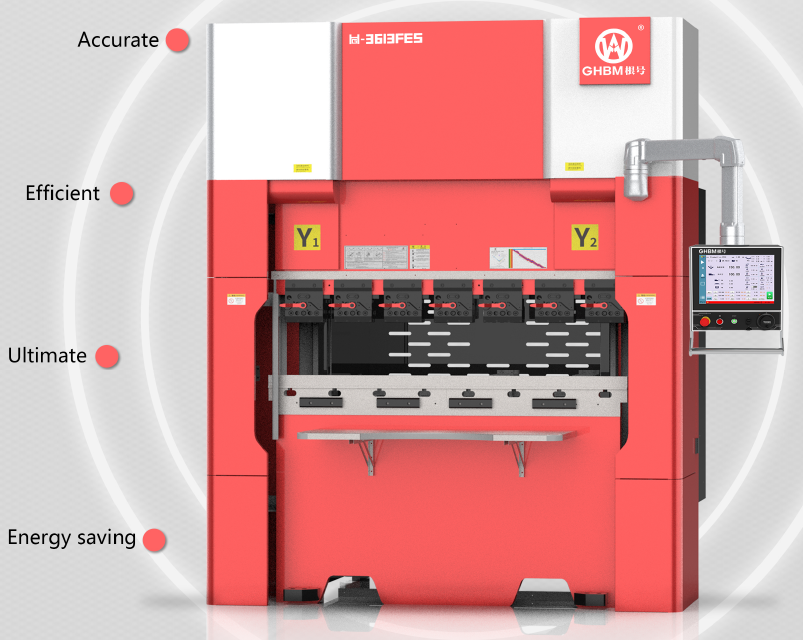

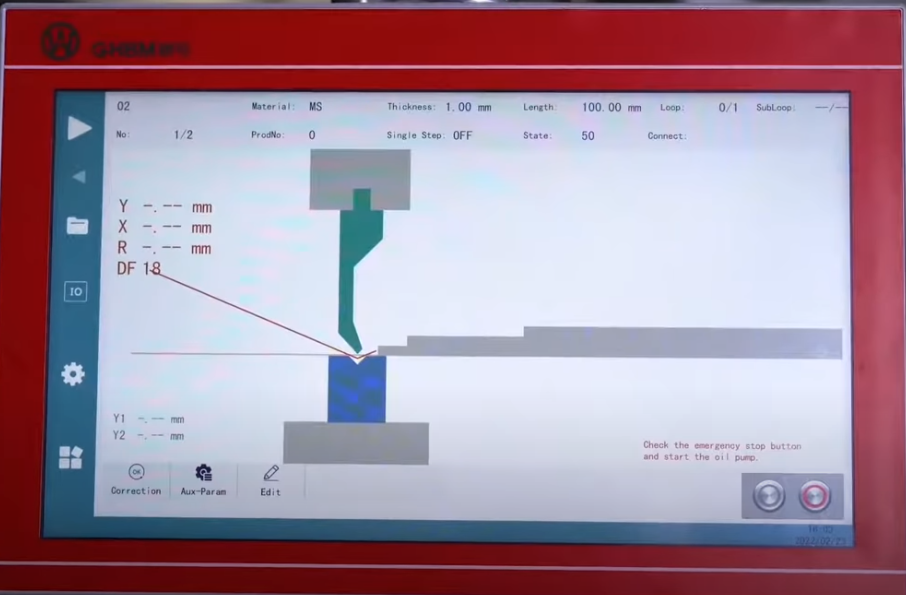

ALL ELECTRIC 6 AXIS CNC PRESS BRAKES £54,339 + vat Model GH-36T13FSE 6+1 Tonnage 36 ton Bending length 1300mm GHBM=7000T CNC 6 Axis Y1, Y2, X, R, Z1 & Z2 DSP Light guards Side & rear fence Back gauge system: Fast and accurate ★ X axis speed：1000-1100mm/s accuracy:±0.01mm ★ R axis speed : 130-150mm/s s accuracy:±0.1mm ★ Z axis speed : 800-900mm/s s accuracy:±0.1mm Double-side punch holder: ★ The punch tools can be installed in this clamp in both directions. ★ Quenching treatment to harden the holder. ★ Adjust the height of the clamp middle plate by rotating the bolts instead of knocking the wedge. New 2025 All machine price ex-works Quotation for export on request Available: Subject to remaining unsold Offer is subject to our standard terms and condition of sale
+ request more information

SEND ENQUIRY

SHARE PAGE

REQUEST MORE INFORMATION

SEND ENQUIRY
