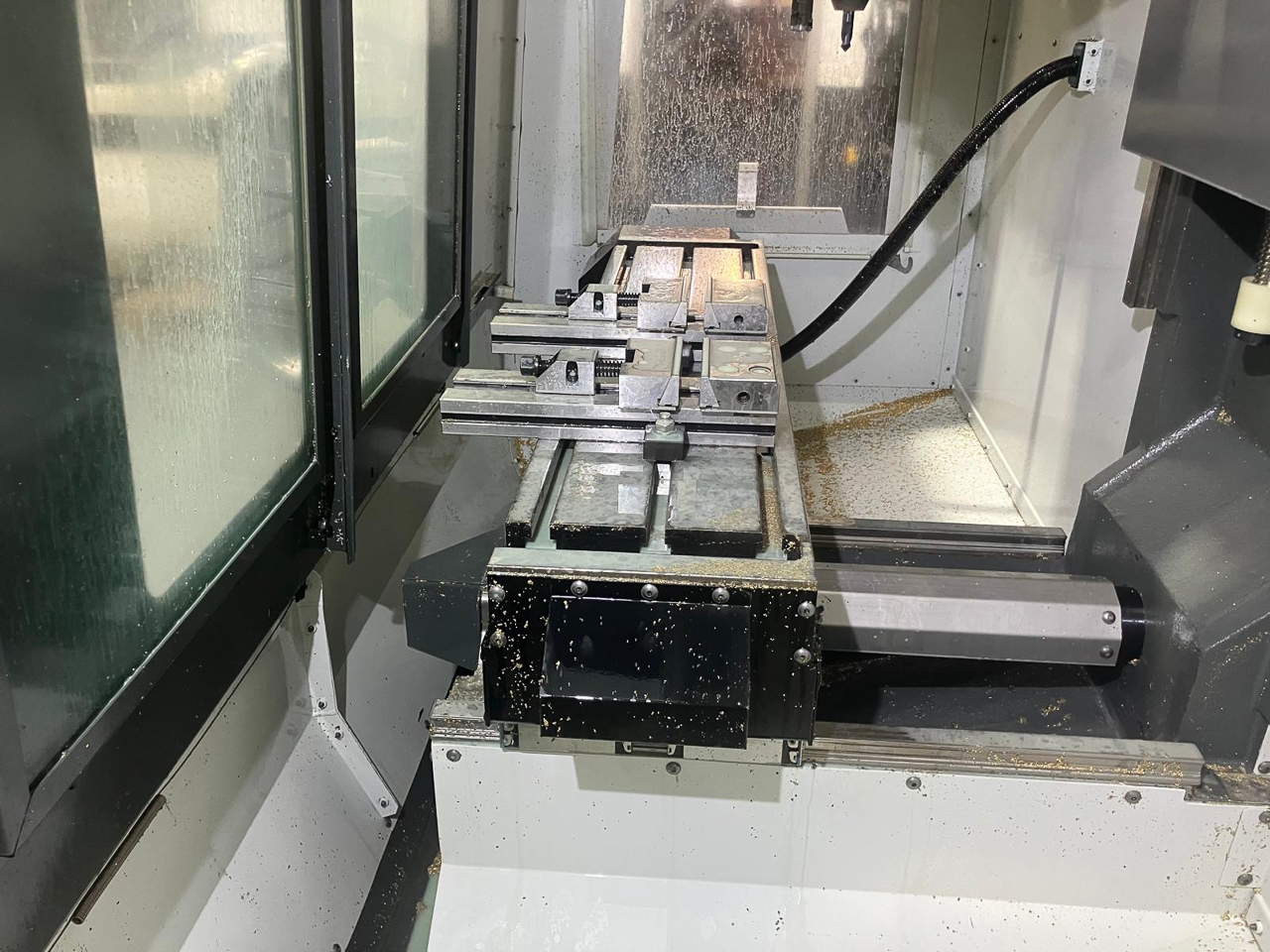

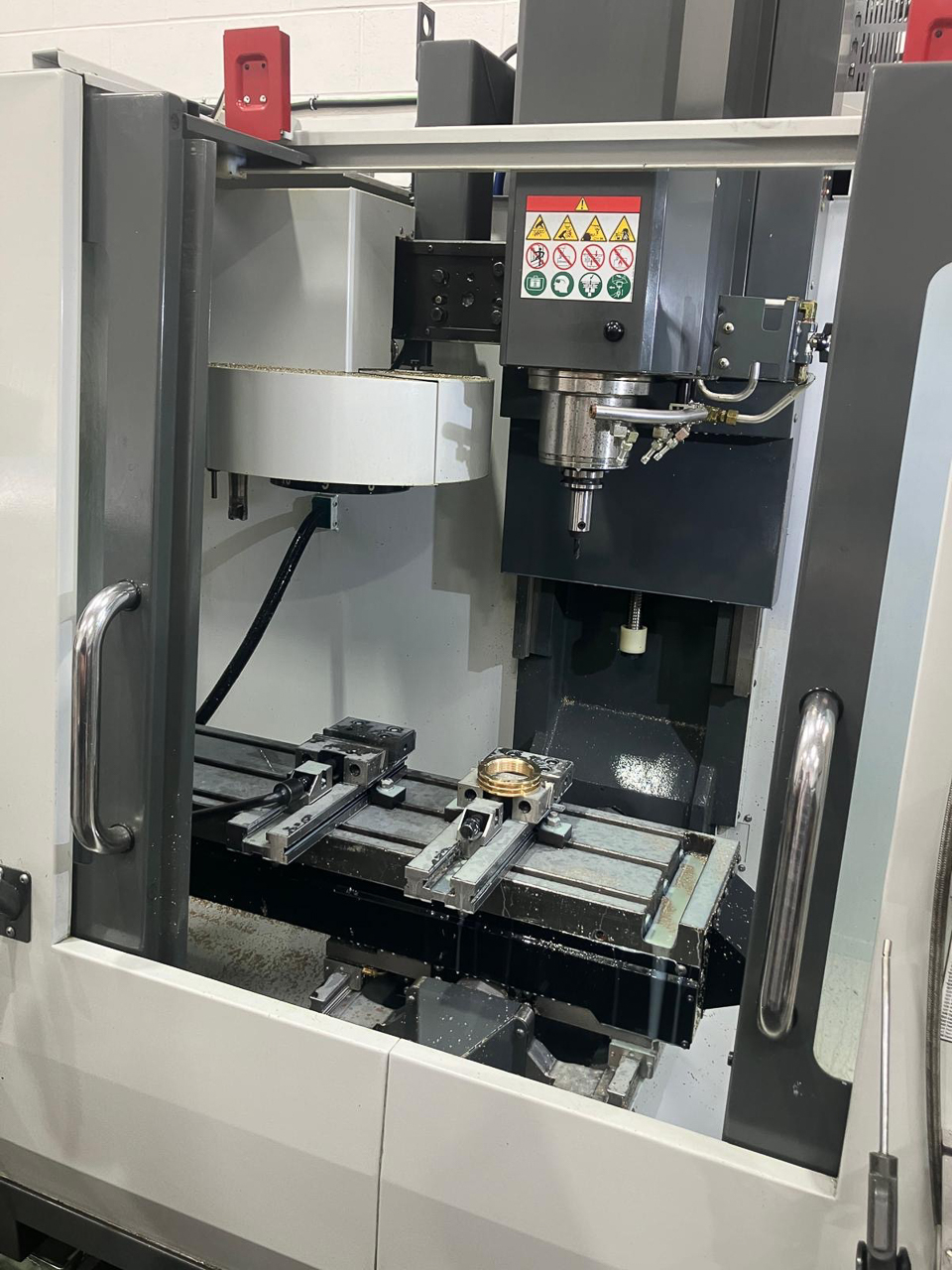

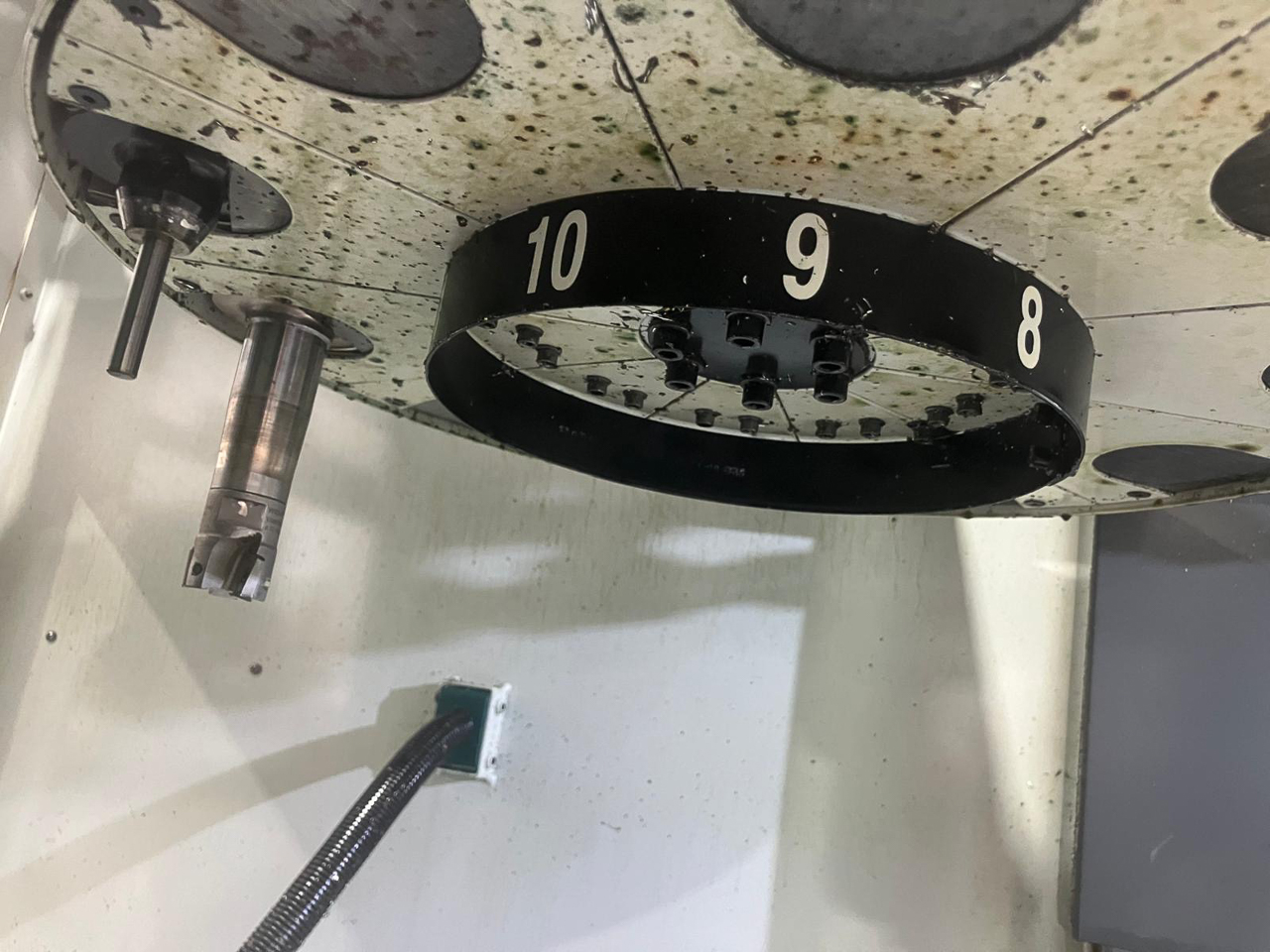

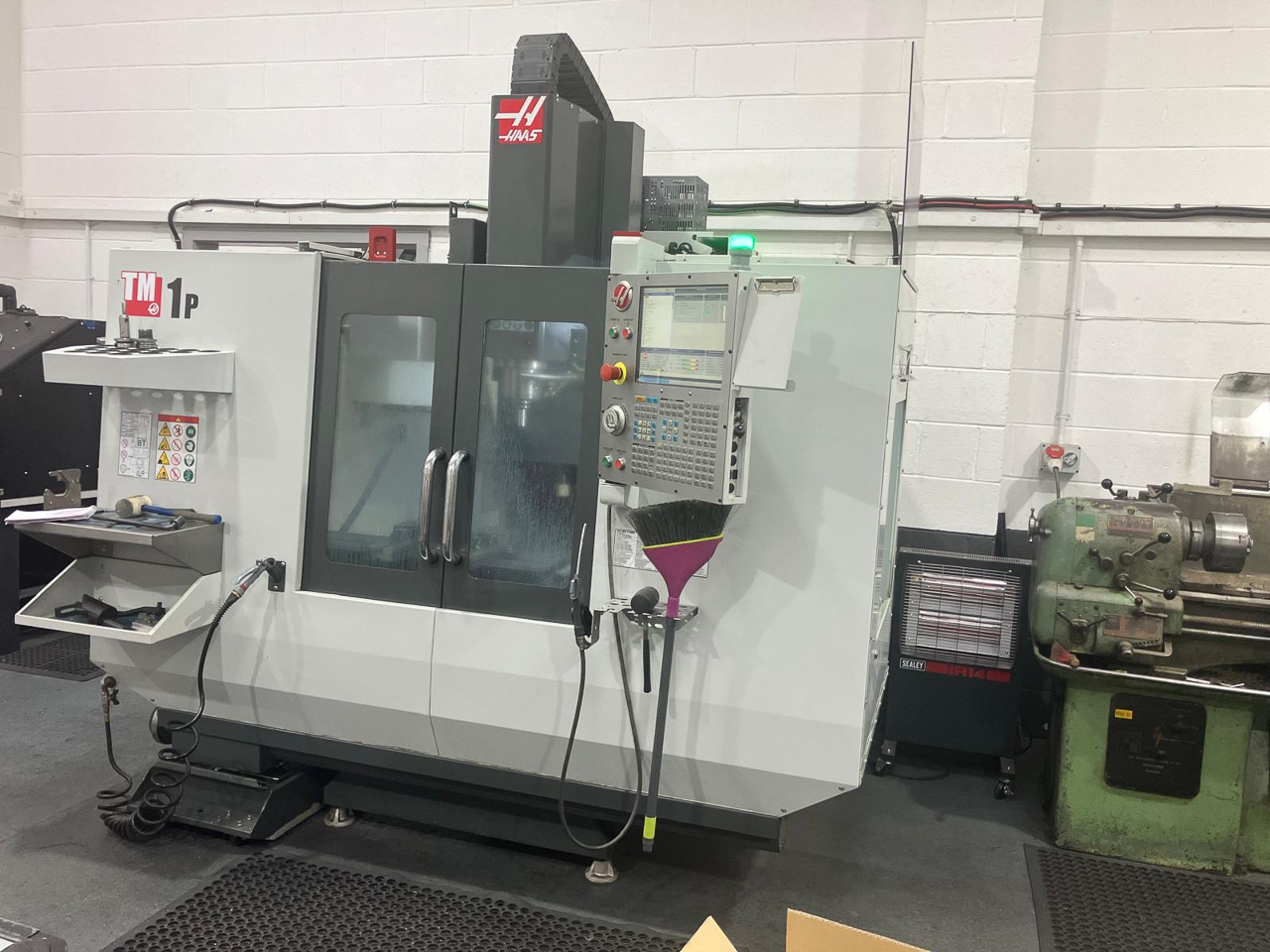

X Axis Travel: 762mm Y Axis Travel: 406mm Z Axis Travel: 406mm Spindle Nose to table: 102-508mm Table Length: 1213mm Table Width: 267mm T Slot Width: 16mm T Slot Center Distance: 101.6mm Max Weight on Table: 454kg Spindle Speed: 6000RPM Taper: BT or CT 40 Rapid Traverse (X,Y,Z): 10.2 m/min Tool Changer Capacity: 10 Max tool weight: 5.4kg.
Table Surface 2000 X 700 mm.
Longitudinal Traverse (X Axis) 2000 mm.
Transversal Traverse (Y Axis) 800 mm.
Vertical Traverse (Z Axis) 800 mm.
Rapid Traverse 12.000 mm/min
Taper ISO 50
Turning Speeds 20 – 3000 rpm
Head Power 17 Kw
Carrying...
