MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

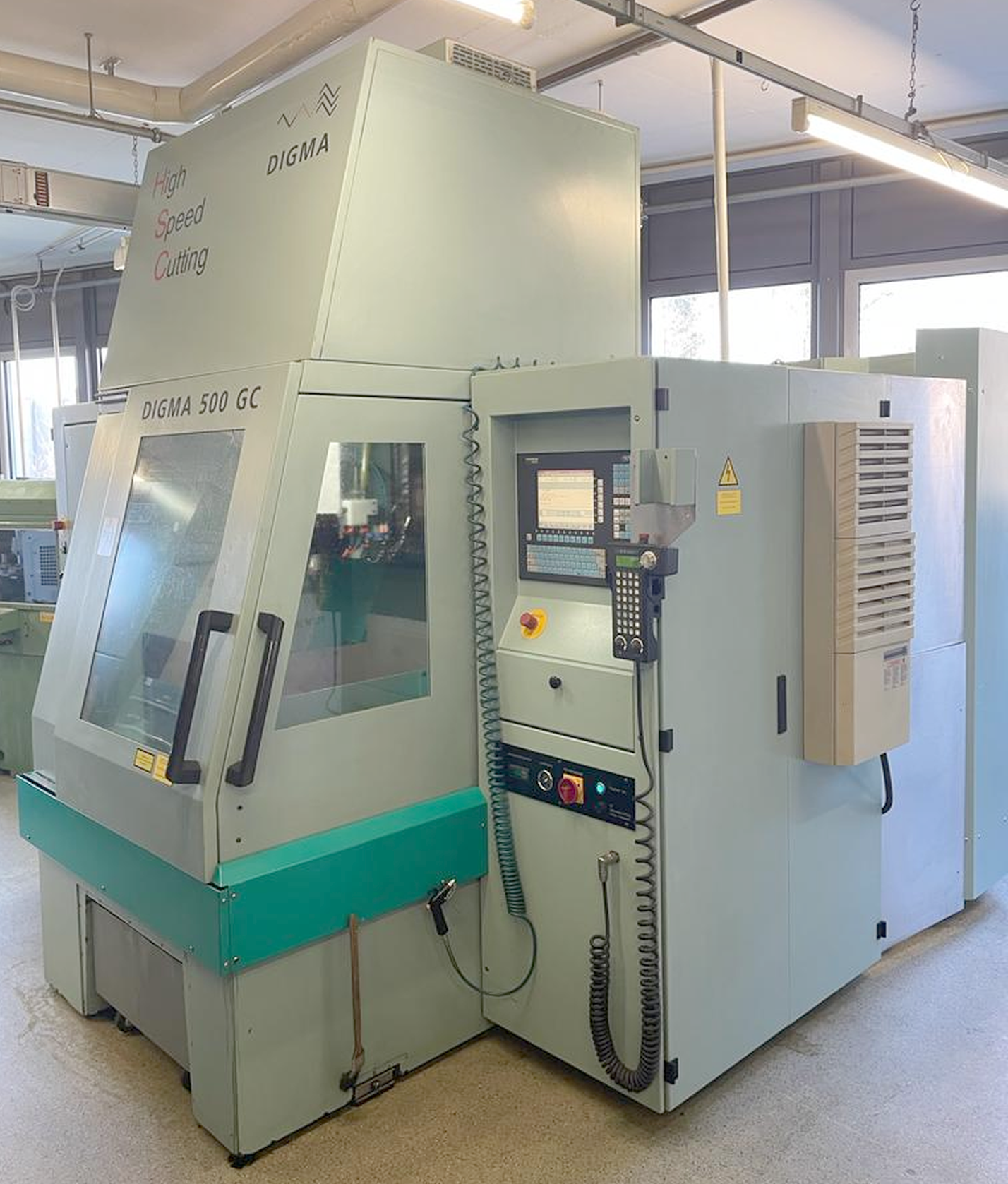

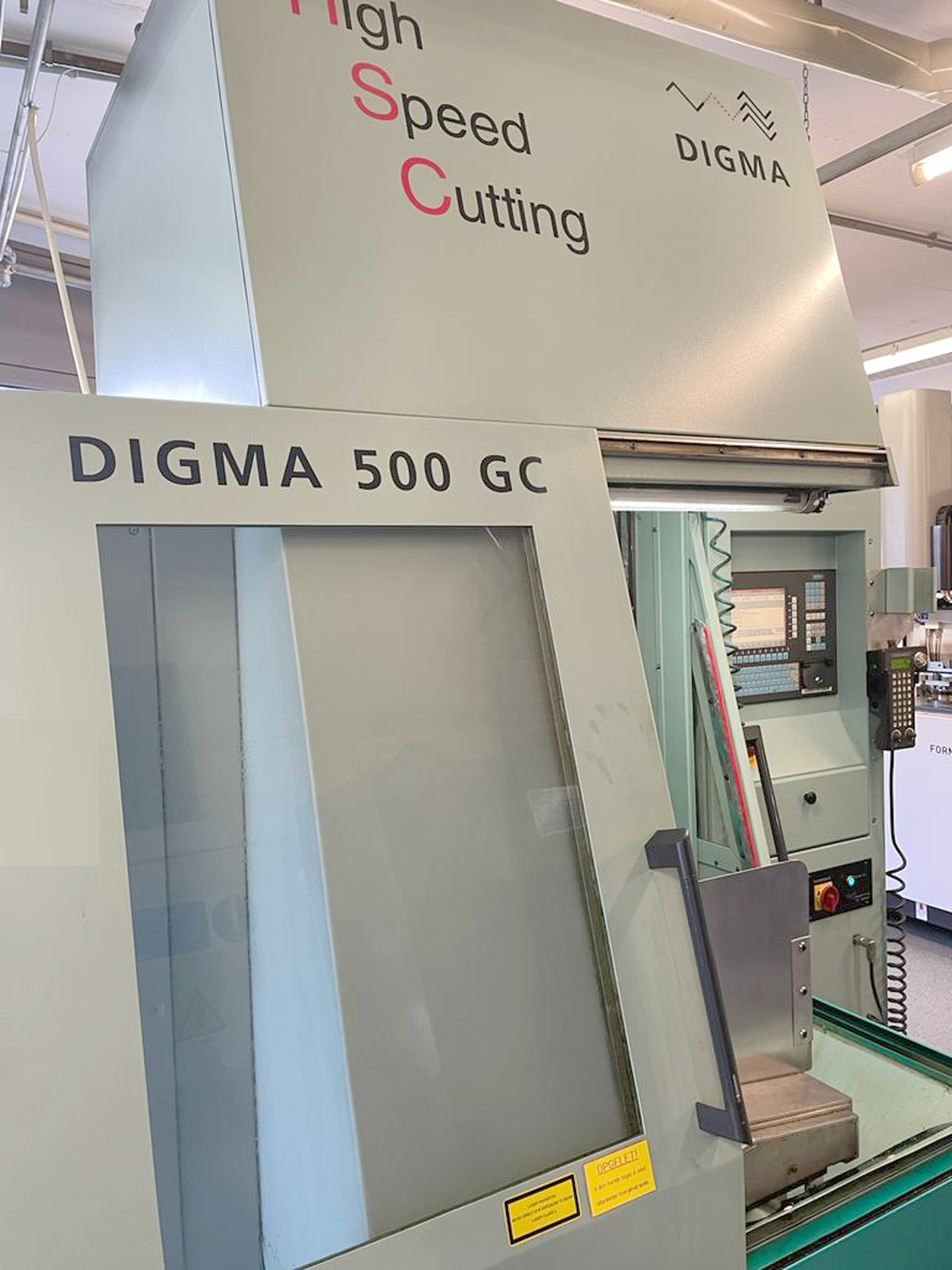

  • 021916 - DIGMA 500 GC
  • Condition:
  • 1
  • YOM:
  • NA

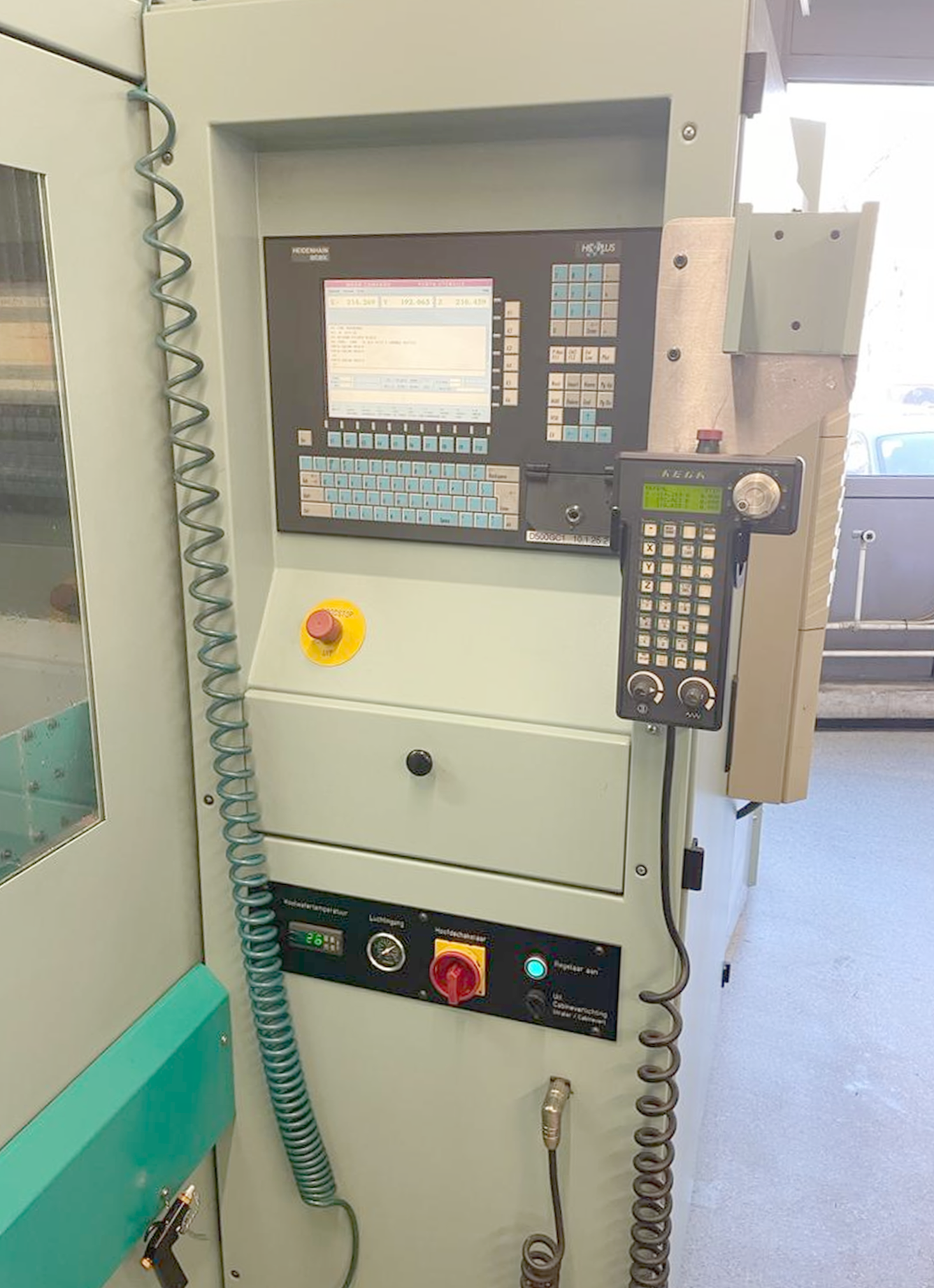

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

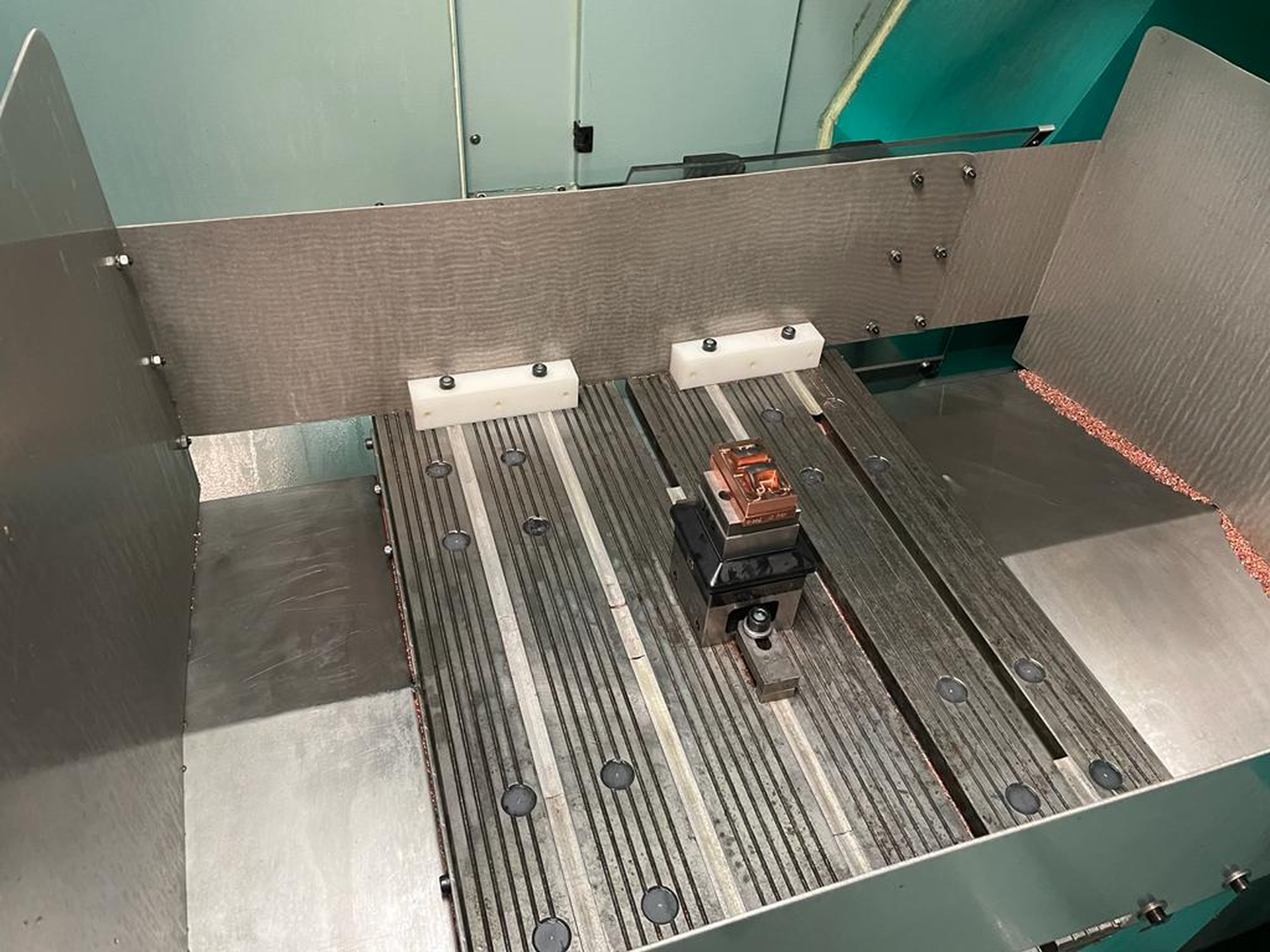

Table length: 550 mm.
Table width: 450 mm.
Number of T-channels: 5.
Distance of the T-slots: 80 mm.
T-channel width: 18 mm.
Longitudinal travel (X-axis): 500 mm.
Transversal travel (y-axis): 400 mm.
Vertical travel (z axis): 350 mm.

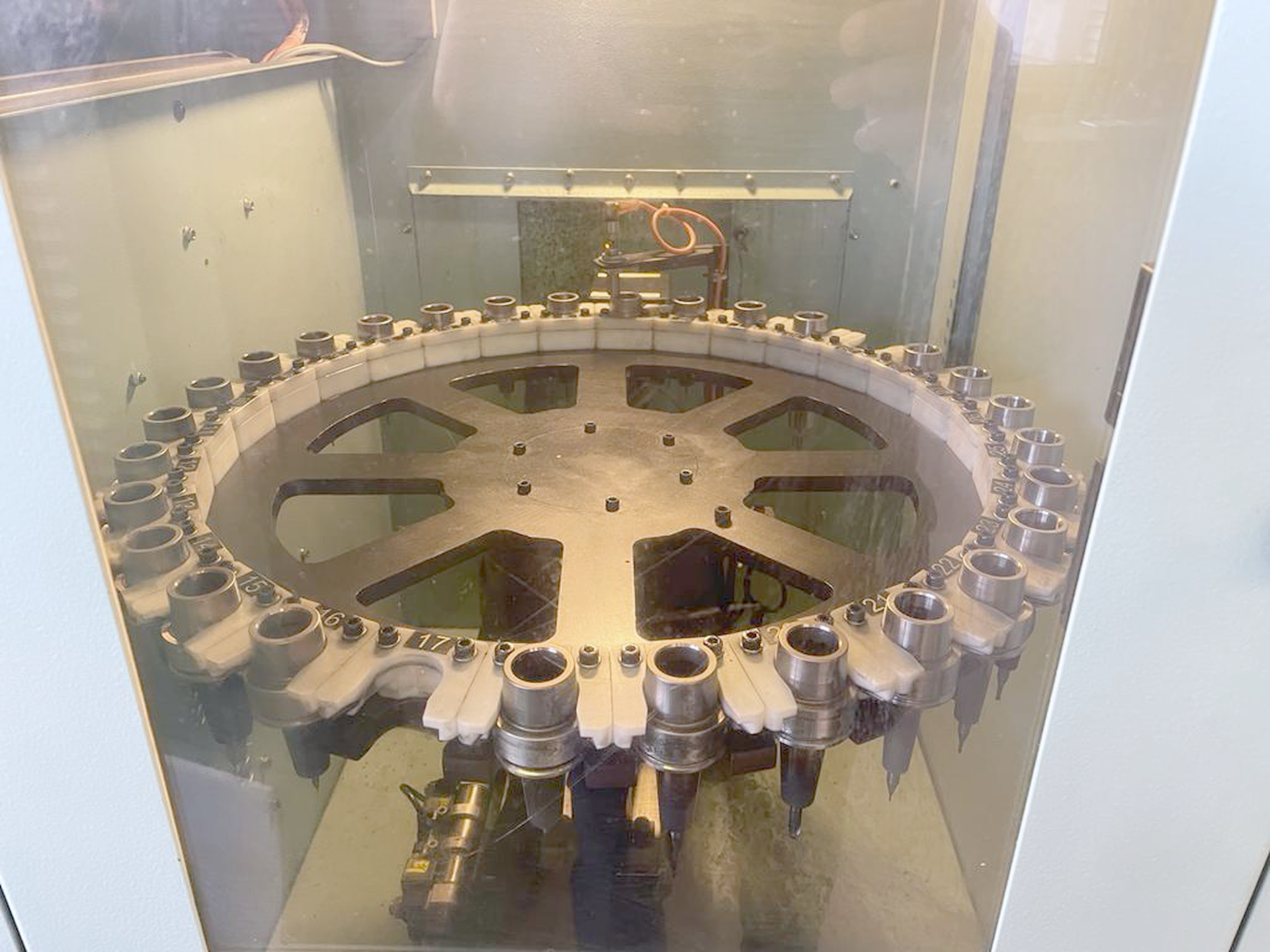

Number of tools: 30.

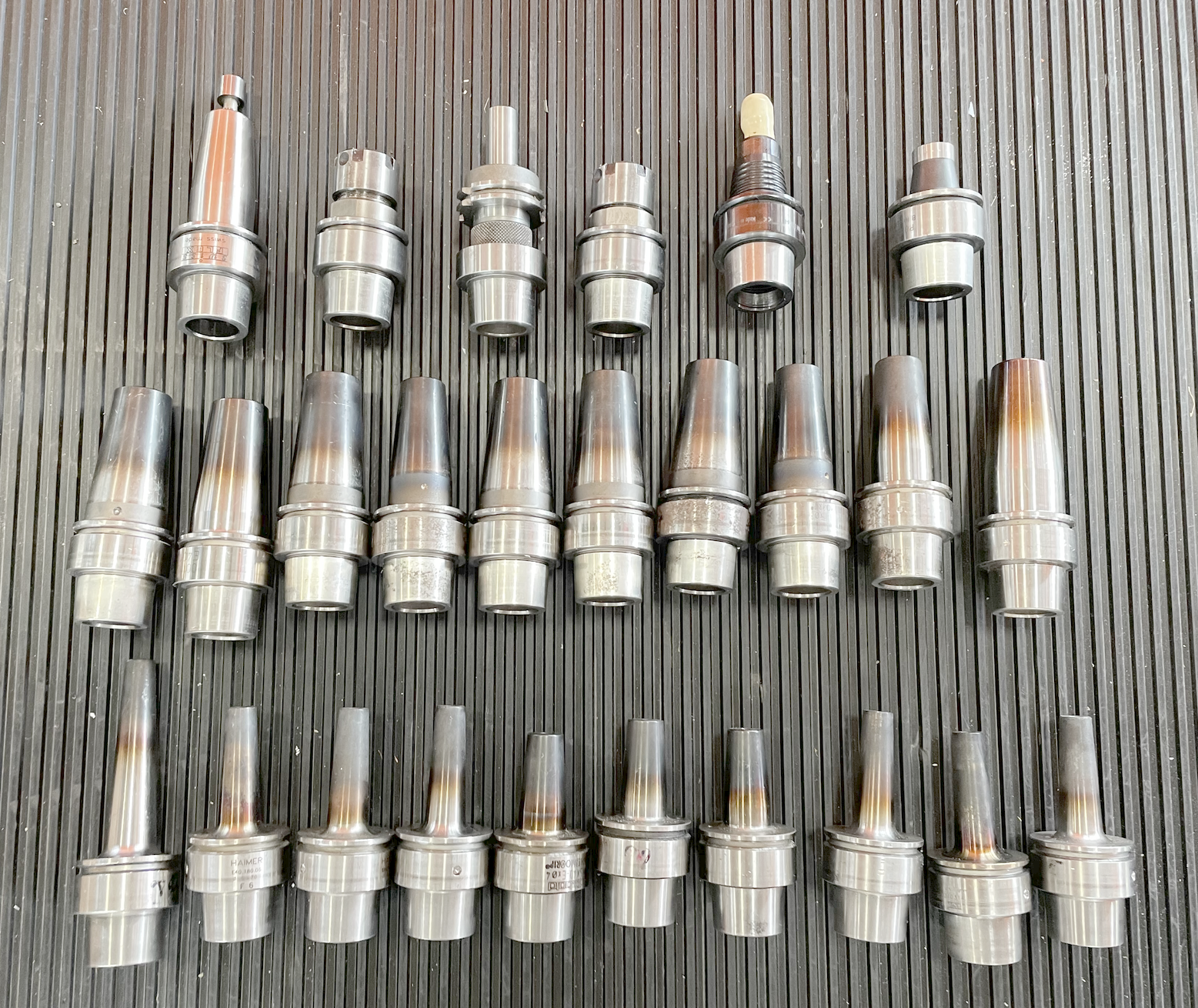

Spindle nose: HSK: E40.
spindle to table: 440 mm.
from: 0 t/min.
up to: 42000 t/min.
Feed range: 2 - 20000 mm/min.
Rapid traverse:: 22 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 13 kW.
Total power required: 16 kVA.
Machine's weight about: 4350 kg.
Length: 2700 mm.
Width: 2200 mm.
Height: 2800 mm.

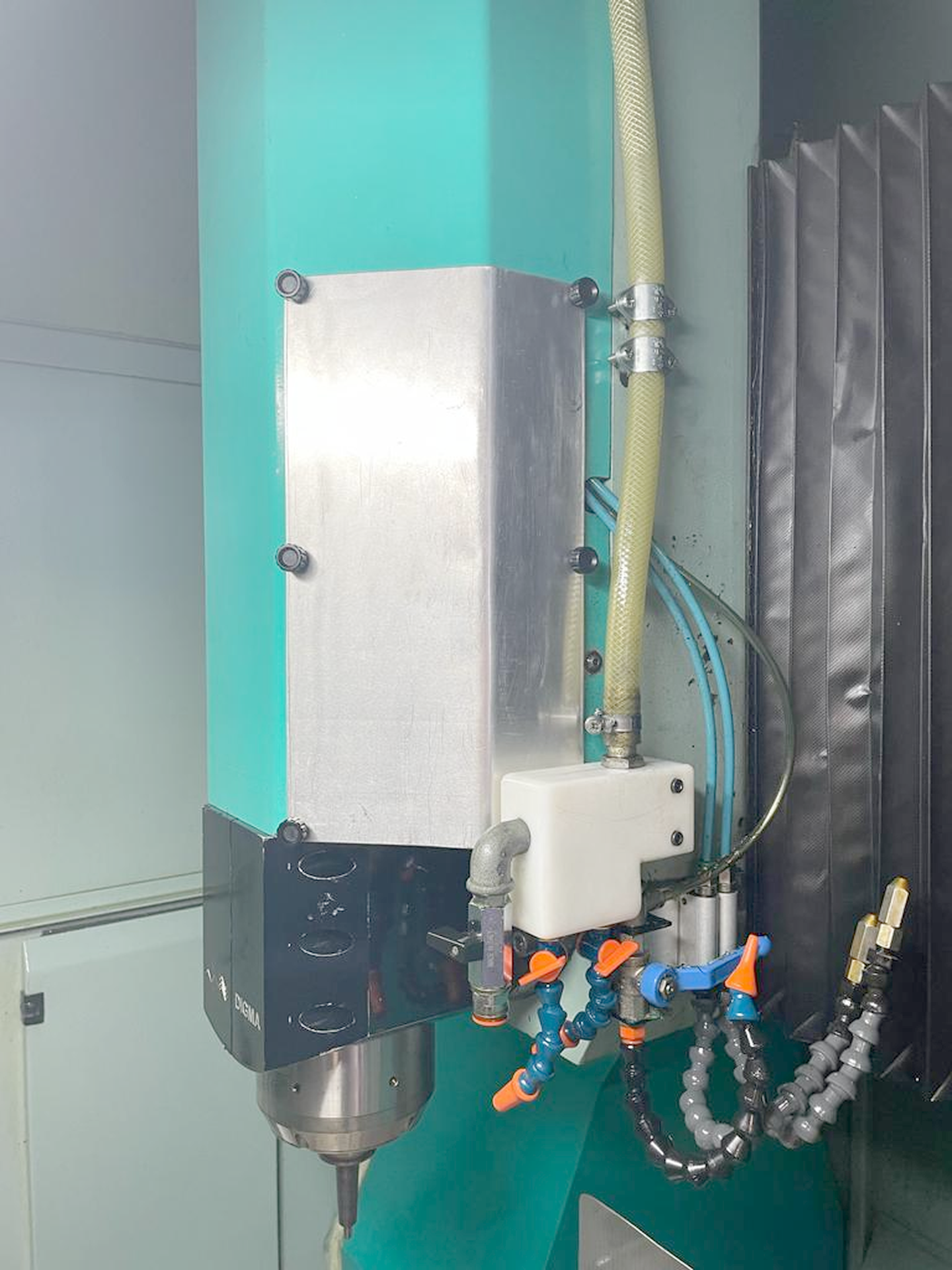

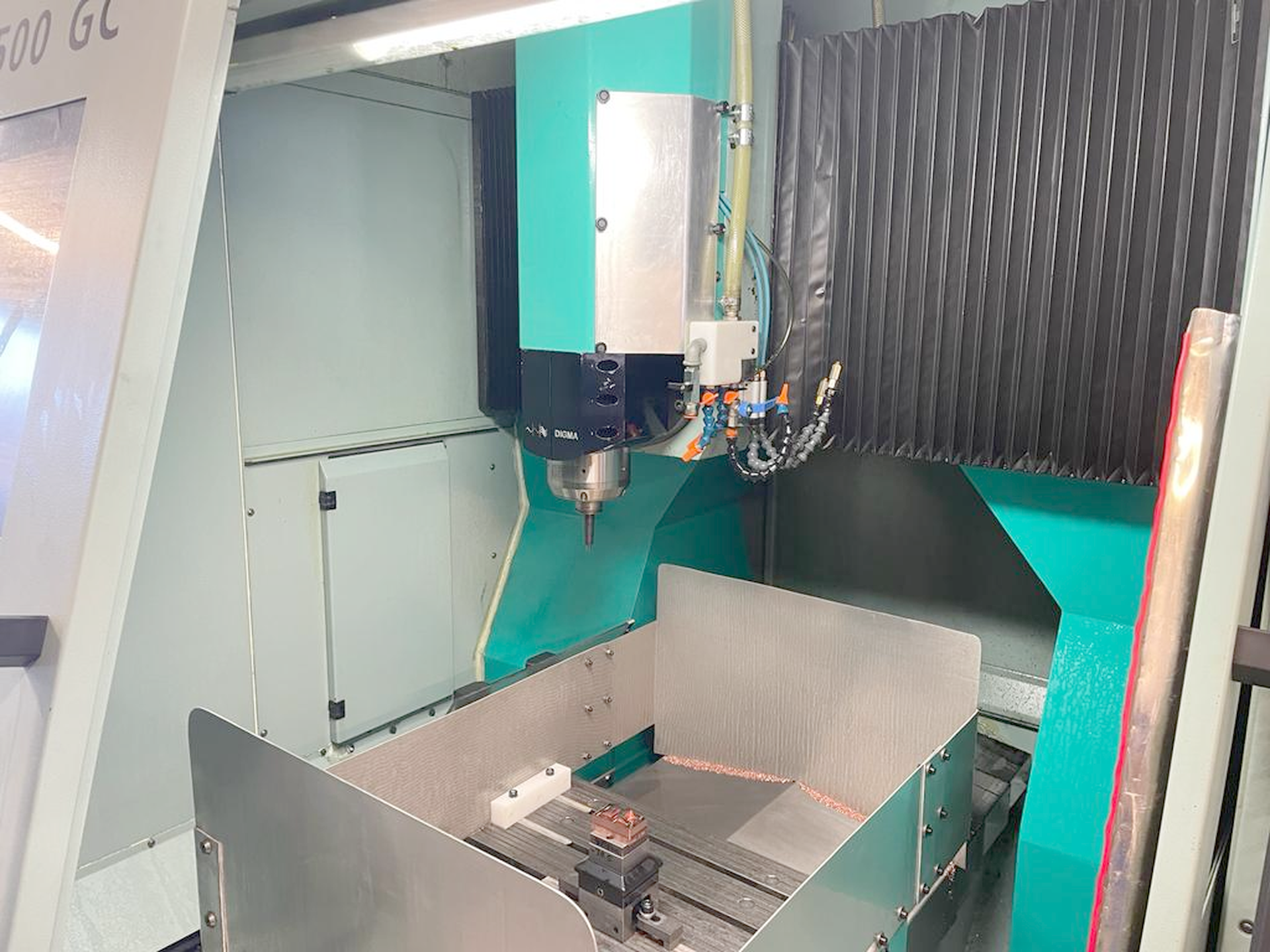

High frequency spindle: 42000 t/min.

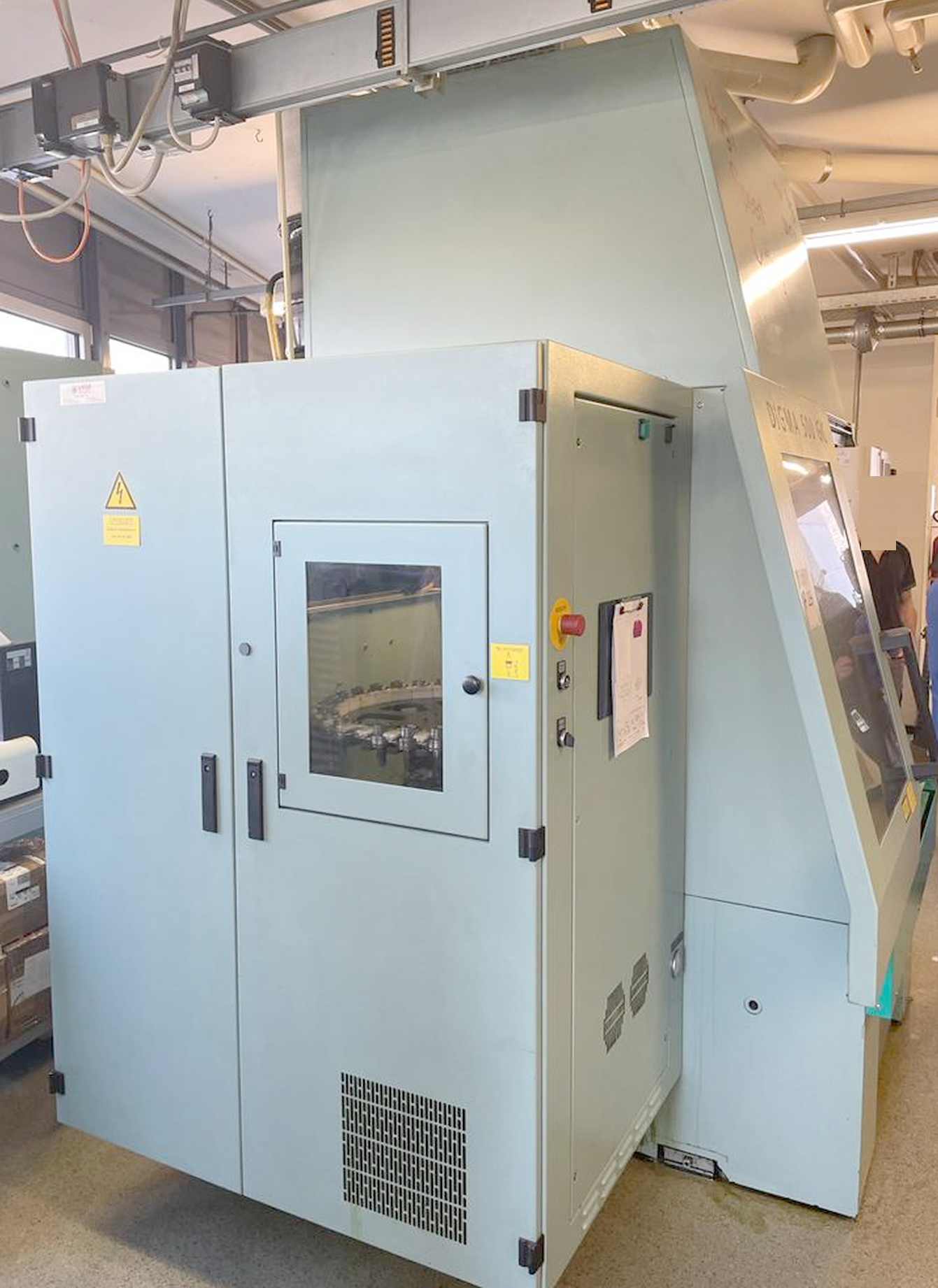

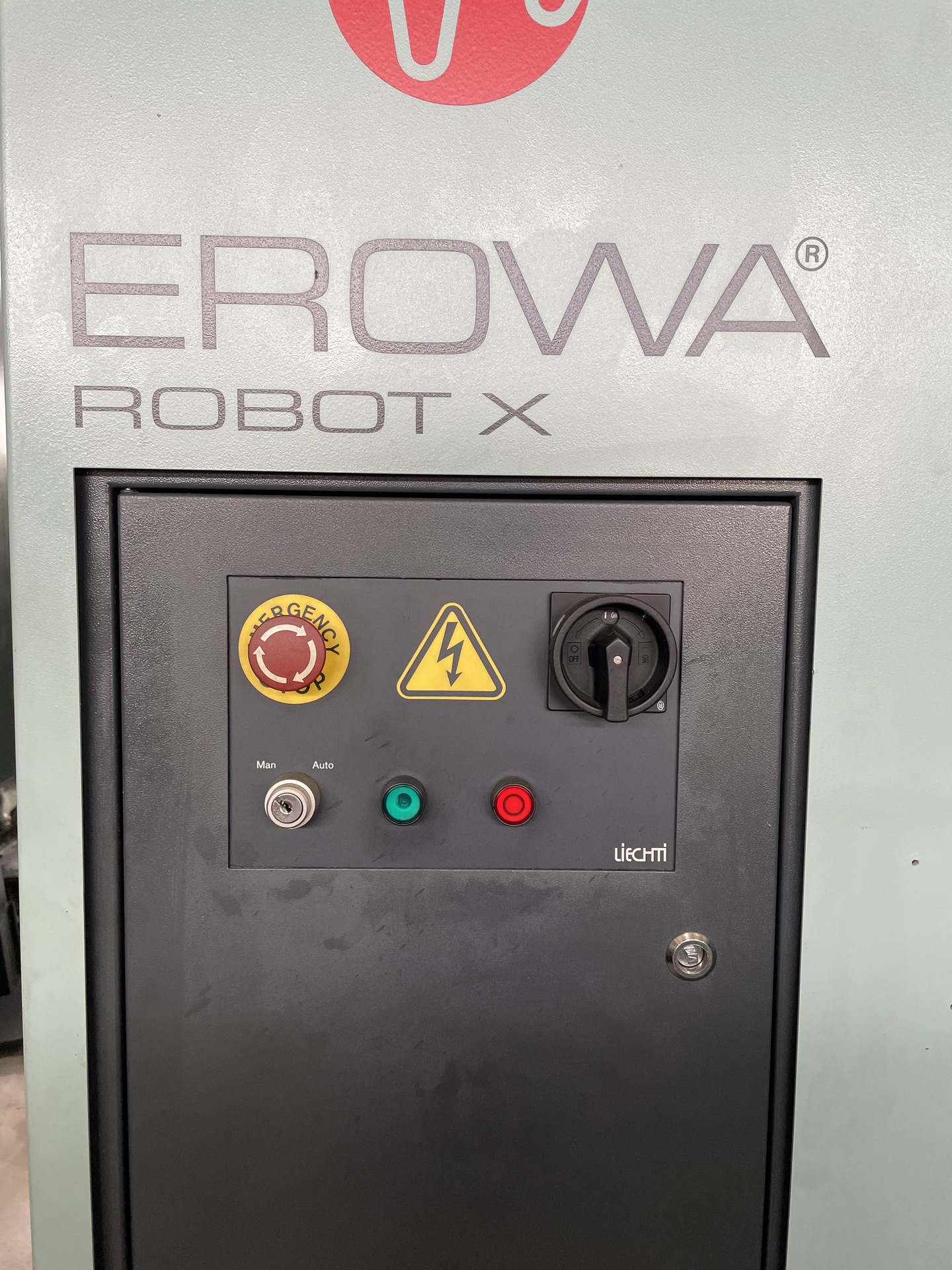

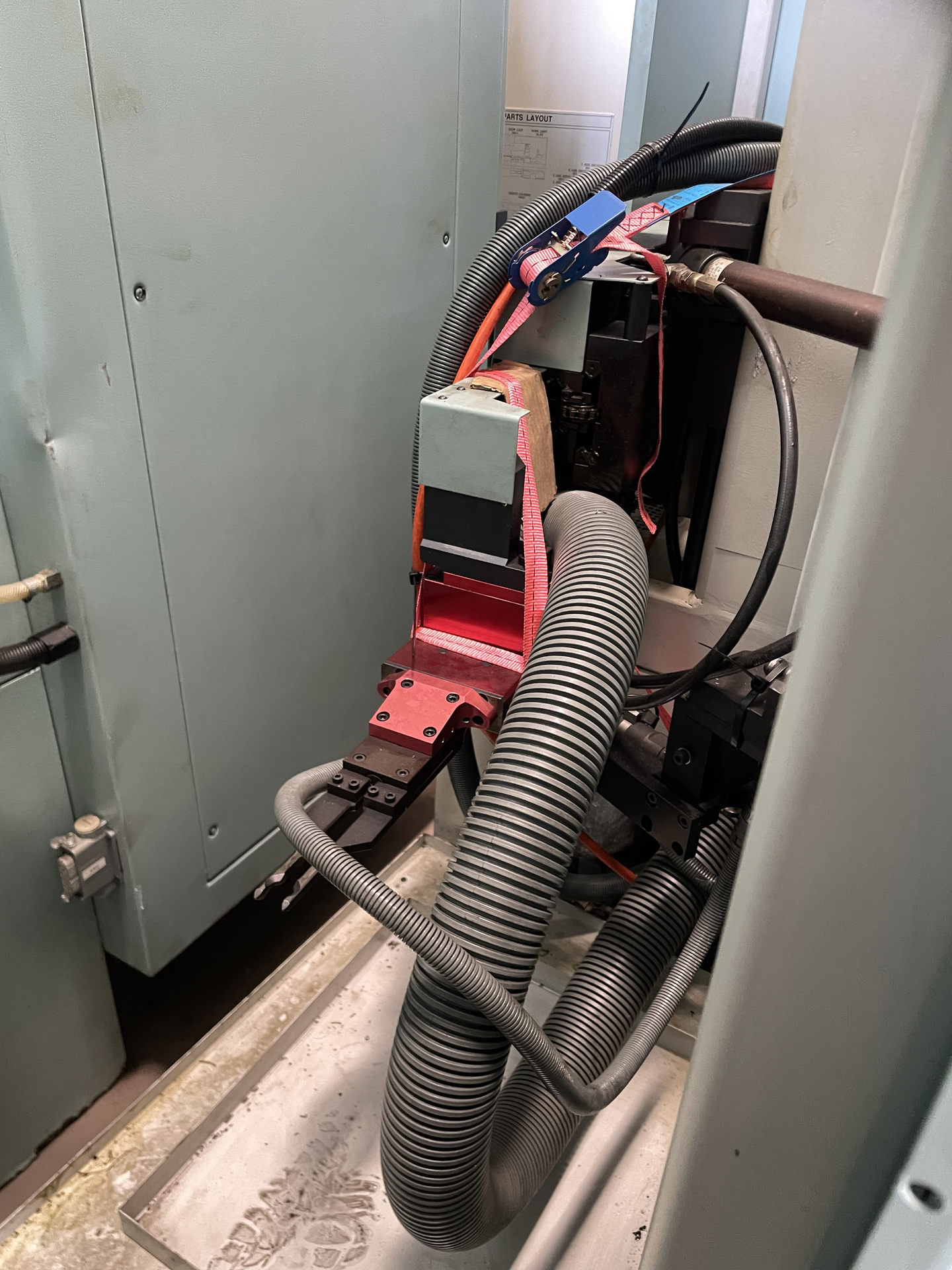

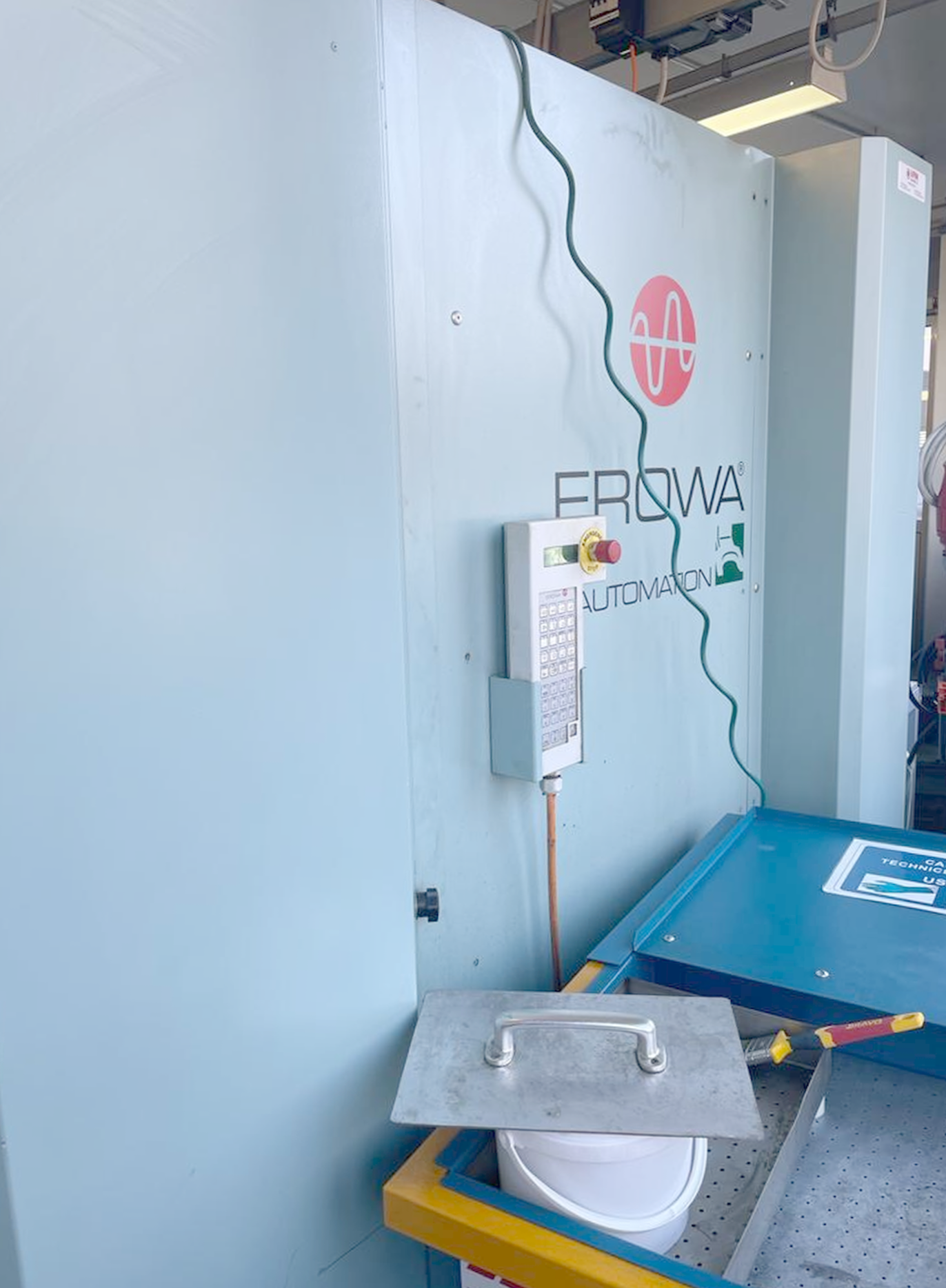

Workpiece loader: EROWA ROBOT X.

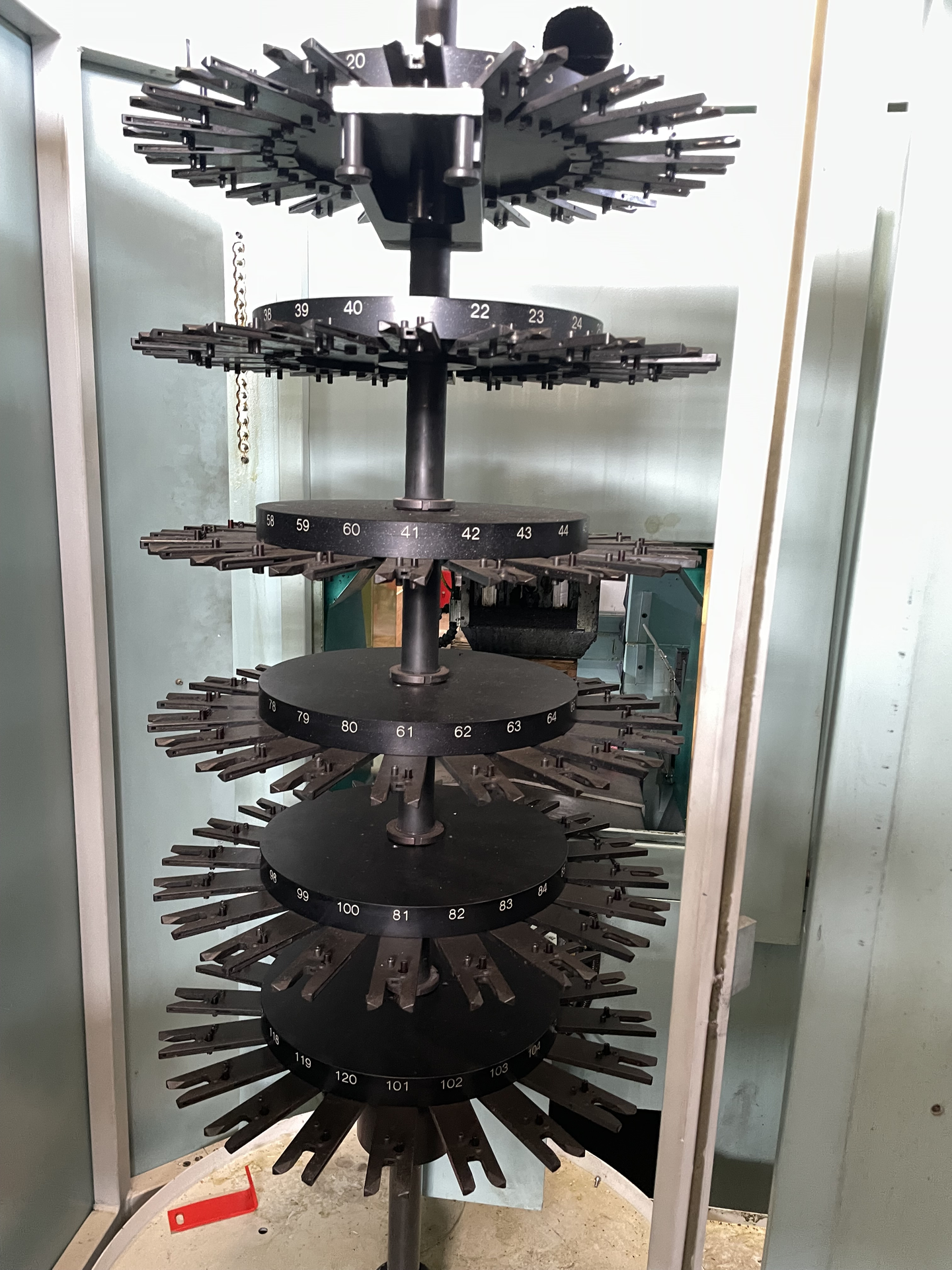

Number of positions: 120.
