MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Star
  • Model:

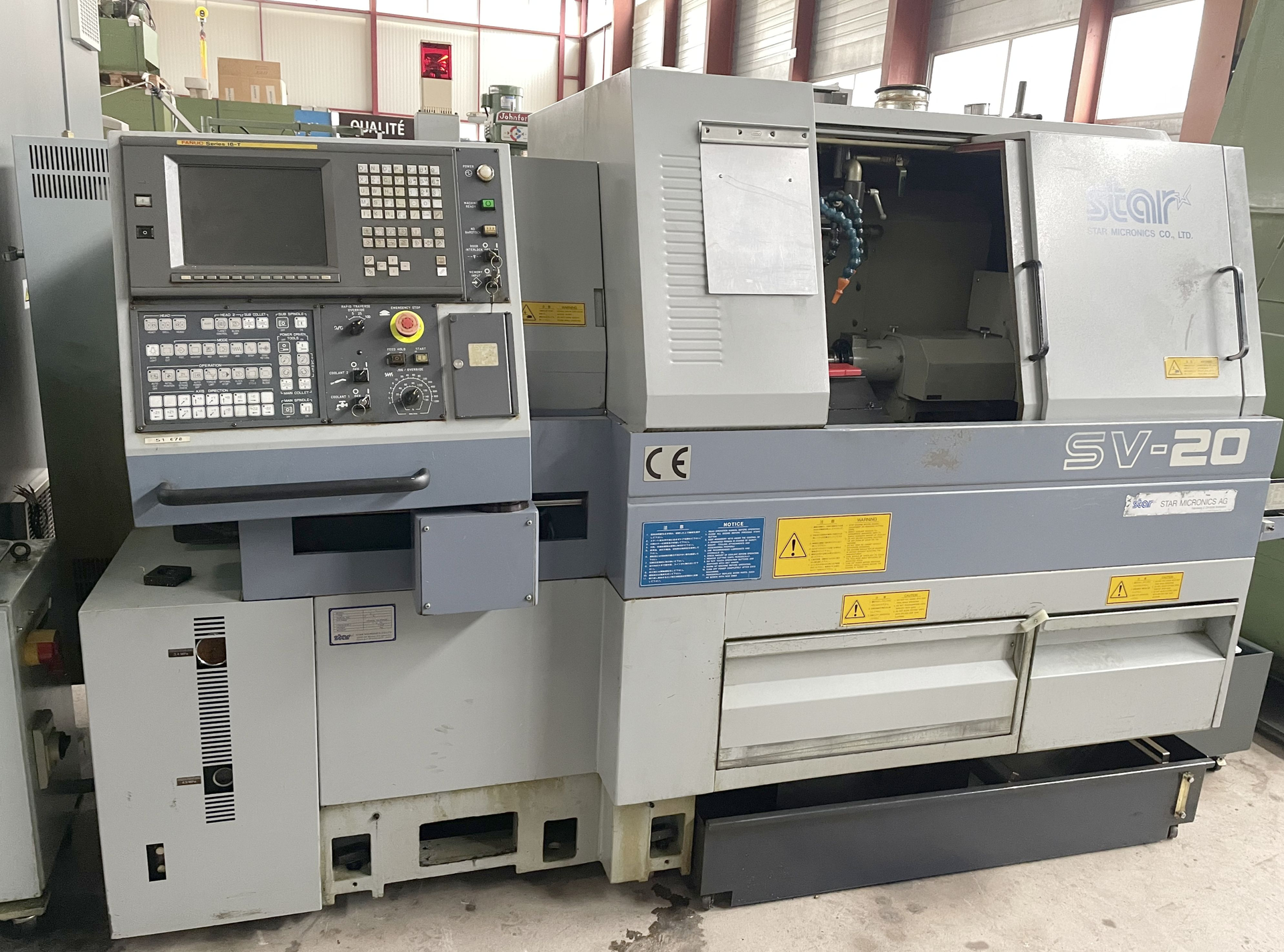

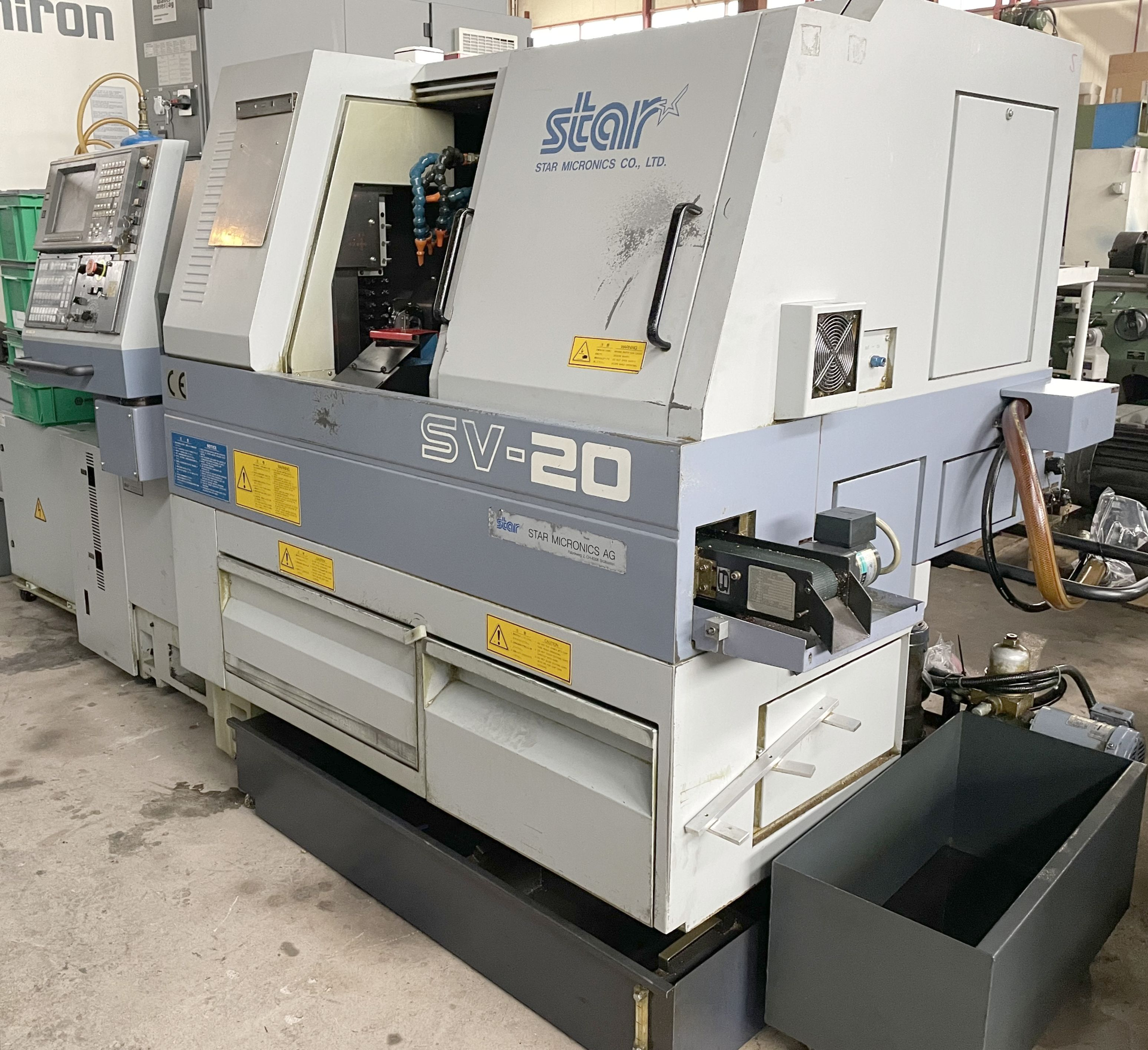

  • 022257 - STAR SV-20
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 9.
Number of spindles: 2.
Max. turning diameter: 20 mm.
Maximum turning length: 205 mm.
Internal spindle diameter: 26 mm.
from: mm/min.
up to: 10000 mm/min.
Number of positions: 8.
number of driven tools: 3.
Spindle speeds (turning tools): 6000 t/min.
Power of driven tools: 0.5 kW.
Max. tapping length: 75 mm.
Thread drill diameter: 10 M.
Back machining workpiece length max.: 150 mm.
number of tools: 5.
Max. drilling diameter: 14 mm.
Rapid traverse X: 15 m/min.
Rapid traverse Y: 15 m/min.
Rapid traverse Z: 18 m/min.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 3.7 kW.
Power of back spindle: 2.2 / 3.7 kW.
Air connect: 5 bar.
Total power required: 9 kVA.
Machine's weight about: 3400 kg.
Length: 2670 mm.
Width: 1375 mm.
Height: 1650 mm.

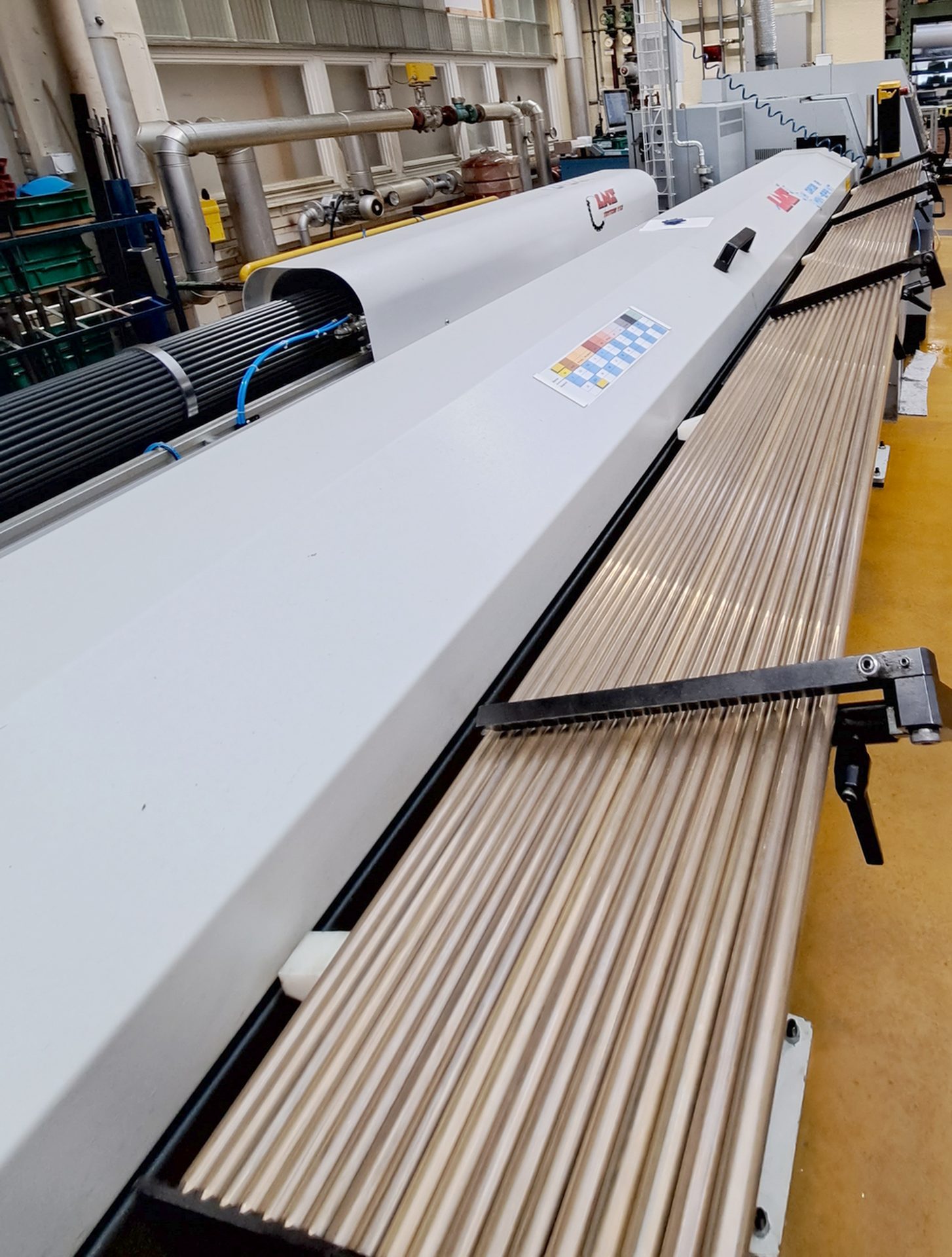

Bar feeder: LNS.
Type: MINI-SPRINT S2.
Coolant system: 170 l.
