MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • BELT SANDER A+S TYPE AS-10
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland

DESCRIPTION

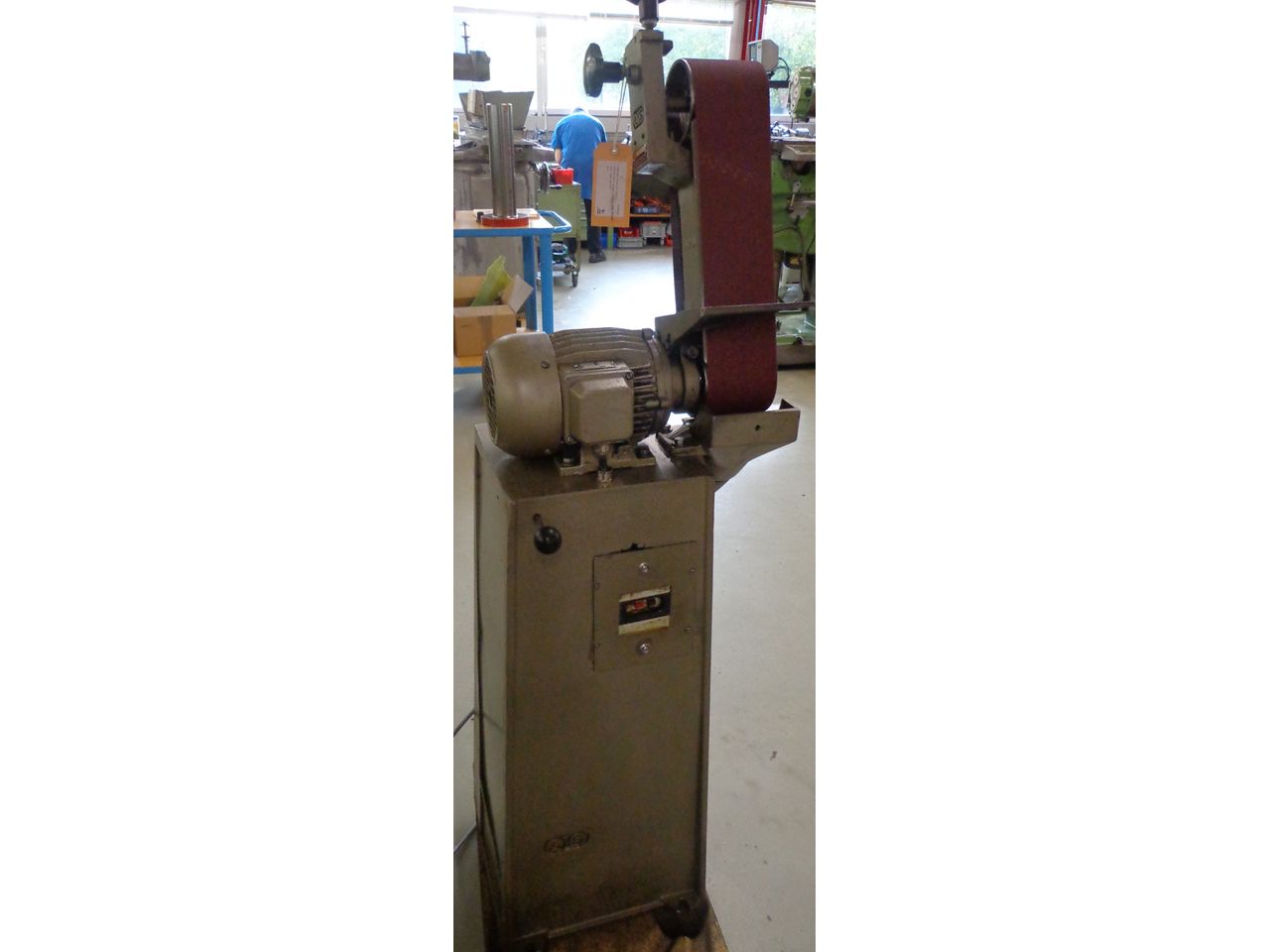

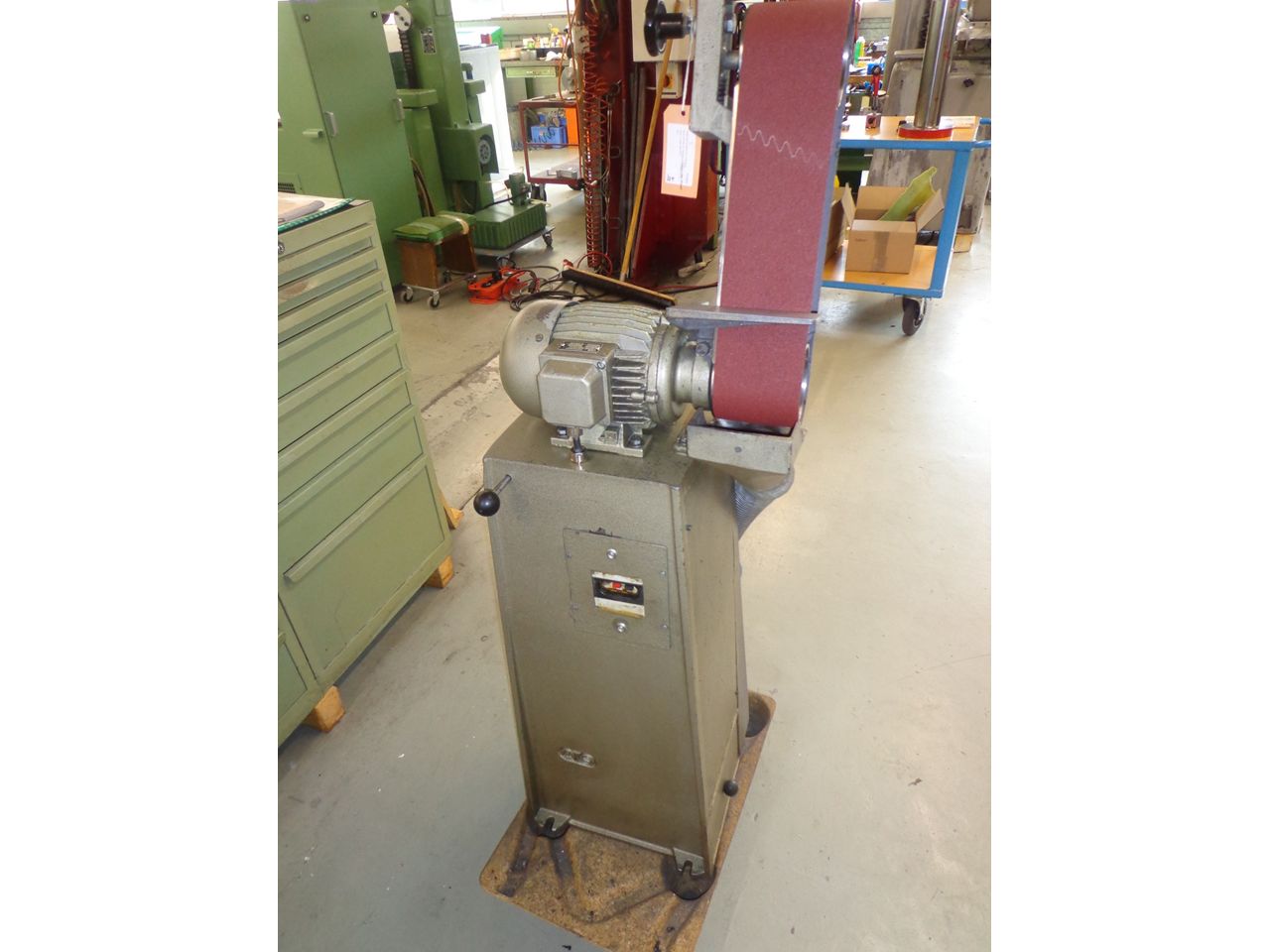

BELT SANDER "A+S" TYPE AS-10

Reference: 2170033

band 100x1000 mm., on base, with aspiration without filter motor 1 speed, 2800 min-1


Information

Manufacturing origin Swiss
Voltage 380/50/3
Netweight of bench model, approx. 24 kg
Netweight with cast stand. approx. 110 kg
Custom position 8460.2930

TECHNICAL DATA :

Belt width 100 mm
Belt length 1000 mm
Length of backing plate 290 mm
Motor, standard 3000 RPM 1 HP
Motor, two-speed 3000/1500 RPM 1/0,75 HP
Speed of grinding belt at 2850 RPM 15 m/sec
Pulley diameter 100 mm
errors and omissions excepted data given without obligation
