MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • JINN FA
  • Model:
  • AUTOMATIC CNC-LATHE JINN FA TYPE JSL-20AB
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland

DESCRIPTION

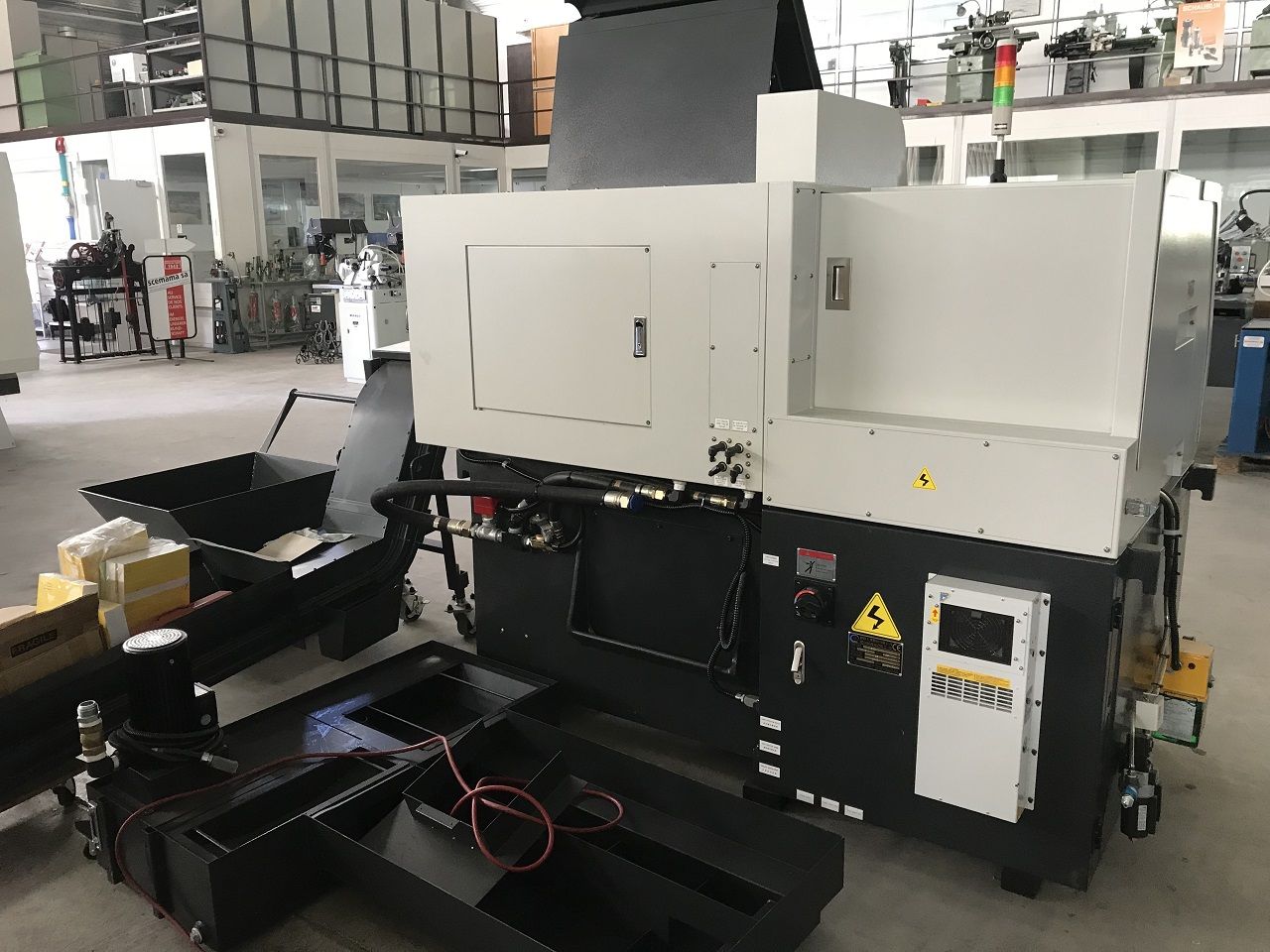

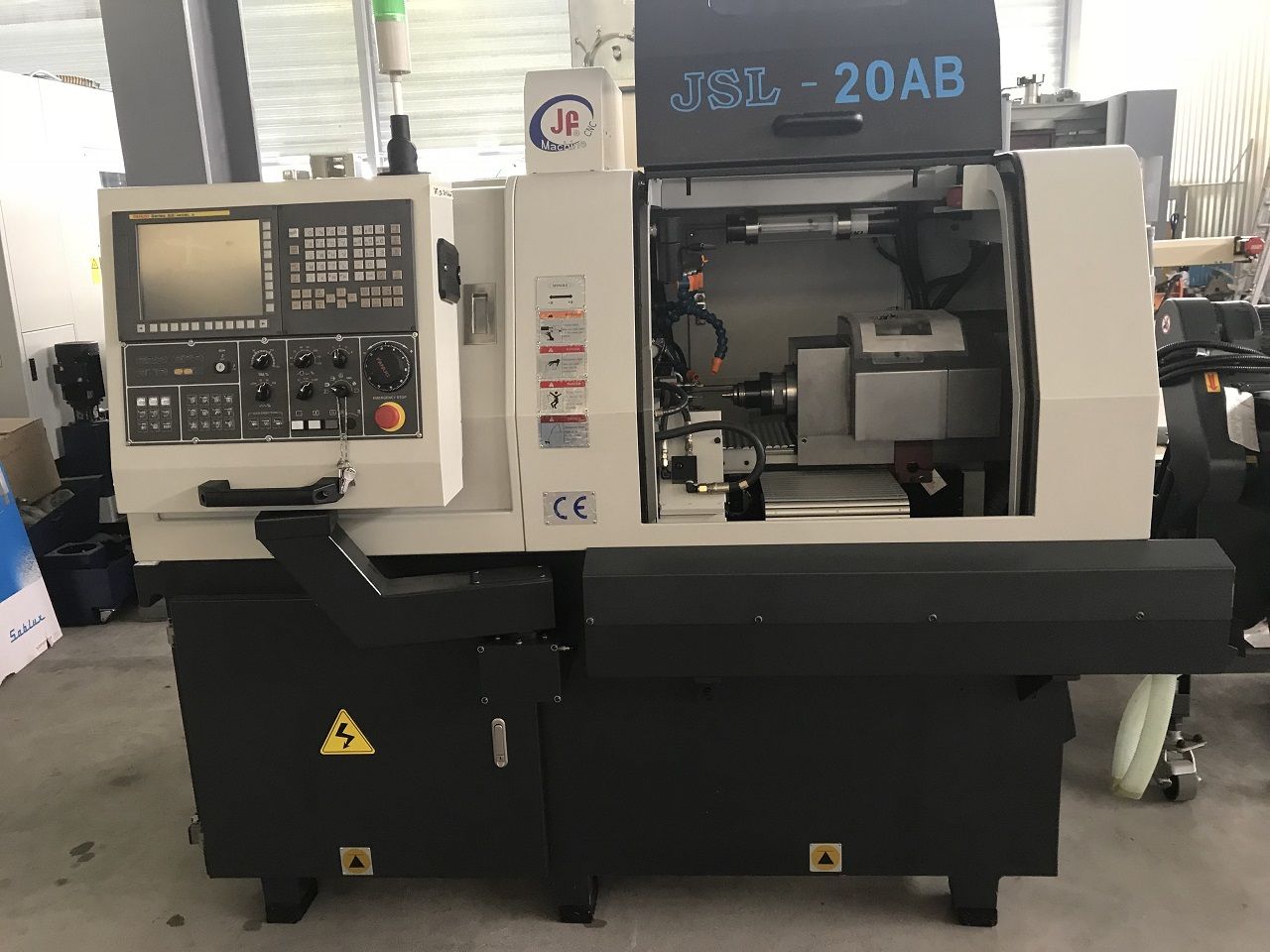

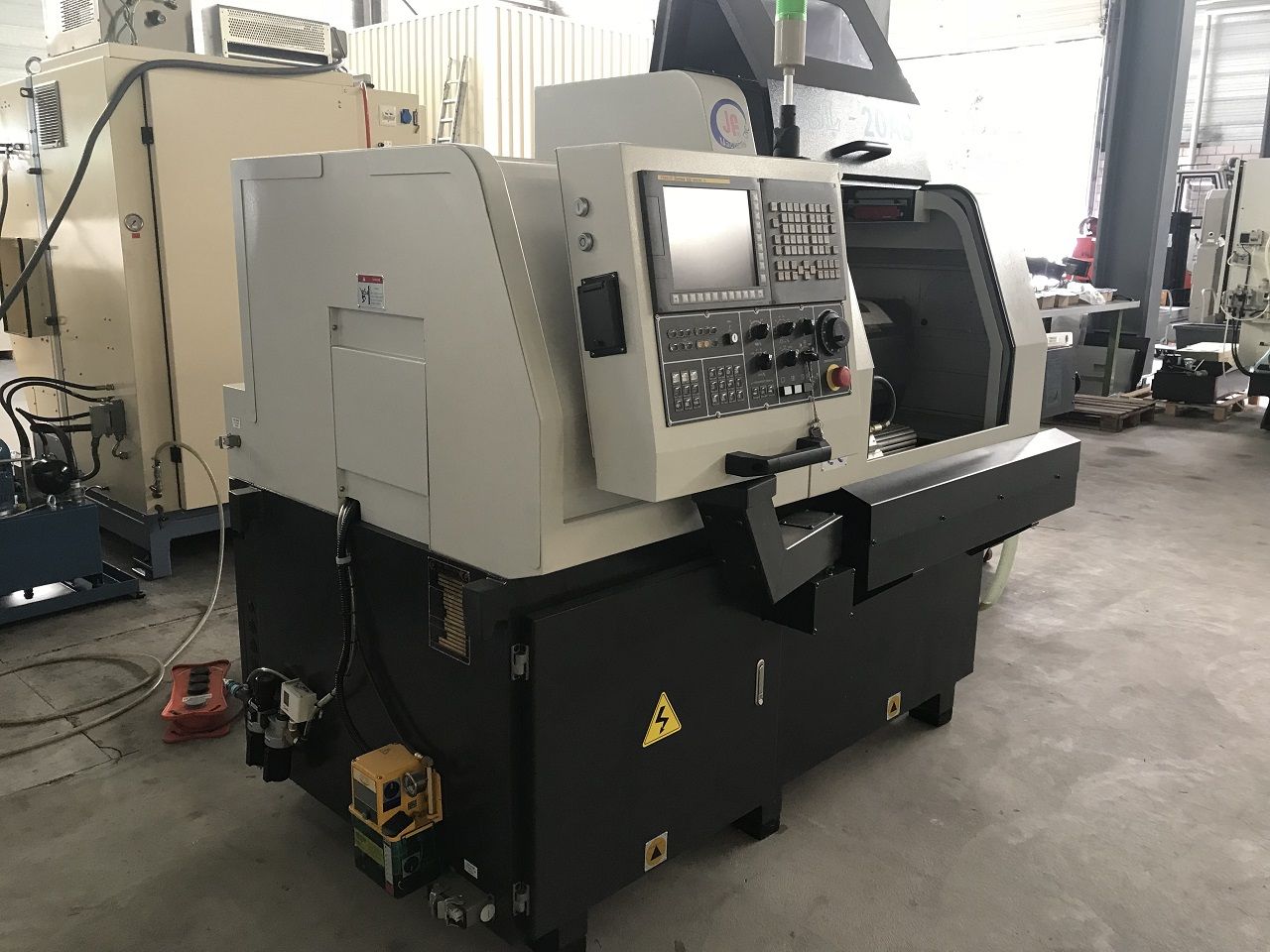

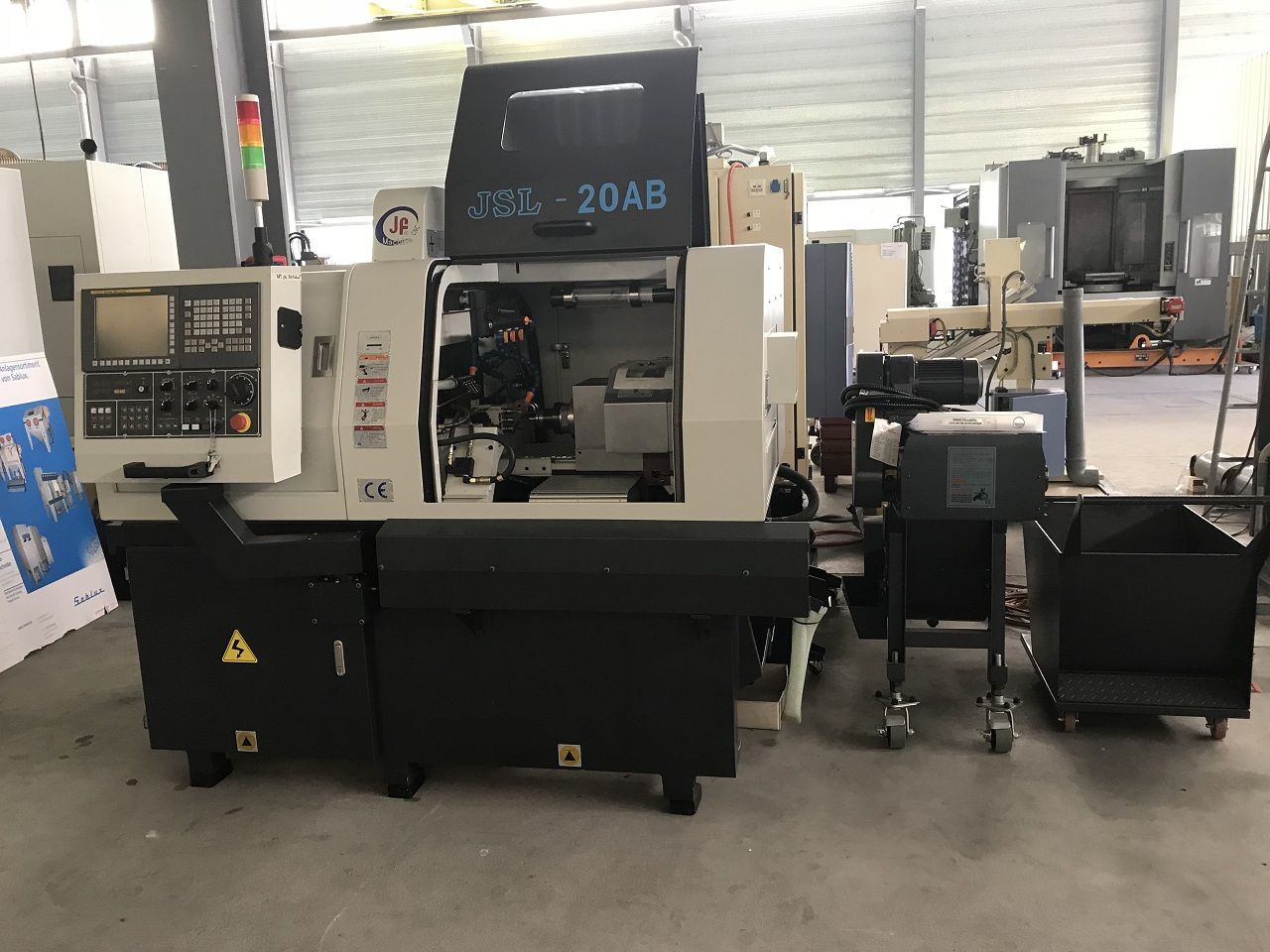

AUTOMATIC CNC-LATHE "JINN FA" TYPE JSL-20AB

New - Reference: 1120009

7 axes simultaneous, control Fanuc 32i-A



Information

Manufacturing number
Manufacturing year
Manufacturing originTaiwan
Voltage 400/50/3
Netweight 2400 kg
Custom position 8458.11 20
Colour
Dimensions 2605 x 1420 x 2150 mm

TECHNICAL DATA :

- max turning dia of main spindle 20 mm
- max turning dia of sub spindle 20 mm
- max turning length (fixed guide bush)200 mm
- max turning length (rotary guide bush)85 mm (option : 150 mm)
- max turning length (non guide bush)45 mm
- max drilling capacity of main spindle 10 mm
- max drilling capacity of sub spindle 10 mm
- max tapping capacity of main spindle M8
- max tapping capacity of sub spindle M8
- max cross drilling capacity 10 mm
- max cross tapping capacity M6
- number of external turning tools 8 pcs
- number of internal turning tools 5 pcs
- number of cross drillings 4 (option : 7)
- face tool holder (sub spindle)4 pcs
- size of tool12 x 12 x 90 mm
- number of axis controls 7 (X1/Y1/Z1/X2/Z2/C1/C2)
- bore of spindle 29 mm
- spindle speed range 200 ~ 8000 t/min
- rapid traverse X / Z24 m/min
- main spindle motor 3.7 kW
- sub spindle motor 2.2 kW
- motor axis X1 / Z10.5 / 0.75 kW
- motor axis Y0.75 kW
- cross drilling motor 0.75 kW
- end drilling motor 0.75 kW
- motor axes X2 / Z20.5 / 0.5 kW
- coolant motor 0.375 kW
- power requirement 15KVA
errors and omissions excepted data gived without obligation
